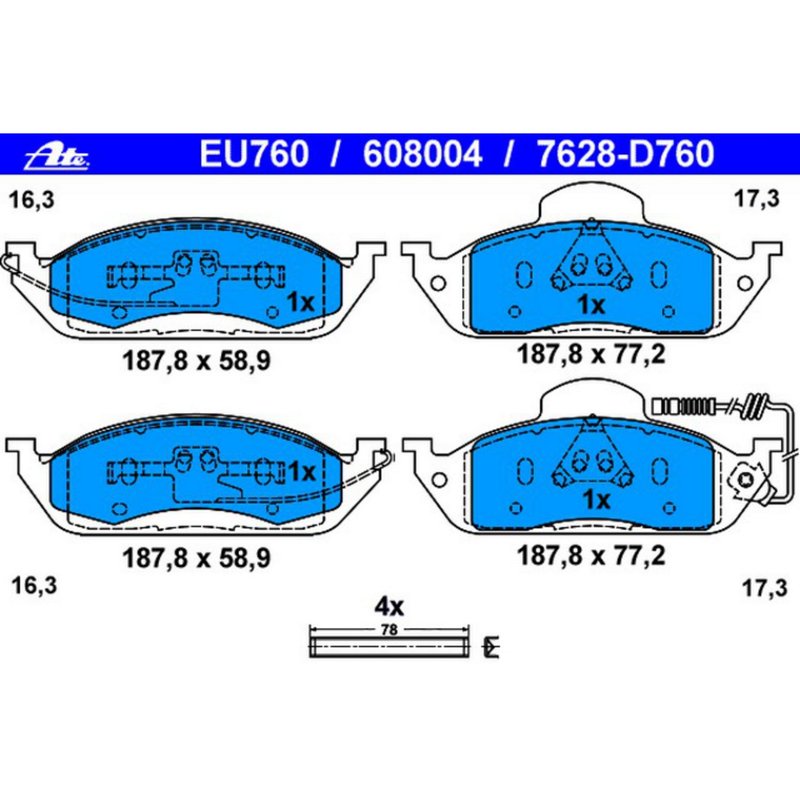

ATE 608004 Disc Brake Pad Set - Front
| Brand | ATE 608004 |
|---|---|
| Position | Front |
| Abutment Clips Included | Yes |
| Adhesive Backed Pad Shim | No |
| Backing Material | steel |
| Brake Lubricant Included | No |
| Chamfered Edges | Yes |
| ECE-R90 Certified | Yes |
| FMSI Number | 7628-D760 |
| Friction Material Attachment | Integrally Molded |
| Friction Material Composition | Semi-metallic |
| Friction Surface Scorched | No |
| Inner Pad Friction Material Thickness | 17.40 |
| Inner Pad Height | 77.30 |
| Inner Pad Width | 187.90 |
| Mounting Hardware Included | Yes |
| Outer Pad Friction Material Thickness | 16.40 |
| Outer Pad Height | 59.10 |
| Outer Pad Width | 187.90 |
| Pad Quantity | 4 |
| Pad Shims Included | No |
| Pad Wear Sensor Included | Yes |
| Pad Wear Sensor Type | Electronic |
| Prepared For Pad Wear Sensor | No |
| Slotted | No |
| Product line | ATE Original Disc Brake Pads |
| Fits | Mercedes-Benz · 10 vehicles |
Semi-metallic pads. Balanced friction for confident braking performance.
Noise damping sheets. Helps keep braking quieter and more refined.
Hardware included. Comes with abutment clips for easier installation.
Cross-references Brembo P50039N, Quality-Built 16410 and Raybestos Brakes MGD760MH for the same application. See all 30.
ATE Original Front Brake Pads for Mercedes-Benz
ATE Original Disc Brake Pads, part number 608004, are built for front brake service on select Mercedes-Benz ML applications. This disc brake pad set uses a semi-metallic friction material, chamfered edges, and an electronic pad wear sensor to support consistent braking performance and service monitoring.
Fits 2003-2005 Mercedes-Benz ML350, front. Fits 1998-2003 Mercedes-Benz ML320, front. Fits 1999 Mercedes-Benz ML430, front.
Key Features
- Semi-metallic friction material for dependable stopping performance
- Electronic pad wear sensor included for wear monitoring
- Chamfered edges to help promote smooth brake engagement
- Steel backing material with integrally molded friction attachment
- Mounting hardware and abutment clips included
- ECE-R90 certified for regulated brake pad performance
- Outer pad thickness: 16.40 mm; inner pad thickness: 17.40 mm
- Front axle application for Mercedes-Benz ML350, ML320, and ML430
Product Details
ATE Original Disc Brake Pads are part of the ATE Original Disc Brake Pads line, a range developed with multiple pad compounds to cover a wide variety of vehicle braking requirements. For this application, the 608004 pad set is engineered with noise-reducing underlayers and damping sheets, along with a steel backing plate and chamfered design to help reduce brake noise and support even contact at the rotor. The pad wear sensor is electronic, and the set is prepared for front brake use on Mercedes-Benz ML350, ML320, and ML430 models listed in the fitment data.
This part cross-references Brembo P50039N and Wagner Brake MX760 for the same application. Part number 608004 is also referenced in OE-style and aftermarket catalogs for these Mercedes-Benz front brake pad applications.
Common Brake Issues Addressed
- Squealing or brake noise during normal stopping
- Brake wear warning light triggered by pad sensor wear
- Reduced braking response from worn front pads
- Uneven pad contact caused by aged or damaged pads
- Brake vibration related to worn friction material
Installation Notes
Verify rotor condition, caliper operation, and sensor routing before installation. Replace worn hardware only if needed and confirm the pad shape, wear sensor connection, and front axle fitment against the vehicle before service. After installation, follow the proper bedding-in procedure for semi-metallic brake pads to help establish consistent friction transfer.
Quality Assurance
ATE states that its brake pads are validated through independent testing for friction performance and are manufactured to reduce noise through integrated damping features. This pad set is ECE-R90 certified, supporting regulated brake pad quality for the listed Mercedes-Benz applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Mercedes-Benz | ML350 | Front | Compatible with various vehicle models, this disc brake pad set.; ATE Original Disc Brake Pads |
| 2004 | Mercedes-Benz | ML350 | Front | Compatible with various vehicle models, this disc brake pad set.; ATE Original Disc Brake Pads |
| 2003 | Mercedes-Benz | ML320 | Front | Compatible with various vehicle models, this disc brake pad set.; ATE Original Disc Brake Pads |
| 2003 | Mercedes-Benz | ML350 | Front | Compatible with various vehicle models, this disc brake pad set.; ATE Original Disc Brake Pads |
| 2002 | Mercedes-Benz | ML320 | Front | Compatible with various vehicle models, this disc brake pad set.; ATE Original Disc Brake Pads |
| 2001 | Mercedes-Benz | ML320 | Front | Compatible with various vehicle models, this disc brake pad set.; ATE Original Disc Brake Pads |
| 2000 | Mercedes-Benz | ML320 | Front | Compatible with various vehicle models, this disc brake pad set.; ATE Original Disc Brake Pads |
| 1999 | Mercedes-Benz | ML320 | Front | Compatible with various vehicle models, this disc brake pad set.; ATE Original Disc Brake Pads |
| 1999 | Mercedes-Benz | ML430 | Front | Compatible with various vehicle models, this disc brake pad set.; ATE Original Disc Brake Pads |
| 1998 | Mercedes-Benz | ML320 | Front | Compatible with various vehicle models, this disc brake pad set.; ATE Original Disc Brake Pads |
