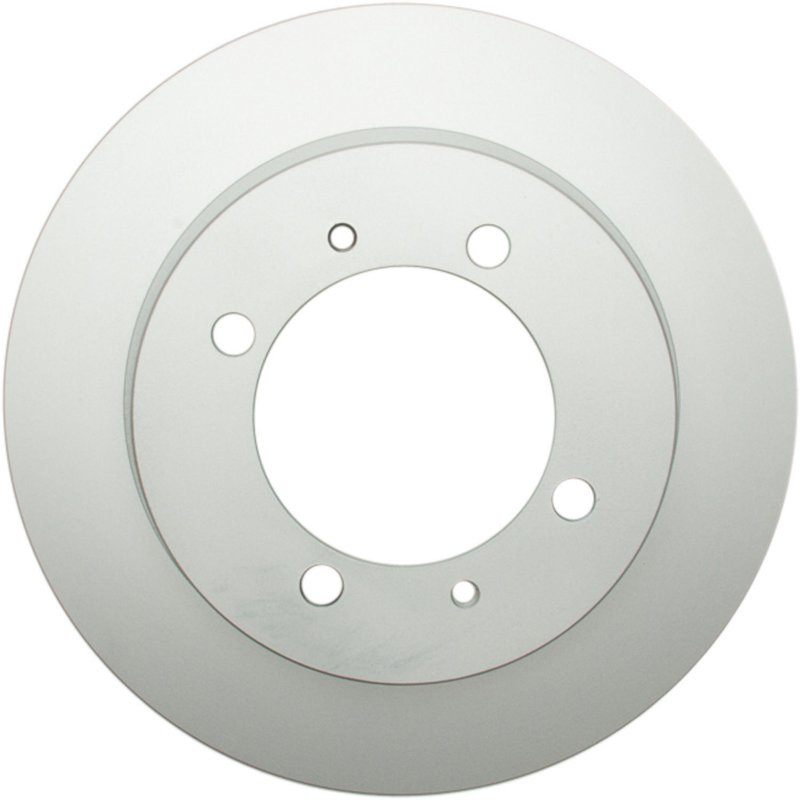

ATE SP10229 Disc Brake Rotor - Rear

ATE Coated Rear Rotor for Volvo S40 and V40

ATE SP10229 is a solid disc brake rotor built for rear brake service on select Volvo S40 and Volvo V40 models from 2000-2004. It features a rust resistant coating and a non-directional finish to support consistent braking performance and cleaner service life.

Key Features

• Part number SP10229
• ATE Coated Single Pack Rotor
• Solid, full cast disc brake rotor
• Rust resistant coating for added corrosion protection
• Non-directional disc finish
• 260.00 mm outside diameter
• 10.00 mm nominal thickness
• 4 bolt hole diameter
• 2.295 in height
• Metal construction

Product Line Details

ATE Coated Single Pack Rotor products are part of ATE’s premium brake portfolio. ATE, the Continental Automotive Systems brake brand, applies OE-level engineering and manufacturing experience to aftermarket brake components, with an emphasis on first-quality materials and coated brake disc technology.

Detailed Description

ATE SP10229 is a rear brake rotor for 2000-2004 Volvo S40 and 2000-2004 Volvo V40 applications. The solid, full cast design and coated surface help resist rust on exposed areas while maintaining a clean, service-ready braking surface. This rotor meets or exceeds OEM specifications for disc brake rotors in North America for the listed Volvo applications. This part cross-references Bosch 52011353 and Brembo 08.7042.11 for the same application.

Common Brake Issues This Rotor Can Address

• Rear brake pulsation from rotor wear or uneven surface condition
• Corrosion on the rotor hat and non-friction surfaces
• Brake noise caused by worn or uneven rear rotors
• Reduced braking consistency from rotor thickness loss
• Service replacement for a damaged rear disc brake rotor

Installation Notes and Tips

• Confirm rear fitment by matching the vehicle year, make, and model to the listed applications.
• Inspect pads, caliper hardware, and hub condition before installation.
• Clean the rotor friction surfaces before use to remove any protective residue.
• Verify rotor thickness and mounting dimensions against the original part before installation.

Quality Assurance

ATE brake parts are backed by Continental Automotive Systems’ OE brake manufacturing experience and are produced to a higher standard than conventional replacement parts. The coated rotor design reflects ATE’s focus on premium materials and process control for aftermarket brake service.
