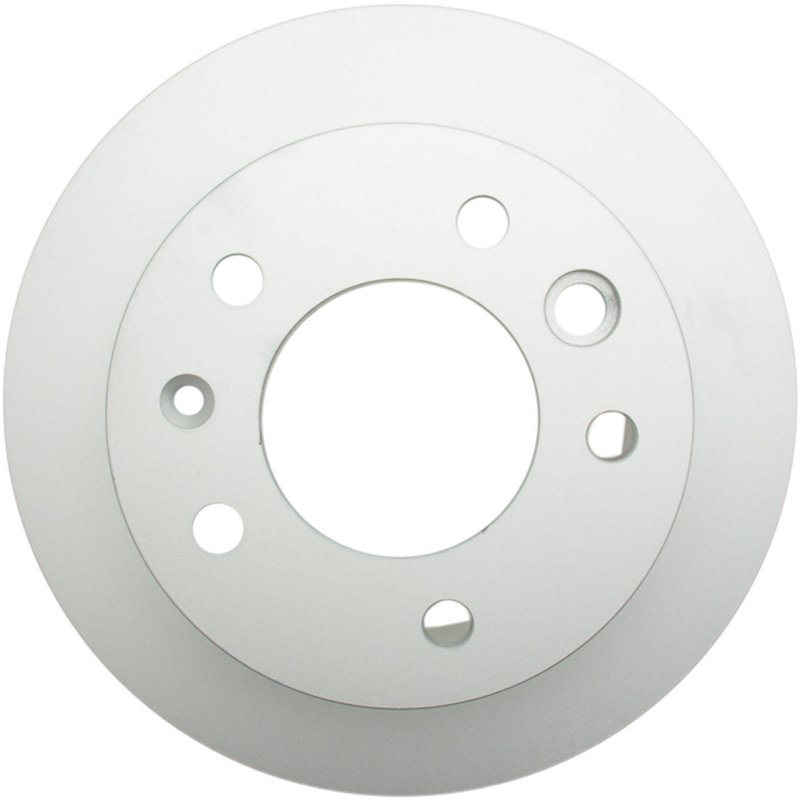

ATE SP22161 Disc Brake Rotor - Front

ATE Coated Front Brake Rotor for Sprinter

The ATE Coated Single Pack Rotor SP22161 is a vented front disc brake rotor built for 2003-2006 Dodge Sprinter 2500 and 2003-2006 Dodge Sprinter 3500 applications. It combines a full cast construction with a rust-resistant coating and non-directional finish for consistent service performance.

ATE, the brake brand of Continental Automotive Systems, applies OE-level engineering and manufacturing insight to its aftermarket brake components. The ATE Coated Single Pack Rotor line focuses on coated brake discs that use first-quality materials and precise process control for dependable replacement fitment.

Key Features

• Part number SP22161
• Fits 2003-2006 Dodge Sprinter 2500, front
• Fits 2003-2006 Dodge Sprinter 3500, front
• Vented disc brake rotor with 276.00 mm outside diameter
• 22.00 mm nominal thickness
• Full cast metal construction
• Rust-resistant coating for added surface protection
• Non-directional disc finish
• 5-bolt hole pattern
• Height: 3.401

Detailed Description

ATE SP22161 is a front brake rotor for Dodge Sprinter 2500 and Dodge Sprinter 3500 models from 2003 through 2006. The vented design, 276.00 mm outside diameter, and 22.00 mm nominal thickness match the listed OE-style application requirements, while the coated surface helps protect the rotor during storage and early service life. If you are replacing a worn front rotor on a Dodge Sprinter 2500 or Dodge Sprinter 3500, this part number SP22161 provides a direct-fit option for the specified vehicles.

This part cross-references Brembo 09.9618.14 and Raybestos Brakes 980157 for the same application.

What This Rotor Helps Address

• Front brake pulsation caused by rotor wear or thickness variation
• Brake noise related to uneven rotor surfaces
• Reduced braking consistency from heat-affected rotor faces
• Surface rust on replacement rotors before installation
• Fitment issues when replacing the front rotor on a Dodge Sprinter 2500 or Dodge Sprinter 3500

Installation Notes and Tips

Verify rotor dimensions, bolt hole pattern, and front axle fitment before installation. Confirm wheel clearance, since the listed application notes specify compatibility with 15-inch wheels on the Dodge Sprinter 2500. Clean the hub mounting surface thoroughly to help prevent runout and uneven rotor seating. Follow the vehicle manufacturer’s service procedures for torque, bedding, and brake inspection after installation.

Quality Assurance

ATE brake parts are produced with engineering and manufacturing standards associated with Continental Automotive Systems, a major original equipment brake system supplier. The coated rotor design reflects ATE’s focus on premium materials and controlled production for aftermarket brake service.
