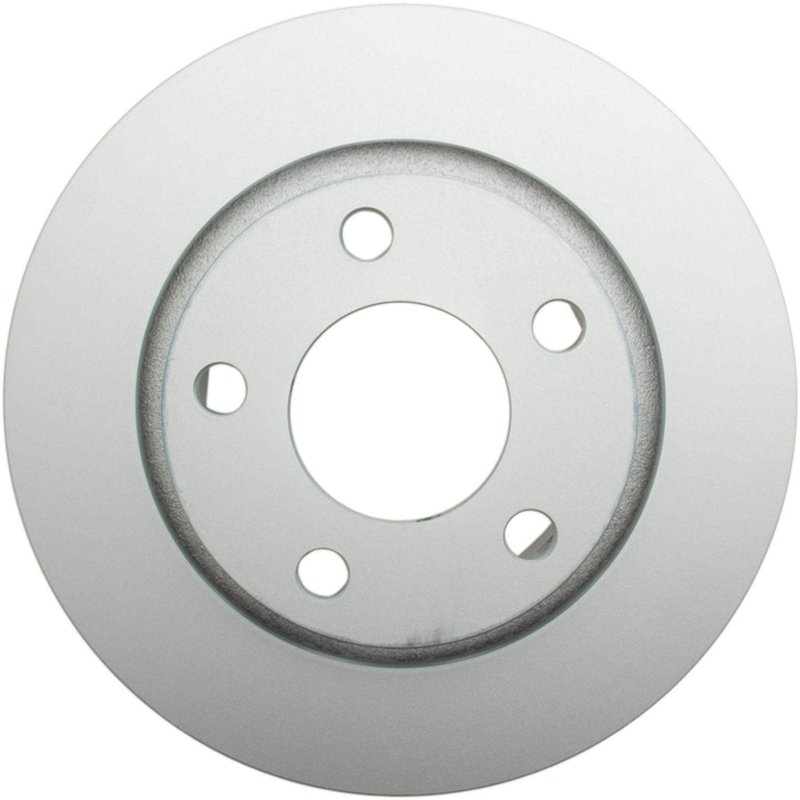

ATE SP22222 Disc Brake Rotor - Rear
| Brand | ATE SP22222 |
|---|---|
| Position | Rear |
| Bolt Hole Diameter | 5 |
| Construction | Full Cast |
| Disc Finish | Non-Directional |
| Height | 2.484 |
| Material | Metal |
| Nominal Thickness | 22.00 |
| Outside Diameter | 268.00 |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Product line | ATE Coated Single Pack Rotor |
| Fits | Audi and Volkswagen · 10 vehicles |
Coated rotor. Helps resist rust for a cleaner look and longer-lasting finish.
Vented design. Promotes airflow to help manage heat during braking.
OE-grade engineering. Built with Continental Automotive Systems brake expertise.
Cross-references Brembo 08.9083.11, Raybestos Brakes 980003 and Walker Exhaust 53969 for the same application. See all 33.
ATE Coated Rear Brake Rotor
The ATE Coated Single Pack Rotor SP22222 is a vented disc brake rotor built with a full cast construction and a rust-resistant coating for dependable rear braking performance. It is engineered to meet or exceed North American OEM specifications for select Audi and Volkswagen applications, including Audi A6 Quattro, Audi S6, and Volkswagen Passat rear brake service.
Key Features
- Part number SP22222
- ATE Coated Single Pack Rotor line with corrosion-resistant coating
- Vented rotor design for rear disc brake applications
- Full cast metal construction
- Non-directional disc finish
- 268 mm outside diameter
- 22.00 nominal thickness
- 5-bolt hole pattern
- 2.484 height
Product Details
ATE, the aftermarket brake brand of Continental Automotive Systems, applies OE-level engineering and manufacturing insight to this rotor. The coated surface helps resist rust on exposed areas, while the vented design supports heat management in rear braking systems. This rotor is a direct-fit choice for drivers searching for a rear brake rotor for 2000-2004 Audi A6 Quattro, 2002-2004 Volkswagen Passat, or 2002-2003 Audi S6. The SP22222 part number is also useful when cross-referencing replacement brake rotors for the same application.
Common Problems This Rotor Can Address
- Rear brake pulsation caused by rotor wear or thickness variation
- Brake noise related to uneven rotor surfaces
- Visible rust on the rotor hat and non-friction surfaces
- Reduced braking consistency from heat-stressed rear rotors
- Service replacement for worn OE-style rear brake rotors
Installation Notes and Tips
Verify rotor diameter, thickness, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent runout and uneven pad contact. Follow the vehicle manufacturer’s torque specifications and bedding procedure after installation. This rotor fits 2000-2004 Audi A6 Quattro, rear; 2002-2004 Volkswagen Passat, rear; and 2002-2003 Audi S6, rear.
Quality Assurance
ATE brake parts are backed by Continental Automotive Systems’ OE brake manufacturing experience and are produced to a higher standard than conventional aftermarket replacements. The coated rotor design reflects ATE’s focus on first-quality materials and consistent brake performance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Audi | A6 Quattro | Rear | Meets or exceeds North American OEM specifications; 269mm diameter rotor.; ATE Coated Single Pack Rotor |
| 2004 | Volkswagen | Passat | Rear | Meets or exceeds North American OEM specifications; 269mm diameter rotor.; ATE Coated Single Pack Rotor |
| 2003 | Audi | A6 Quattro | Rear | Meets or exceeds North American OEM specifications; 269mm diameter rotor.; ATE Coated Single Pack Rotor |
| 2003 | Audi | S6 | Rear | Meets or exceeds OEM specifications for disc brake rotors in North America.; ATE Coated Single Pack Rotor |
| 2003 | Volkswagen | Passat | Rear | Meets or exceeds North American OEM specifications; 269mm diameter rotor.; ATE Coated Single Pack Rotor |
| 2002 | Audi | A6 Quattro | Rear | Meets or exceeds North American OEM specifications; 269mm diameter rotor.; ATE Coated Single Pack Rotor |
| 2002 | Audi | S6 | Rear | Meets or exceeds OEM specifications for disc brake rotors in North America.; ATE Coated Single Pack Rotor |
| 2002 | Volkswagen | Passat | Rear | Meets or exceeds North American OEM specifications; 269mm diameter rotor.; ATE Coated Single Pack Rotor |
| 2001 | Audi | A6 Quattro | Rear | Meets or exceeds North American OEM specifications; 269mm diameter rotor.; ATE Coated Single Pack Rotor |
| 2000 | Audi | A6 Quattro | Rear | Meets or exceeds North American OEM specifications; 269mm diameter rotor.; ATE Coated Single Pack Rotor |
