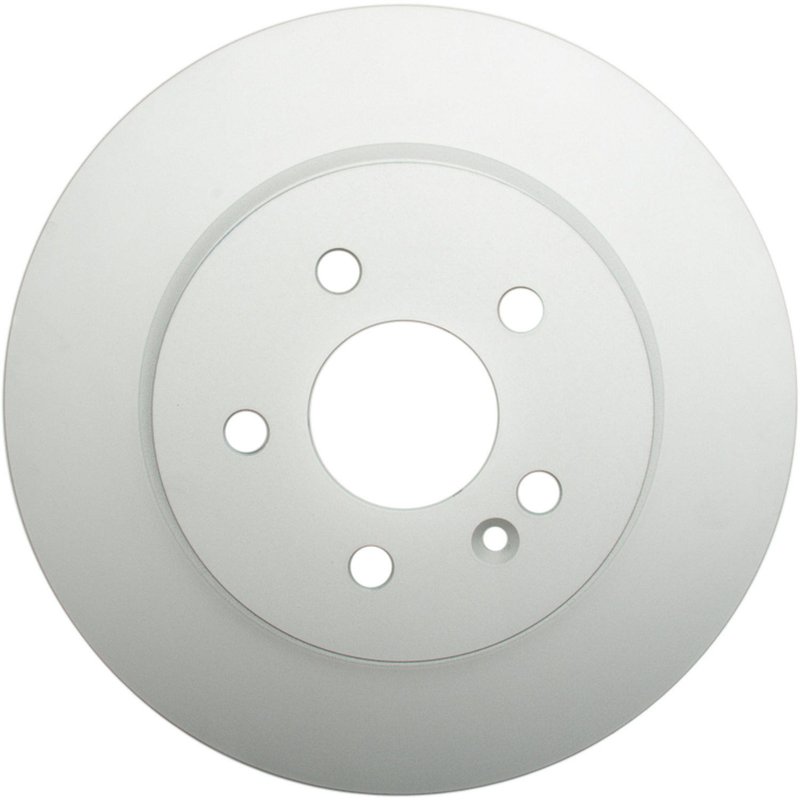

ATE SP26116 Disc Brake Rotor - Front

ATE Coated Front Brake Rotor for Mercedes-Benz ML

The ATE Coated Single Pack Rotor SP26116 is a front disc brake rotor built for select Mercedes-Benz ML applications. It uses a full cast, vented construction with a rust-resistant coating and a non-directional finish to support consistent braking performance and cleaner service life.

Key Features

• Part number SP26116 from ATE
• Front disc brake rotor for select Mercedes-Benz ML models
• Vented, full cast rotor construction
• Rust resistant coating for added corrosion protection
• Non-directional disc finish
• 303.00 mm outside diameter
• 26.00 mm nominal thickness
• 5 bolt hole diameter
• 2.381 in height

Product Details

ATE is the brake brand of Continental Automotive Systems and draws on original equipment brake system experience used across major vehicle manufacturers. The SP26116 coated rotor reflects that background with a premium aftermarket design focused on material quality, dimensional accuracy, and corrosion resistance. This rotor is a direct fit for 1998-2003 Mercedes-Benz ML320 front, 1999 Mercedes-Benz ML430 front, and 2003-2005 Mercedes-Benz ML350 front applications. This part cross-references Bosch 36010930 and Brembo 09.7823.11 for the same application.

Common Brake Issues This Rotor Can Address

• Front brake pulsation caused by rotor wear or thickness variation
• Brake noise related to uneven rotor surfaces
• Corrosion on exposed rotor surfaces
• Reduced braking consistency from worn vented rotors
• Service replacement needs for Mercedes-Benz ML320, ML430, and ML350 front brake systems

Installation Notes and Tips

Verify rotor dimensions, hub condition, and pad compatibility before installation. Clean the hub mounting surface thoroughly to help prevent runout concerns, and follow the vehicle manufacturer’s torque specifications during wheel installation. For best results, inspect pads and brake hardware at the same time as the rotor service.

Quality Assurance

ATE brake parts are engineered to a higher standard than conventional replacement parts, using Continental Automotive Systems’ OE brake system experience. The coated rotor design supports corrosion resistance and consistent fitment for the listed Mercedes-Benz ML front applications.
