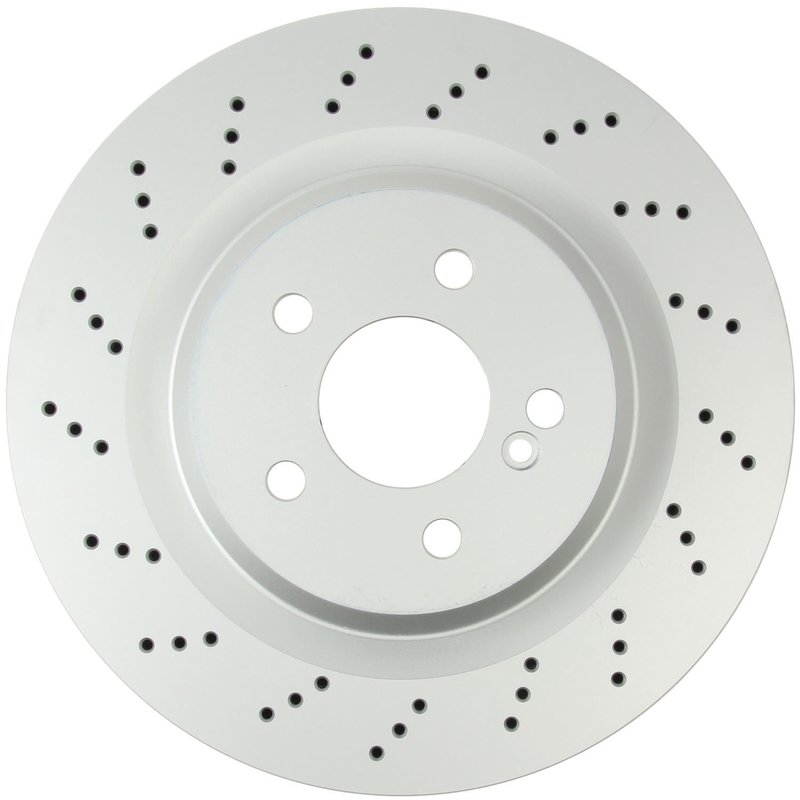

ATE SP26136 Disc Brake Rotor - Rear

ATE Coated Rear Brake Rotor for AMG Applications

The ATE Coated Single Pack Rotor SP26136 is a rear disc brake rotor built with a full cast construction, vented design, and rust-resistant coating. It is engineered for Mercedes-Benz AMG fitments where consistent braking performance and corrosion protection matter.

Key Features

• Part number SP26136
• ATE coated rotor design for improved corrosion resistance
• Full cast metal construction
• Vented rotor with 330.00 mm outside diameter
• 26.00 mm nominal thickness
• Non-directional disc finish
• 5-bolt hole pattern
• 2.524 in height

Product Details

ATE is part of Continental Automotive Systems and brings OE-level brake engineering to the aftermarket. The ATE Coated Single Pack Rotor SP26136 uses a rust-resistant coating to help protect the rotor surface during storage and service, while the vented full cast design supports heat management in demanding rear brake applications. This rotor is a direct fit for select Mercedes-Benz performance models, including 2007-2011 Mercedes-Benz CLS63 AMG, rear; 2007-2009 Mercedes-Benz E63 AMG, rear; 2006 Mercedes-Benz CLS55 AMG, rear; and 2003-2006 Mercedes-Benz E55 AMG, rear.

For shoppers searching for a rear brake rotor for Mercedes-Benz CLS63 AMG, Mercedes-Benz E63 AMG rear rotor replacement, or an ATE SP26136 rotor for AMG applications, this part matches the listed fitment and specifications. This part cross-references Brembo (e.g., 09.C502.11) for the same application.

Common Problems This Rotor Can Address

• Brake pulsation from a worn or uneven rear rotor
• Corrosion on the rotor surface from age or exposure
• Reduced braking consistency under repeated stops
• Rotor wear that no longer meets thickness specifications
• Noise caused by damaged or heat-affected rotor surfaces

Installation Notes and Tips

Verify rotor diameter, thickness, and bolt pattern before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect rear pads, caliper hardware, and wheel bearings at the same time. Follow the vehicle service manual for torque specifications and bedding procedures after installation.

Quality Assurance

ATE brake parts are backed by Continental Automotive Systems engineering and are produced to a higher standard than conventional replacement parts. The coated rotor design reflects ATE’s focus on premium materials and OE-oriented brake system performance.

• Fits 2007-2011 Mercedes-Benz CLS63 AMG, rear
• Fits 2007-2009 Mercedes-Benz E63 AMG, rear
• Fits 2006 Mercedes-Benz CLS55 AMG, rear
• Fits 2003-2006 Mercedes-Benz E55 AMG, rear
