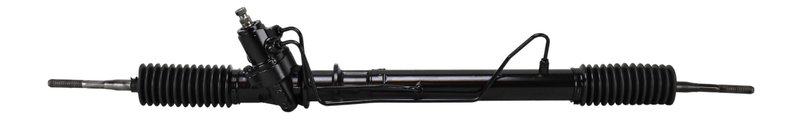

Atlantic Automotive Enterprises 3197 Rack and Pinion Assembly

Remanufactured Hydraulic Steering Rack

Atlantic Automotive Enterprises Part Number 3197 is a remanufactured hydraulic power steering rack and pinion assembly built for direct replacement service on select Chevrolet Tracker and Suzuki Vitara applications. It is remanufactured in the USA using OE-quality components and tested to verify pressure, flow, and overall operation.

This Remanufactured Rack and Pinion Complete Unit line is focused on restoring steering response with a finished assembly that includes inner tie rods and new bellows secured by OE stainless steel clamps. The unit is electrostatically painted with automotive-grade coating for added corrosion resistance in everyday driving conditions.

Key Features

• Application-specific rack and pinion assembly for hydraulic power steering systems
• 100% hydraulically tested for pressure and flow
• Remanufactured with OE-grade, high-temperature seals and O-rings
• Includes inner tie rods and new bellows with OE stainless steel clamps
• Electrostatically painted with automotive-grade finish
• Manufactured in the USA under a certified remanufacturing process

Detailed Description

Part 3197 is built for drivers and repair shops servicing 1999-2002 Chevrolet Tracker and 1999-2002 Suzuki Vitara models with crushed washer style ports. As a remanufactured hydraulic rack and pinion assembly, it is intended to restore steering feel, hydraulic assist, and consistent on-center control in vehicles that rely on a power steering rack rather than a steering gearbox. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Atlantic Automotive Enterprises remanufactures each unit with OE components where required, then inspects and tests the assembly before release. The result is a replacement rack that addresses wear in the hydraulic seals, internal components, and external protection surfaces while maintaining OE-style operation. Part Number 3197 is a practical choice for Tracker and Vitara steering repairs where the original rack has developed leaks, looseness, or uneven assist.

Common Steering Issues This Part May Resolve

• Power steering fluid leaks from worn rack seals or aging hydraulic components
• Loose, vague, or inconsistent steering response
• Noise or binding caused by internal rack wear
• Contamination entering the rack through damaged bellows
• Reduced steering assist from a failing hydraulic rack and pinion assembly

Installation Notes and Tips

Before installation, flush and refill the steering system with OE-approved power steering fluid to help protect the replacement rack and maintain proper hydraulic performance. Verify port style and vehicle application before ordering, since this unit is listed for crushed washer style ports on the confirmed Tracker and Vitara fitments. After installation, bleed the system thoroughly and inspect for leaks, steering effort changes, and proper wheel centering.

Quality Assurance

Each Atlantic Automotive Enterprises rack and pinion assembly is 100% tested to strict industry standards and remanufactured with OE-grade materials for durability and consistent operation. Part 3197 is backed by a 24-month or 24,000-mile warranty.
