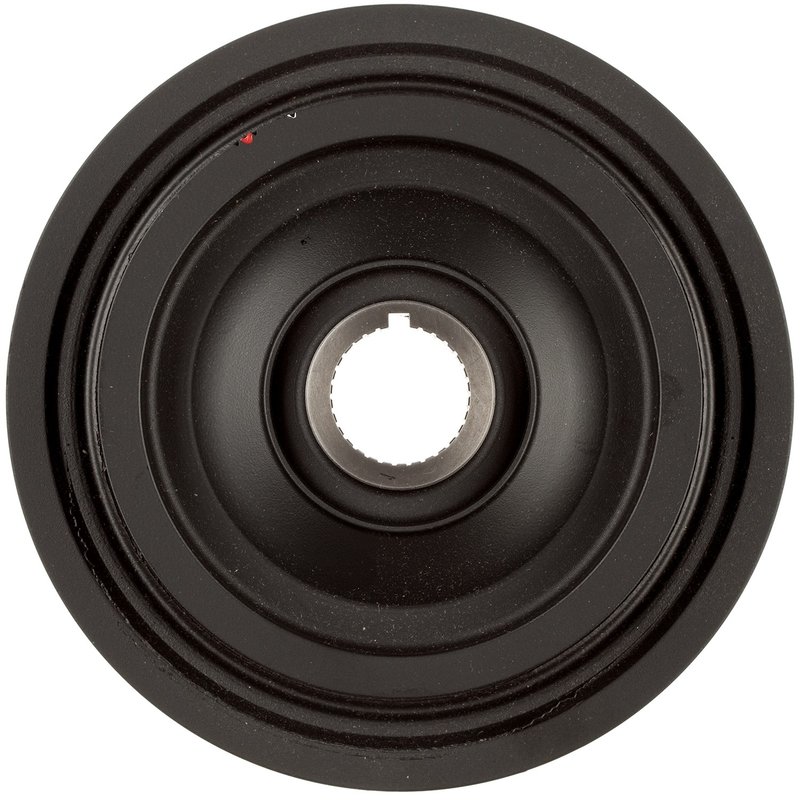

ATP Parts 102275 Engine Harmonic Balancer

OE Replacement Harmonic Balancer

ATP Parts 102275 is an OE Replacement Balancer built to restore crankshaft vibration control and belt alignment on select Honda and Acura applications. It is a standard replacement harmonic balancer for serpentine drive systems, including double-serpentine setups used on many V6 models.

Compatible With 1997-2004 Acura CL, 1997-2004 Acura TL, 2001-2004 Acura MDX, 1998-2004 Honda Accord, 1999-2004 Honda Odyssey, and 2003-2004 Honda Pilot. This ATP Parts 102275 balancer matches the original-style fit and function for these vehicles.

Key Features

• OE Replacement Balancer from ATP Parts
• Standard replacement grade for factory-style service
• Serpentine drive belt application
• Inside diameter: 1.25 in. / 32 mm
• Outside diameter: 6.375 in. / 163 mm
• Depth: 2.3125 in. / 59 mm
• Designed for crankshaft vibration damping and pulley alignment

Product Details

The harmonic balancer mounts to the crankshaft hub and uses an internal damping layer to reduce torsional vibration. Over time, the damping material can deteriorate, allowing the outer pulley section to shift and throw the belt system out of alignment. When that happens, the balancer should be replaced to help restore normal engine operation. ATP Parts 102275 is built as a direct OE-style replacement for the Honda Accord, Honda Odyssey, Honda Pilot, Acura CL, Acura TL, and Acura MDX applications listed above.

This part cross-references Pioneer Automotive Industries DA-3490 for the same application.

Common Problems This Part Can Address

• Crankshaft vibration at idle or under load
• Belt misalignment on serpentine drive systems
• Visible wobble or separation at the balancer
• Noise from the front of the engine
• Wear related to a deteriorated harmonic balancer damping layer

Installation Notes

Verify pulley groove count, outer diameter, and engine application before installation. Inspect the crankshaft snout, keyway, and belt drive components for wear or damage before fitting the new balancer. Use the correct service procedure and torque specifications for the vehicle, and confirm belt tracking after installation.

Quality Assurance

ATP Parts OE Replacement Balancer 102275 is engineered to fit and function like the original component, helping restore the engine’s vibration control and belt drive operation on the listed Acura and Honda applications.
