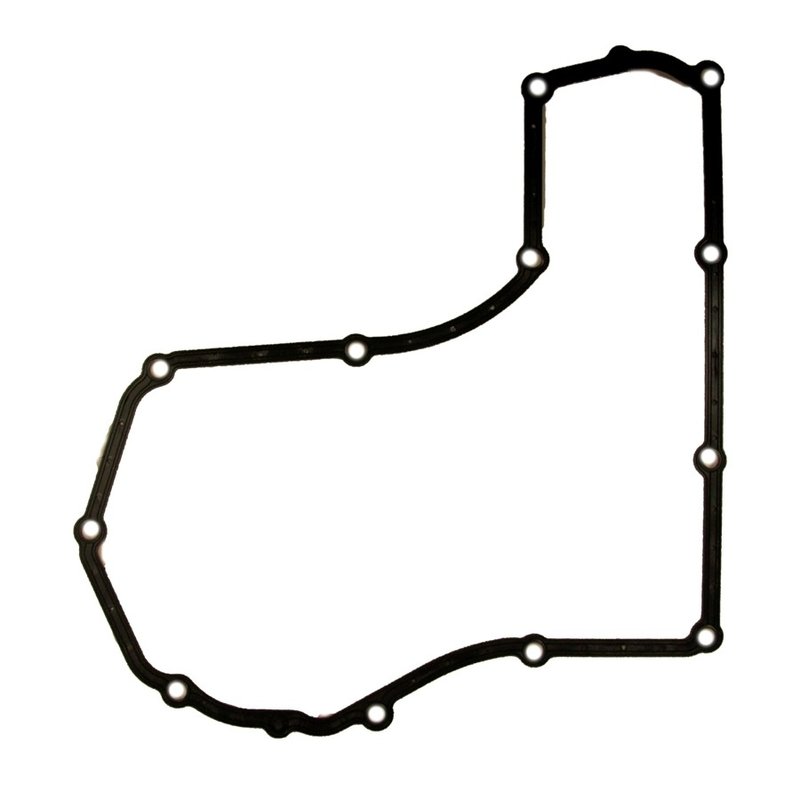

ATP Parts JG-109 Transmission Oil Pan Gasket

Transmission Oil Pan Gasket for GM Applications

ATP Parts JG-109 is a transmission oil pan gasket made as an exact-fit replacement for a range of GM vehicles. It is built for service work on the transmission pan sealing surface, helping restore a proper seal on applications such as Chevrolet Cobalt, Malibu, HHR, Pontiac G6, and Saturn Vue.

Key Features

• Exact-fit replacement transmission oil pan gasket from ATP Parts
• Replacement gasket for automatic transmission pan service
• Fits a broad range of Chevrolet, Pontiac, Saturn, and Oldsmobile applications
• Cross-references ATP Parts JG-109 for the same application
• Cross-references 41819 and 24203590

Detailed Description

ATP Transmission Seals and Gaskets are engineered as direct replacement parts, and JG-109 follows that approach for vehicles that need a reliable transmission pan seal. This gasket is used on many GM platforms, including 2006-2011 Chevrolet HHR, 2005-2010 Chevrolet Cobalt, 1997-2010 Chevrolet Malibu, 2005-2010 Pontiac G6, and 2005-2010 Saturn Vue. It also covers additional fitments such as Pontiac G5, Saturn Aura, Saturn Ion, Chevrolet Cavalier, and Oldsmobile Alero. If you are replacing a leaking transmission pan gasket on a Chevrolet Malibu or Saturn Vue, ATP Parts JG-109 provides the correct replacement style for the listed applications.

What It Is Used For

• Replacing a leaking transmission oil pan gasket
• Restoring the seal between the transmission pan and case
• Addressing fluid seepage after transmission service
• Correcting pan gasket failure on GM automatic transmission applications
• Servicing vehicles with a damaged or compressed pan seal

Installation Notes and Tips

Clean the pan rail and transmission sealing surface thoroughly before installation. Inspect the pan for warping, dents, or residue that can affect sealing, and verify the transmission application against the vehicle year, make, and model before ordering. For best results, follow the service procedure for the specific transmission and torque the pan fasteners evenly to specification.

Quality Assurance

ATP Parts positions this gasket as an exact-fit replacement part for the listed applications, with a focus on proper sealing and OE-style service fitment.
