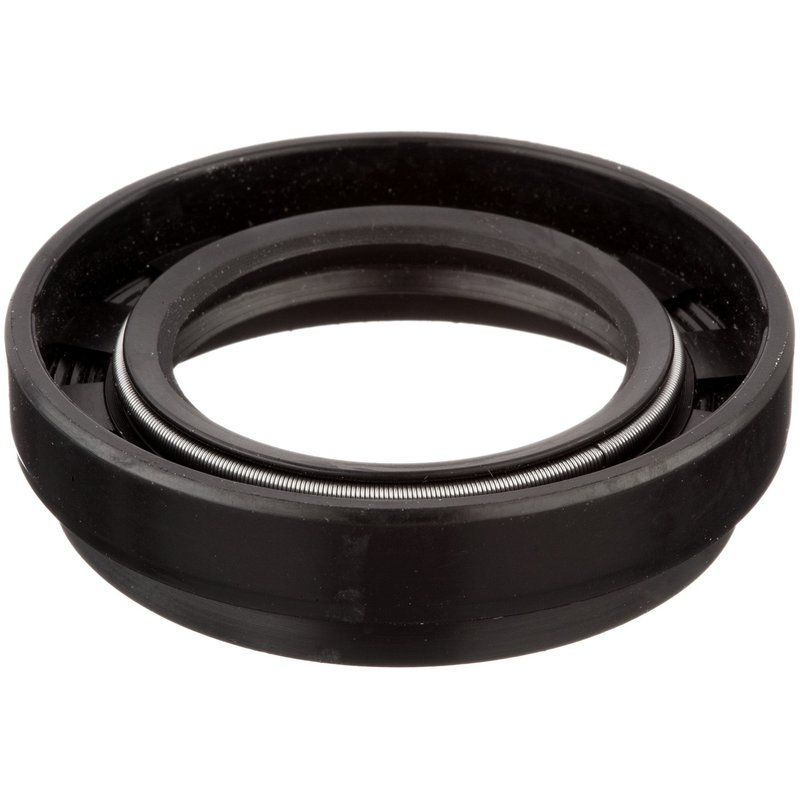

ATP Parts TO-36 Automatic Transmission Drive Axle Seal - Left or Right

Automatic Transmission Drive Axle Seal for Asian Vehicles

ATP Parts TO-36 is an exact-fit automatic transmission drive axle seal for a wide range of import applications. It is built for direct replacement use where a precise seal at the transaxle output is needed to help maintain fluid control.

Key Features

• Automatic transmission drive axle seal for transmission sealing service
• Exact-fit replacement design from ATP Parts
• Width: 0.5 in., outer diameter: 2.625 in., inner diameter: 1.625 in.
• Fits left, right, and N/A positions depending on vehicle application
• Cross-references National 223543 for the same application
• Part number TO-36 for catalog lookup and ordering

Fitment Coverage

• Fits 2003-2007 Hyundai Tiburon, N/A
• Fits 1997-2001 Hyundai Tiburon, N/A
• Fits 1993-2002 Mazda 626, N/A
• Fits 1994-2001 Acura Integra, left
• Fits 1995-2000 Mazda Millenia, right
• Fits 1995-2000 Mazda Millenia, left
• Fits 2000 Mazda MPV, right
• Fits 2000 Mazda MPV, left
• Fits 1996-1999 Hyundai Accent, N/A
• Fits 1990-1999 Mitsubishi Eclipse, left
• Fits 1990-1999 Mitsubishi Eclipse, N/A
• Fits 1989-1997 Ford Probe, right
• Fits 1989-1997 Ford Probe, left
• Fits 1992-1997 Hyundai Elantra, N/A
• Fits 1989-1997 Hyundai Sonata, N/A
• Fits 1993-1997 Mazda MX-6, N/A
• Fits 1997 Mitsubishi Galant, right
• Fits 1997 Mitsubishi Galant, left
• Fits 1991-1992 Mitsubishi Galant, left
• Fits 1993-1996 Dodge Stealth, right
• Fits 1993-1996 Dodge Stealth, left
• Fits 1991-1996 Mercury Tracer, N/A
• Fits 1993-1996 Mitsubishi Diamante, right
• Fits 1993-1996 Mitsubishi Diamante, left
• Fits 1985-1996 Mitsubishi Galant, N/A
• Fits 1985-1996 Mitsubishi Mirage, N/A
• Fits 1979-1995 Dodge Colt, N/A
• Fits 1995 Hyundai Accent, right; only fits F4A33-1
• Fits 1995 Hyundai Accent, left; only fits F4A33-1
• Fits 1991-1995 Hyundai Scoupe, N/A
• Fits 1992-1995 Mitsubishi Expo, left
• Fits 1992-1995 Mitsubishi Expo, N/A
• Fits 1990-1994 Hyundai Excel, N/A
• Fits 1986 Hyundai Excel, N/A
• Fits 1991-1994 Mercury Capri, right
• Fits 1991-1994 Mercury Capri, left
• Fits 1992-1994 Mitsubishi Expo LRV, N/A
• Fits 1987-1994 Mitsubishi Precis, N/A
• Fits 1990-1994 Plymouth Laser, N/A
• Fits 1992-1993 Mitsubishi Expo LRV, left
• Fits 1992 Dodge Stealth, N/A; to 06/1992
• Fits 1992 Mazda 626, right; only fits 4EAT-G, G4A-HL
• Fits 1992 Mazda 626, left; only fits 4EAT-G, G4A-HL
• Fits 1992 Mazda MX-6, right; only fits 4EAT-G
• Fits 1992 Mazda MX-6, left; only fits 4EAT-G
• Fits 1991-1992 Mitsubishi 3000GT, N/A
• Fits 1992 Mitsubishi 3000GT, N/A; to 06/1992
• Fits 1992 Mitsubishi Diamante, N/A; to 06/1992
• Fits 1991 Dodge Stealth, N/A
• Fits 1990-1991 Honda Prelude, right
• Fits 1990-1991 Mazda 323, right; only fits 4EAT-G, G4A-EL, G4A-HL
• Fits 1990-1991 Mazda 323, left; only fits 4EAT-G, G4A-EL, G4A-HL
• Fits 1990-1991 Mazda 626, right; only fits 4EAT-G
• Fits 1990-1991 Mazda 626, left; only fits 4EAT-G
• Fits 1988-1991 Mazda MX-6, right
• Fits 1988-1991 Mazda MX-6, left
• Fits 1989-1990 Mitsubishi Sigma, N/A
• Fits 1987-1989 Mazda 323, right
• Fits 1987-1989 Mazda 323, left
• Fits 1987-1989 Mazda 626, right
• Fits 1987-1989 Mazda 626, left
• Fits 1983-1988 Mitsubishi Cordia, N/A
• Fits 1983-1988 Mitsubishi Tredia, N/A
• Fits 1987 Hyundai Pony, right; transmission speeds: 4; only fits KM175-1, KM175-5 (F4A22-2), KM176-5, KM176-5 (F4A21-2), KM177, KM177-8 (F4A23-2)
• Fits 1983-1985 Hyundai Pony, right; transmission speeds: 4; only fits KM175-1, KM175-5 (F4A22-2), KM176-5, KM176-5 (F4A21-2), KM177, KM177-8 (F4A23-2)
• Fits 1987 Hyundai Pony, left; transmission speeds: 4; only fits KM175-1, KM175-5 (F4A22-2), KM176-5, KM176-5 (F4A21-2), KM177, KM177-8 (F4A23-2)
• Fits 1983-1985 Hyundai Pony, left; transmission speeds: 4; only fits KM175-1, KM175-5 (F4A22-2), KM176-5, KM176-5 (F4A21-2), KM177, KM177-8 (F4A23-2)
• Fits 1987 Hyundai Stellar, right; transmission speeds: 4; only fits KM175-1, KM175-5 (F4A22-2), KM176-5, KM176-5 (F4A21-2), KM177, KM177-8 (F4A23-2)
• Fits 1985 Hyundai Stellar, right; transmission speeds: 4; only fits KM175-1, KM175-5 (F4A22-2), KM176-5, KM176-5 (F4A21-2), KM177, KM177-8 (F4A23-2)
• Fits 1987 Hyundai Stellar, left; transmission speeds: 4; only fits KM175-1, KM175-5 (F4A22-2), KM176-5, KM176-5 (F4A21-2), KM177, KM177-8 (F4A23-2)
• Fits 1985 Hyundai Stellar, left; transmission speeds: 4; only fits KM175-1, KM175-5 (F4A22-2), KM176-5, KM176-5 (F4A21-2), KM177, KM177-8 (F4A23-2)
• Fits 1986 Hyundai Pony, N/A
• Fits 1986 Hyundai Stellar, N/A

Common Problems This Seal Addresses

• Transmission fluid seepage at the drive axle opening
• Fluid loss caused by a worn or hardened axle seal
• Contamination entering the transaxle through a damaged seal lip
• Service replacement for leaking left or right axle seal locations
• Fitment correction during transmission repair on Hyundai, Mazda, Mitsubishi, Dodge, Ford, Acura, Honda, and Mercury applications

Installation Notes

Verify the transmission code, axle position, and dimensions before installation. Several applications require exact transmission identification, including F4A33-1, 4EAT-G, G4A-HL, G4A-EL, and specific KM-series units. Clean the seal bore and axle surface before installing ATP Parts TO-36 to help ensure proper seating and sealing.

Quality Assurance

ATP Transmission Seals and Gaskets are exact-fit replacement parts built for direct service use. TO-36 is cataloged for broad import transmission coverage and is supported by multiple aftermarket cross-references, including National 223543.
