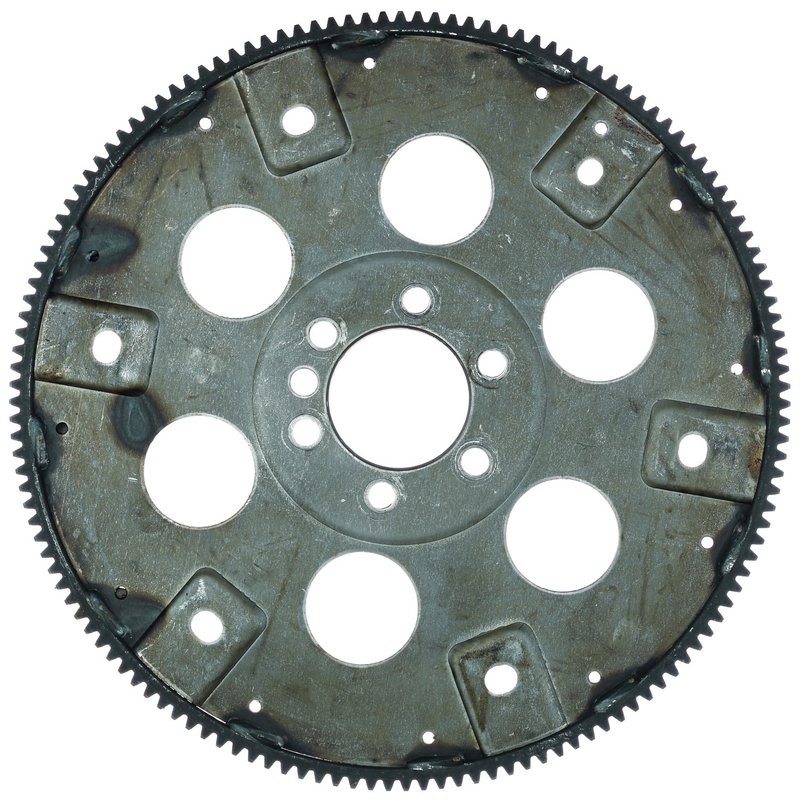

ATP Parts Z-135 Automatic Transmission Flexplate

Automatic Transmission Flexplate for GM V8 Applications

ATP Parts Z-135 is an automatic transmission flexplate built for select Chevrolet and GMC trucks, vans, and SUVs from 1982-1995. It connects the engine to the torque converter and provides the starter ring gear engagement needed for reliable cranking.

• High-quality steel construction for strength and durability
• 139 teeth for starter engagement
• 14.125 in. outside diameter
• 11.75 in. torque converter mounting hole spread
• Weight-added design
• Direct replacement style with correct bolt-hole spacing and ring gear tooth count

Fitment and Application Details

Compatible with a wide range of Chevrolet and GMC rear-wheel-drive and four-wheel-drive applications, including C/K trucks, Suburban models, Blazer, Jimmy, and G-series vans. Fits 1982-1986 Chevrolet C10, C10 Suburban, C20, C20 Suburban, C30, K10, K10 Suburban, K20, K20 Suburban, K30, and K5 Blazer. Fits 1987 Chevrolet R10, R20, V10, and V20. Fits 1987-1988 Chevrolet R10 Suburban and V10 Suburban. Fits 1987-1991 Chevrolet Blazer, 1989-1991 Chevrolet R1500 Suburban and V1500 Suburban, 1984 Chevrolet G30, and 1991-1993 Chevrolet G30. Fits 1982-1991 GMC Jimmy, 1982-1986 GMC C1500, C2500, K1500, and K2500, 1982-1986 GMC C1500 Suburban, C2500 Suburban, K1500 Suburban, and K2500 Suburban, 1983-1986 GMC C3500 and K3500, 1983-1995 GMC G2500 and G3500, 1987 GMC R1500, R2500, V1500, and V2500, 1987-1991 GMC R1500 Suburban and V1500 Suburban, 1988-1994 GMC C2500, K1500, and K2500, and 1988-1995 GMC C1500 and K1500.

This part cross-references Pioneer Automotive Industries FRA-143 and Standard Ignition V512 for the same application.

What This Flexplate Helps Address

• Cracked flexplate material from age and repeated load cycling
• Sheared or damaged flexplate teeth that affect starter engagement
• Torque converter mounting issues caused by incorrect hole spacing
• Noise or drivability problems related to a failing flexplate
• Expensive drivetrain damage caused by a broken flexplate

Installation Notes and Tips

Verify the 11.75 in. torque converter mounting hole spread, 139-tooth count, and 14.125 in. outside diameter before installation. Confirm the application against the vehicle’s transmission and engine combination, since flexplate fitment is determined by these dimensions and the listed GM platform coverage. Inspect the starter, torque converter, and mounting surfaces during replacement to help prevent repeat failure.

Quality Assurance

ATP Parts manufactures this flexplate from high-quality steel with OE-style bolt-hole spacing and ring gear tooth geometry to match the original part. The Z-135 is built for long service life in automatic transmission applications.
