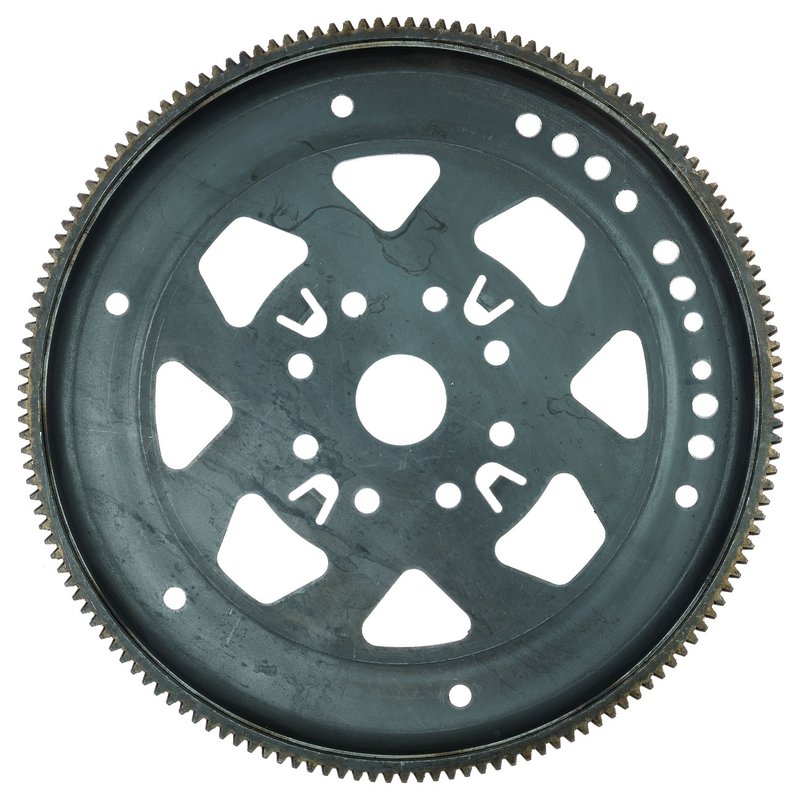

ATP Parts Z-333 Automatic Transmission Flexplate

ATP Parts Z-333 Flexplate Overview

ATP Parts Z-333 is an automatic transmission flexplate for Dodge Ram 2500, Dodge Ram 3500, Dodge D250, Dodge D350, Dodge W250, and Dodge W350 applications. It is built from high-quality steel with the correct bolt-hole spacing and ring gear teeth to match the original part and support reliable engine-to-transmission connection.

Key Features

• Automatic transmission flexplate for OE-style replacement
• 15.313-inch outside diameter
• 152 ring gear teeth for starter engagement
• 8 mounting holes
• 12-to-14 pitch flywheel specification
• 388.975 mm diameter listed in the product data
• Made from high-quality steel for durability
• Non-weighted design

Detailed Product Description

The ATP Parts Z-333 flexplate connects the engine and automatic transmission while providing the starter ring gear interface needed for cranking. In service, flexplates are exposed to repeated expansion and contraction as engine speed changes, and that cycling can lead to cracking or shearing over time. This replacement flexplate is built to match the original bolt pattern and tooth count, helping maintain proper fit and function in Dodge Ram 2500 and Dodge Ram 3500 trucks, as well as Dodge D250, D350, W250, and W350 models.

This part cross-references Pioneer Automotive Industries FRA-533 and Standard Ignition V425 for the same application. The ATP Parts Z-333 part number is also referenced by several OE and aftermarket numbers, making it a practical choice when replacing a damaged flexplate.

Vehicle Fitment

• Fits 1994-2009 Dodge Ram 2500, N/A; W/O Weight; Teeth: 152; Outer Diameter: 15.31"
• Fits 1994-2007 Dodge Ram 3500, N/A; W/O Weight; Teeth: 152; Outer Diameter: 15.31"
• Fits 1989-1993 Dodge D250, N/A; W/O Weight; Teeth: 152; Outer Diameter: 15.31"
• Fits 1989-1993 Dodge D350, N/A; W/O Weight; Teeth: 152; Outer Diameter: 15.31"
• Fits 1989-1993 Dodge W250, N/A; W/O Weight; Teeth: 152; Outer Diameter: 15.31"
• Fits 1989-1993 Dodge W350, N/A; W/O Weight; Teeth: 152; Outer Diameter: 15.31"

Common Problems This Part Can Address

• Cracked flexplate from repeated drivetrain stress
• Sheared flexplate material around the mounting area
• Starter engagement issues caused by worn ring gear teeth
• Noise or vibration from a damaged flexplate
• Transmission-to-engine connection failure after flexplate damage

Installation Notes and Tips

Confirm the vehicle uses a non-weighted flexplate with 152 teeth and a 15.31-inch outer diameter before installation. Verify bolt-hole spacing, starter engagement, and torque converter alignment against the original part. Because a broken flexplate cannot be repaired, replacement is the correct service procedure when cracking or shearing is present.

Quality Assurance

ATP Parts manufactures this flexplate in high-quality steel with OE-style dimensions and tooth geometry to support proper fitment and long service life. The part is built to match the original application requirements for the listed Dodge truck models.
