ATP Parts Z-430 Automatic Transmission Flexplate

Overview

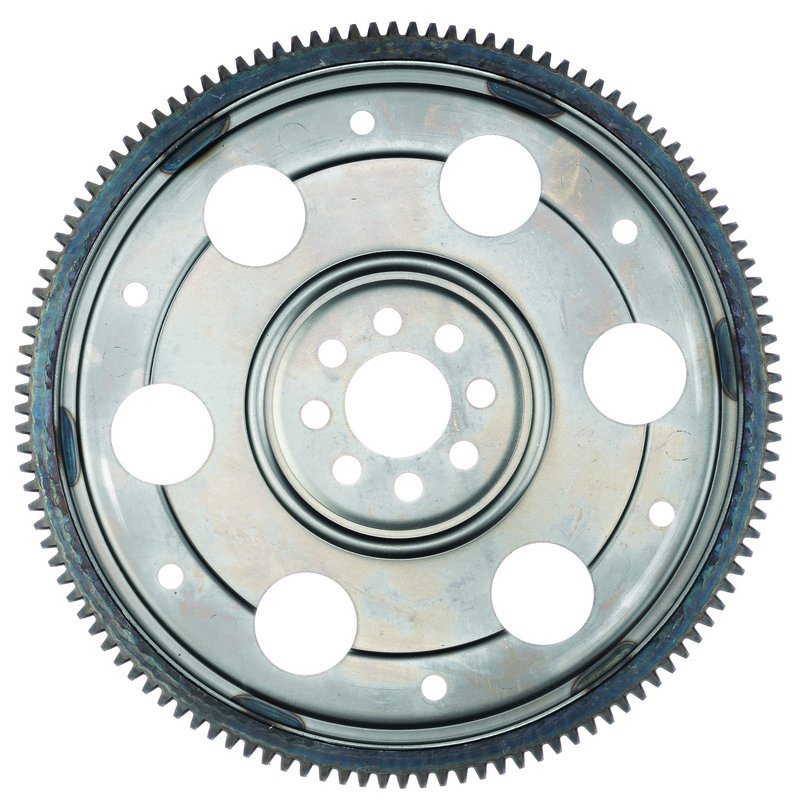

ATP Parts Z-430 is an automatic transmission flexplate for Toyota applications with a 120-tooth ring gear and a 11.938-inch outside diameter. It connects the engine and torque converter, and it is built to match original bolt-hole spacing and starter engagement requirements.

Key Features

• High-quality steel construction for strength and durability.
• 120-tooth ring gear for starter engagement.
• 11.938-inch outside diameter with 0.995-inch diameter specification.
• Correct bolt-hole spacing to match the original part.
• Contents detail: 8 small holes around the I.D., plus 6 large holes and 6 small holes around the outside.

Detailed Description

The ATP Parts Z-430 flexplate is a direct replacement-style component for automatic transmission systems that rely on a stamped steel flexplate to transfer engine rotation to the torque converter. It is engineered with the proper tooth count and mounting pattern to support consistent starter mesh and reliable converter attachment. This part number, Z-430, is listed for Toyota Camry, Solara, RAV4, Celica, and MR2 applications across the fitment range shown.

Flexplates are subject to repeated expansion and contraction during operation, and cracks or shearing can lead to major drivetrain damage if the part is not replaced promptly. This ATP Parts Z-430 flexplate uses steel construction and original-style dimensions to match the application requirements. The part number Z-430 is also cross-referenced to Pioneer Automotive Industries FRA-464 and Standard Ignition V304 for the same application.

What It Helps Address

• Cracked or sheared flexplate material.
• Starter engagement problems caused by worn ring gear teeth.
• Torque converter attachment issues from incorrect bolt-hole spacing.
• Noise or driveline damage related to a damaged flexplate.
• Replacement needs after flexplate failure in automatic transmission service.

Installation Notes

Verify tooth count, outside diameter, and bolt-hole pattern before installation. Confirm the application against the vehicle’s automatic transmission setup and compare the removed part to the listed specifications. For Toyota Camry, Toyota Solara, and Toyota RAV4 applications, match the fitment notes carefully, especially where the listing specifies 120 teeth and 11.95-inch outer diameter. Professional installation is recommended for drivetrain components.

Quality Assurance

ATP Parts states that this flexplate is made from high-quality steel and built with the correct bolt-hole spacing and ring gear teeth to match the original part for long service life and durability.
