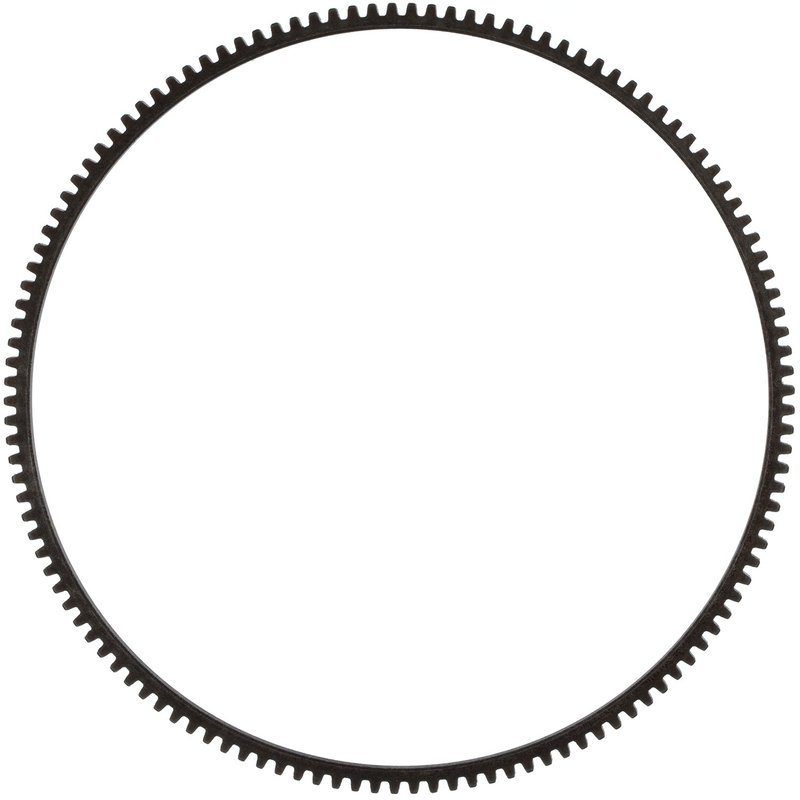

ATP Parts ZA-549 Clutch Flywheel Ring Gear

Overview of ATP Parts Clutch Flywheel Ring Gear ZA-549

The ATP Parts clutch flywheel ring gear ZA-549 is designed specifically for Volkswagen Rabbit Convertible and Rabbit Pickup models. Engineered to precise specifications, this component ensures reliable engagement and smooth transmission operation.

• Inside Diameter: 9.856 inches
• Outside Diameter: 10.588 inches
• Thickness: 0.325 inches
• Tooth Quantity: 125 teeth
• Pitch Flywheels: 11.85
• Ring Gear Chamfer: None

Technical Details and Specifications

This clutch flywheel ring gear features a 9.856-inch inside diameter and a 10.588-inch outside diameter, providing a precise fit for the flywheel assembly. The 0.325-inch thickness contributes to durability while maintaining proper engagement with the starter motor. With 125 teeth, the ring gear matches the original equipment specifications for smooth and consistent operation. The pitch of 11.85 ensures compatibility with the corresponding flywheel components. Notably, this ring gear does not include a chamfer, aligning with the original design for Volkswagen Rabbit Convertible and Rabbit Pickup transmissions.

Compatible Vehicles and Applications

This ATP Parts clutch flywheel ring gear ZA-549 is compatible with the following Volkswagen models:

• Volkswagen Rabbit Convertible
• Volkswagen Rabbit Pickup

It is intended for use in transmission systems requiring a clutch flywheel ring gear with the specified dimensions and tooth count, ensuring proper starter engagement and transmission performance.

Common Issues Addressed by This Part

• Starter motor slipping due to worn or damaged ring gear teeth
• Irregular engagement causing transmission noise or vibration
• Flywheel ring gear wear leading to starting difficulties
• Replacement of corroded or damaged ring gear components
• Restoration of proper starter and flywheel interface for reliable engine starts

Installation Notes and Tips

When installing the ATP Parts clutch flywheel ring gear ZA-549, ensure the flywheel surface is clean and free of debris. Proper alignment of the ring gear teeth with the starter motor is critical to avoid premature wear. Use appropriate tools to press the ring gear onto the flywheel evenly, avoiding damage to the teeth or gear structure. Verify the tooth count and dimensions match the original part before installation to maintain transmission integrity.

Quality Assurance and Warranty

ATP Parts manufactures this clutch flywheel ring gear to meet OEM specifications for Volkswagen vehicles. The part number ZA-549 undergoes quality control checks to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, ATP Parts products typically conform to industry standards for durability and performance in automotive transmission components.
