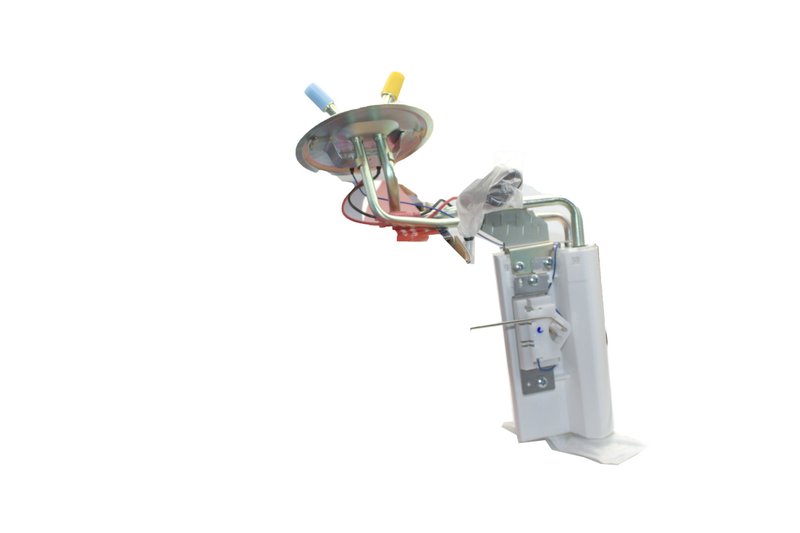

Autobest F1052A Fuel Pump Hanger Assembly - Front
| Brand | Autobest F1052A |
|---|---|
| Position | Front |
| Average Current Draw(A) | 7.5 |
| Average Flow Rating(GPH) | 36 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Elliptic |
| Country of Orign | China |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Material | Nbr |
| Grade Type | Performance |
| Housing Material | Pom |
| In Tank or External | In tank |
| Installation Warnings | No |
| Internal Or External Strainer | External |
| Life Cycle Status Code | Available to order |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Package Contents | Fuel pump module assembly |
| Product Height (in) | 12.8 |
| Product Length (in) | 9.4 |
| Product Width (in) | 6.14 |
| Pump Type | Turbine |
| Resistance Ohms Empty | 15 |
| Resistance Ohms Full | 162 |
| Short Description | Fuel pump hanger assembly |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Product line | Fuel Pump Hanger Assembly |
| Fits | Ford · 6 vehicles |
OE-style replacement. Fuel pump hanger assembly for direct service replacement in the fuel system.
Integrated sender. Includes the fuel sending unit for level signal output.
Performance-grade build. Turbine pump, POM housing, and NBR seal materials.
Cross-references US Motor Works USEP12306M, E2041H and P77405H for the same application. See all 3.
Fuel Pump Hanger Assembly Overview
Autobest F1052A is a fuel pump hanger assembly for select Ford trucks with a driver side mount. It is built as an in-tank unit with a turbine pump, integrated fuel sending unit, and external strainer for fuel delivery and level sensing.
Compatible With 1990-1991 Ford F-150, front; 1990-1991 Ford F-250, front; and 1990-1991 Ford F-350, front. The F1052A is a direct-fit fuel pump hanger assembly for truck applications that require the specified hanger configuration.
Key Features
- In-tank fuel pump hanger assembly with turbine pump design
- Fuel sending unit included for fuel level signal output
- External strainer included for inlet protection
- 12V electrical system with male connector and 4-pin terminal layout
- NBR seal material and POM housing construction
- Performance-grade replacement for fuel delivery service
Detailed Description
Autobest F1052A is engineered for fuel system service where the hanger, pump, and sender are serviced together. Its 36 GPH flow rating, 7.5A average current draw, and turbine-style pump support steady fuel delivery, while the included sending unit provides fuel level feedback. The assembly uses a male elliptic connector, PIN terminals, and an external strainer to support clean fuel pickup. This part cross-references Monroe Shocks & Struts (e.g., E2041H, P77405H) for the same application.
For buyers searching for a Ford F-150 fuel pump hanger assembly, Ford F-250 fuel pump hanger assembly, or Ford F-350 fuel pump hanger assembly, F1052A provides the specified fitment and component layout. The part number F1052A is also useful when matching replacement fuel system components by catalog reference.
What It Is Used For
- Restoring fuel delivery when the original hanger assembly is worn or failing
- Replacing a faulty fuel sending unit that causes inaccurate gauge readings
- Addressing weak fuel flow from an aging in-tank pump assembly
- Correcting pickup issues related to a damaged strainer or seal
Installation Notes and Tips
Verify the vehicle’s hanger configuration, connector style, and sender resistance before installation. This assembly is for in-tank use and should be matched to the listed Ford truck applications and front-position fitment. The part number F1052A should be confirmed against the original unit before service begins.
Quality Assurance
Autobest F1052A includes a limited lifetime warranty. The assembly is built with a POM housing, NBR seal material, and a performance-grade specification for replacement use.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1991 | Ford | F-150 | 4.9L | L6 | Front | with Driver Side Mount; Fuel Pump Hanger Assembly |
| 1991 | Ford | F-250 | 4.9L | L6 | Front | with Driver Side Mount; Fuel Pump Hanger Assembly |
| 1991 | Ford | F-350 | 5.8L | V8 | Front | with Driver Side Mount; Fuel Pump Hanger Assembly |
| 1990 | Ford | F-150 | 4.9L | L6 | Front | with Driver Side Mount; Fuel Pump Hanger Assembly |
| 1990 | Ford | F-250 | 4.9L | L6 | Front | with Driver Side Mount; Fuel Pump Hanger Assembly |
| 1990 | Ford | F-350 | 5.8L | V8 | Front | with Driver Side Mount; Fuel Pump Hanger Assembly |
