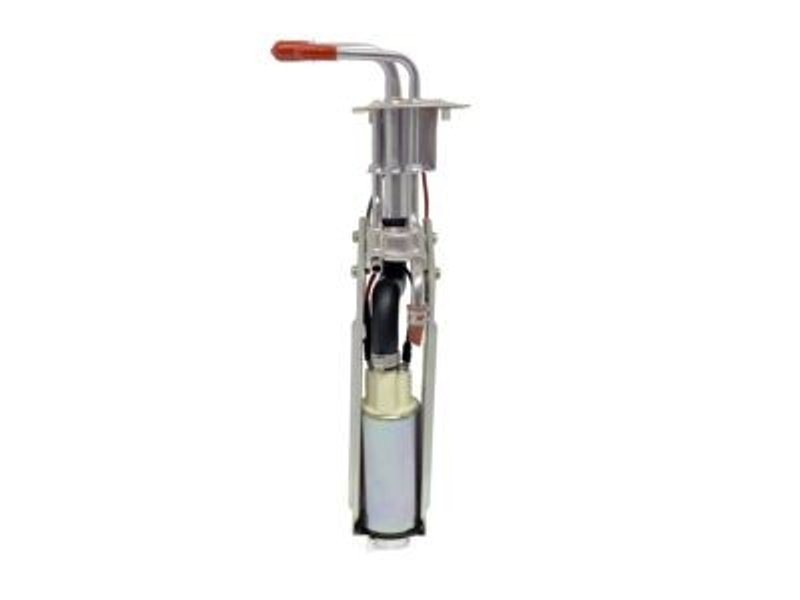

Autobest F1102A Fuel Pump Hanger Assembly
| Brand | Autobest F1102A |
|---|---|
| Average Current Draw(A) | 4.5 |
| Average Flow Rating(GPH) | 26 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | Nbr |
| Grade Type | Performance |
| In Tank or External | In tank |
| Inlet Size | 0.889 |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | External |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 90 |
| Minimum Pump Pressure (PSI) | 80 |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 |
| Outlet Type | Quick connect |
| Package Contents | Fuel pump assembly |
| Package Height (in) | 7.28 |
| Package Length (in) | 14.17 |
| Package Width (in) | 7.28 |
| Product Height (in) | 4.13 |
| Product line | Fuel Pump Hanger Assembly |
| Fits | Ford · 4 vehicles |
Complete assembly. Includes the core components needed for a fuel system repair.
Ethanol-tolerant design. Built with materials suited for modern fuel blends.
Performance-grade pump. Turbine-style construction with 12V operation and 80-90 PSI range.
Cross-references Airtex Fuel Pumps E2191H, Carter P74821H and Delphi HP10145 for the same application. See all 20.
Fuel delivery replacement for Mustang
This Autobest fuel pump hanger assembly is built for fuel system service on compatible Ford applications. It combines the hanger assembly with key service components for a complete in-tank fuel delivery repair, and it is engineered for modern ethanol-blended fuels.
- In-tank fuel pump hanger assembly for fuel system repair
- Performance-grade design with a turbine pump
- 12V operation with 80-90 PSI pressure range
- 3/8 in. quick-connect outlet for service-friendly connection
- Includes a gasket/seal and strainer
Product details
Autobest F1102A is a fuel pump hanger assembly with a male rectangular connector, two pin terminals, and a 4.5 amp average current draw. The assembly uses NBR seal material and an external strainer, and it is supplied as an in-tank unit with a 26 GPH average flow rating. This part cross-references Airtex Fuel Pumps E2191H and Carter P74821H for the same application. For shoppers comparing Ford Mustang fuel pump hanger assembly options, F1102A provides the core components needed for this repair in one assembly.
Common repair uses
- Restores fuel delivery when the original hanger assembly is worn or failing
- Addresses hard-start or no-start conditions caused by fuel supply issues
- Helps correct low fuel pressure from a deteriorated in-tank pump assembly
- Replaces damaged connector, outlet, or seal components in the fuel module
Installation notes
Fits 1994-1997 Ford Mustang, N/A. Verify connector style, outlet type, and tank configuration before installation. The assembly uses a 3/8 in. quick-connect outlet and a male rectangular connector with two pin terminals. Mounting hardware is not included.
Quality assurance
Autobest states that this assembly uses top-quality materials, is tested during manufacturing, and is supplied with a limited lifetime warranty. The product is also described as having superior ethanol tolerance for current fuel systems. Part number F1102A is listed as available to order.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 1997 | Ford | Mustang | 4.6L | V8 | GAS | Fuel Pump Hanger Assembly |
| 1996 | Ford | Mustang | 4.6L | V8 | GAS | Fuel Pump Hanger Assembly |
| 1995 | Ford | Mustang | 5.8L | V8 | — | Fuel Pump Hanger Assembly |
| 1994 | Ford | Mustang | 5.0L | V8 | — | Fuel Pump Hanger Assembly |
