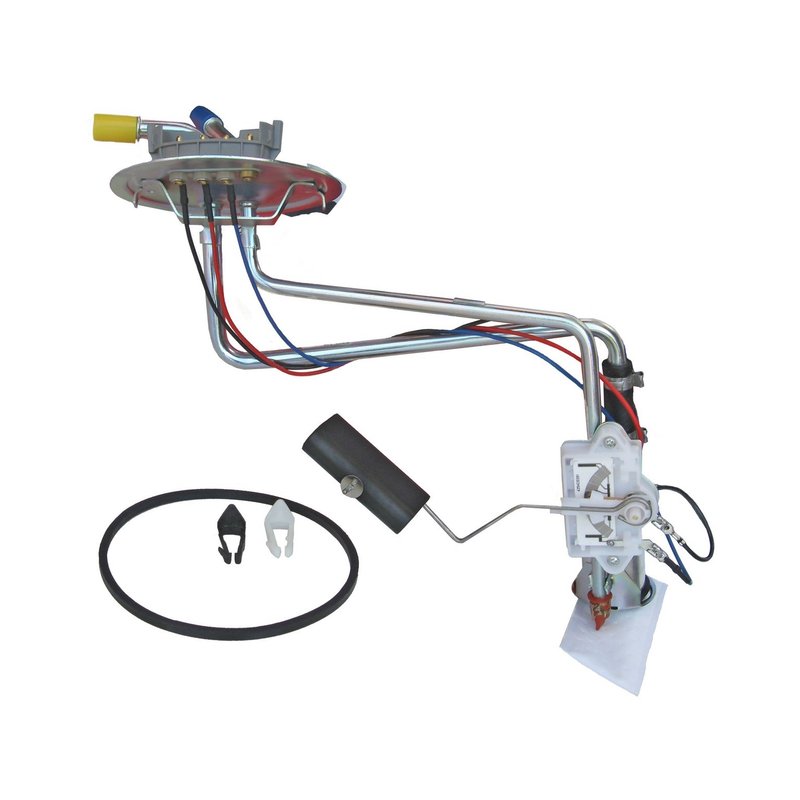

Autobest F1114A Fuel Pump and Sender Assembly

Overview of Autobest Fuel Pump and Sender Assembly F1114A

The Autobest Fuel Pump and Sender Assembly F1114A is designed for reliable fuel delivery in Ford trucks, including the F-150, F-250, and F-350 models. This in-tank fuel pump assembly combines a fuel pump and sending unit to ensure accurate fuel level readings and consistent fuel flow.

• Average current draw of 2.5 amps for efficient operation
• Fuel flow rating of 46 gallons per hour (GPH)
• Includes fuel sending unit and NBR gasket for secure sealing
• Elliptic male connector with one quick connect outlet
• In-tank design with external strainer inlet type
• Compatible with Ford F-150, F-250, and F-350 trucks
• Maximum pump pressure of 10 PSI and minimum of 2 PSI

About the Fuel Pump and Sender Assembly Product Line

The Autobest Fuel Pump and Sender Assembly product line integrates both the fuel pump and fuel level sending unit into a single assembly. This design simplifies installation and ensures compatibility between components. The F1114A model is part of this performance-grade line, engineered to meet the fuel delivery demands of Ford trucks while maintaining accurate fuel level monitoring.

Detailed Product Description

The F1114A fuel pump assembly operates with an average current draw of 2.5 amps and delivers a fuel flow rate of 46 GPH, suitable for maintaining optimal engine performance in Ford F-150, F-250, and F-350 vehicles. It features a male elliptic connector and a single quick connect outlet sized at 3/8 inch for secure fuel line attachment. The pump is designed for in-tank installation and includes an external strainer inlet sized at 0.748 inches to filter debris before fuel enters the pump. The assembly comes with a NBR gasket to ensure a proper seal and prevent leaks. Note that the fuel filter and fuel tank pressure sensor are not included in this assembly.

Common Applications and Issues Addressed

• Replacement of faulty or failing fuel pumps in Ford F-150, F-250, and F-350 trucks
• Resolving inconsistent fuel level readings due to a malfunctioning sending unit
• Addressing low fuel pressure issues causing engine performance problems
• Fixing fuel delivery interruptions caused by clogged or damaged strainers
• Eliminating fuel leaks with the included NBR gasket seal

Installation Notes and Tips

The F1114A assembly is designed for in-tank installation and does not include mounting hardware, so ensure you have the necessary tools and parts before beginning. The elliptic male connector and quick connect outlet facilitate straightforward electrical and fuel line connections. No specific installation warnings are provided, but proper handling and adherence to vehicle service manuals are recommended to avoid damage during installation.

Quality Assurance and Warranty

This Autobest Fuel Pump and Sender Assembly is performance-grade and manufactured in China. It is available to order and includes a NBR gasket for sealing. While specific warranty details are not provided, Autobest products typically meet industry standards for durability and reliability. Verify warranty coverage with the supplier or manufacturer at the time of purchase.
