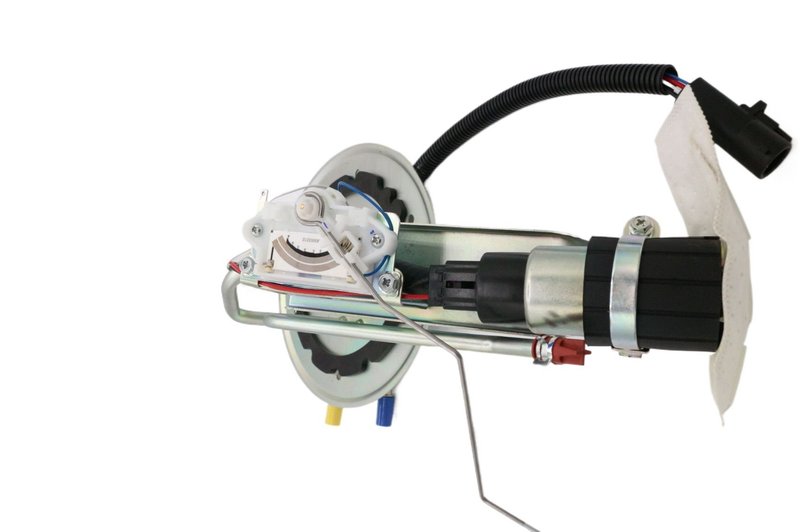

Autobest F1124A Fuel Pump Hanger Assembly

Fuel Pump Hanger Assembly Overview

This Autobest fuel pump hanger assembly is built for in-tank fuel delivery and direct replacement service on select Ford, Lincoln, and Mercury applications. It uses a turbine pump design, a female round connector, and an internal strainer to support consistent fuel flow in demanding fuel systems.

Fits 1995-1996 Ford Crown Victoria, N/A. Fits 1995-1996 Lincoln Town Car, N/A. Fits 1995-1996 Mercury Grand Marquis, N/A. Part number F1124A is also referenced in interchange listings for related applications.

Key Features

• In-tank fuel pump hanger assembly with a turbine-style pump
• 25 GPH average flow rating and 79.75 PSI minimum pump pressure
• FKM seal material for improved fuel-system compatibility
• Internal strainer included; fuel filter and sending unit not included
• 12V operation with a 4-pin male terminal connection
• Limited lifetime warranty

Detailed Description

Autobest F1124A is a fuel pump hanger assembly engineered for vehicles that require an in-tank fuel delivery module. The assembly includes a gasket or seal, an internal strainer, and a hose-bead outlet, while the fuel filter, fuel sending unit, fuel tank pressure sensor, and wire harness are not included. The unit is rated for 12V operation, draws an average of 6 amps, and uses a single round female connector with four male pin terminals. F1124A is a practical replacement choice for restoring fuel delivery performance on 1995-1996 Ford Crown Victoria, Lincoln Town Car, and Mercury Grand Marquis applications.

This part cross-references Delphi HP10059 and Spectra Premium SP2113H for the same application. The F1124A part number is useful when matching the correct hanger assembly for these vehicles.

What It Helps Solve

• Hard starting caused by weak or inconsistent fuel delivery
• Fuel starvation from a worn in-tank pump module
• Pressure loss in a fuel system that needs a higher-pressure replacement
• Fuel seepage at the module seal area
• Poor pump operation from an aging hanger assembly

Installation Notes and Tips

Verify connector style, outlet size, and in-tank configuration before installation. Confirm that the vehicle uses the correct hanger assembly layout and compare the original module to F1124A before removal. Because mounting hardware is not listed as included, reuse or source any required hardware separately if needed.

Quality Assurance

Autobest states that this assembly is made with quality materials and tested throughout manufacturing for durability and reliability. It is also described as having superior ethanol tolerance for modern fuel systems. F1124A includes a limited lifetime warranty.
