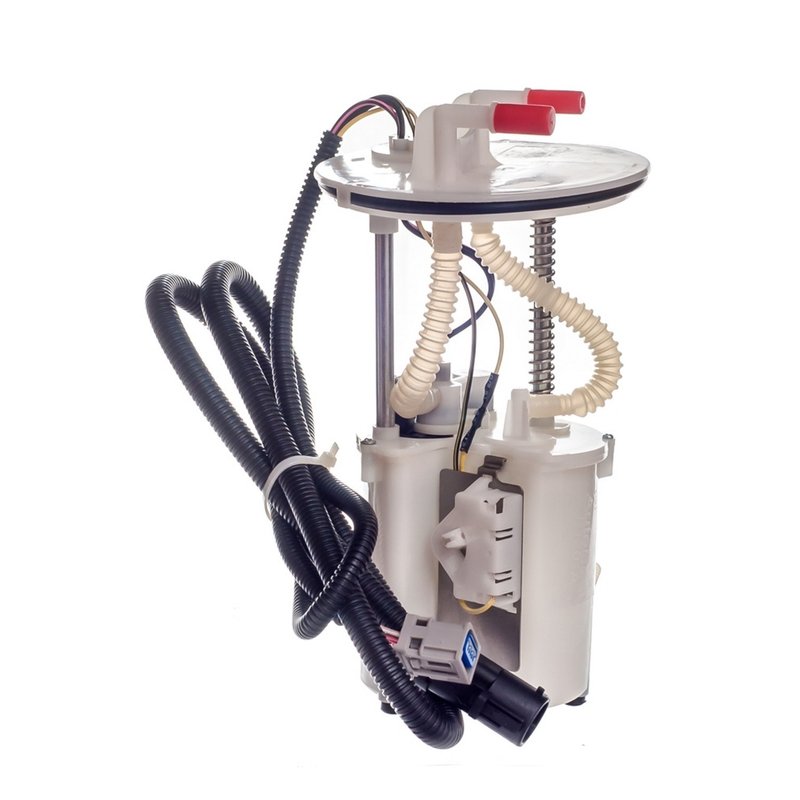

Autobest F1201A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1201A

The Autobest Fuel Pump Module Assembly F1201A is designed specifically for Ford Windstar vehicles, providing reliable in-tank fuel delivery. Engineered to meet performance standards, this fuel pump module ensures consistent fuel flow and pressure for optimal engine operation.

• Average current draw of 7 amps for efficient power consumption
• Fuel flow rating of 34 gallons per hour (GPH) to support engine demands
• Includes fuel sending unit and NBR gasket for accurate fuel level readings and secure sealing
• Constructed with durable POM housing material for long-lasting performance
• Features both internal and external strainers with a 0.433-inch inlet size
• Quick connect outlet with 3/8-inch size for easy installation
• Designed for in-tank installation with malefemale rectangular and round connectors
• Maximum pump pressure of 100 PSI and minimum of 80 PSI for consistent fuel delivery

Detailed Product Description

The Autobest F1201A fuel pump module assembly is engineered to provide dependable fuel delivery for Ford Windstar models. This in-tank fuel pump features a robust POM housing and includes a fuel sending unit, allowing for precise fuel level monitoring. The module is equipped with both internal and external strainers to protect the fuel system from contaminants. Its malefemale connectors with rectangular and round shapes ensure secure electrical connections. The fuel pump operates within a pressure range of 80 to 100 PSI, maintaining steady fuel flow rated at 34 GPH, which supports the engine’s performance requirements while drawing an average current of 7 amps.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Windstar vehicles
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sending units
• Eliminates fuel delivery interruptions caused by clogged strainers
• Addresses fuel leaks by providing a new NBR gasket seal

Installation Notes and Tips

The Autobest F1201A fuel pump module assembly is designed for direct in-tank installation with no special mounting hardware included. Ensure the fuel tank is properly drained and depressurized before removal. The module’s quick connect outlet and malefemale connectors simplify electrical and fuel line connections. Verify connector orientation and secure the NBR gasket to prevent leaks. No specific installation warnings are noted, but following manufacturer guidelines for fuel system service is recommended.

Quality Assurance and Warranty

Manufactured in China, the Autobest F1201A fuel pump module assembly meets performance-grade standards for durability and reliability. The product is available to order and includes a fuel sending unit and gasket for comprehensive replacement. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure consistent operation in Ford Windstar applications.
