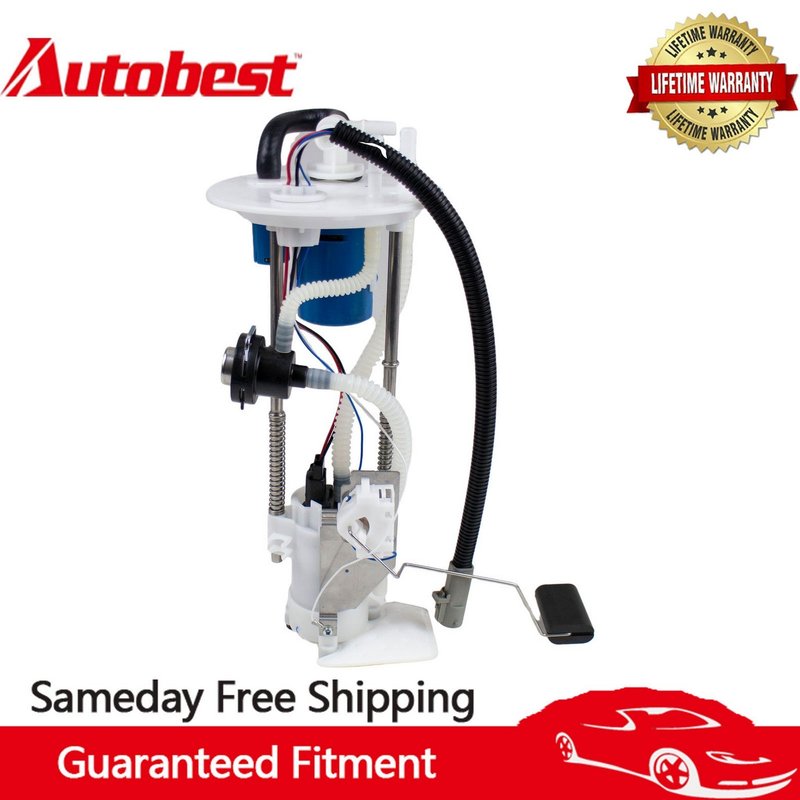

Autobest F1204A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1204A

The Autobest Fuel Pump Module Assembly F1204A is designed for reliable fuel delivery in select Ford and Mazda trucks. Engineered to meet the specific requirements of Ford Ranger and Mazda B-series models, this in-tank fuel pump module ensures consistent fuel flow and pressure for optimal engine performance.

• Average current draw of 6 amps for efficient power consumption
• Fuel flow rating of 31 gallons per hour (GPH) to support engine demands
• Includes fuel sending unit and FKM gasket for proper sealing
• Female round connector with one outlet and quick connect outlet type
• Maximum pump pressure of 68.2 PSI and minimum pressure of 62.3 PSI
• Internal strainer inlet type with 0.433 inch inlet size
• Compatible with Ford Ranger and Mazda B2300, B3000, B4000 models

Technical Details and Specifications

The F1204A fuel pump module assembly is an in-tank design that integrates the fuel pump and sending unit into a single module. It features a female round connector with one connection point, facilitating straightforward electrical hookup. The pump operates with an average current draw of 6 amps and delivers a steady fuel flow rated at 31 GPH, suitable for regular grade fuel systems. The internal strainer inlet prevents debris from entering the fuel system, while the included FKM gasket ensures a secure seal to prevent leaks. The outlet is a quick connect type with a 3/8 inch size, simplifying fuel line attachment. This module does not include a fuel filter or tank pressure sensor but comes with the necessary gasket or seal for installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford Ranger (various model years)
• Mazda B2300
• Mazda B3000
• Mazda B4000

It is designed to replace the original fuel pump module in these trucks, ensuring proper fuel delivery and accurate fuel level readings through the included sending unit.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel gauge readings due to faulty sending unit
• Low fuel pressure causing engine performance issues
• Fuel pump noise or overheating from worn components
• Leaks caused by degraded or missing gasket seals

Installation Notes and Tips

The Autobest F1204A fuel pump module assembly is designed for in-tank installation and includes the necessary FKM gasket for sealing. No mounting hardware is included, so reusing original hardware or sourcing compatible fasteners is recommended. The module features a female round connector and quick connect outlet for ease of installation. No special installation warnings are noted, but care should be taken to avoid contamination of the fuel system during replacement. Ensure the electrical connector is securely attached and the gasket is properly seated to prevent leaks.

Quality Assurance and Warranty Information

Manufactured in China, the Autobest F1204A fuel pump module assembly meets regular grade standards for fuel delivery components. It is available to order and backed by Autobest's quality control processes. While specific warranty details are not provided, Autobest products typically come with a limited warranty covering defects in materials and workmanship. Buyers should verify warranty terms with the distributor or installer.
