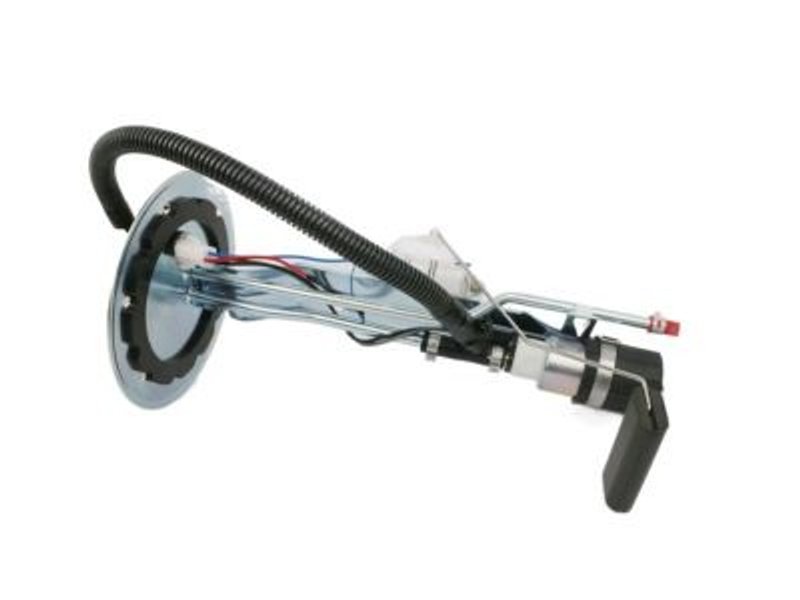

Autobest F1223A Fuel Pump and Sender Assembly
| Brand | Autobest F1223A |
|---|---|
| Average Current Draw(A) | 7 |
| Average Flow Rating(GPH) | 34 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Round |
| Country of Orign | China |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | Nbr |
| Grade Type | Performance |
| In Tank or External | In tank |
| Inlet Size | 0.433 |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | External |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 90 |
| Minimum Pump Pressure (PSI) | 70 |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 |
| Outlet Type | Quick connect |
| Package Contents | Fuel pump assembly |
| Package Height (in) | 7.28 |
| Package Length (in) | 18.11 |
| Package Width (in) | 7.28 |
| Product Height (in) | 6.69 |
| Product line | Fuel Pump and Sender Assembly |
| Fits | Ford · 1 vehicle |
Complete assembly. Includes the pump and sender for a streamlined fuel system replacement.
Ethanol-tolerant materials. Built for modern fuel systems that use ethanol-blended gasoline.
Turbine pump design. Delivers steady fuel flow with a 34 GPH average rating.
Cross-references Carter P74854S, Continental 67116 and Delphi HP10222 for the same application. See all 14.
Fuel Pump Assembly Overview
The Autobest F1223A fuel pump and sender assembly is built for fuel delivery service on the 2004 Ford F-150 Heritage. It combines the pump and sending unit in one in-tank assembly for a direct replacement approach on the listed application.
- In-tank fuel pump and sender assembly
- 12V turbine pump design with 34 GPH average flow rating
- 3/8 in. quick-connect outlet for common fuel line connections
- Includes fuel sending unit, strainer, and gasket/seal
- Built with ethanol-tolerant materials for modern fuel systems
Detailed Product Description
Autobest F1223A is a fuel pump and sender assembly engineered for the 2004 Ford F-150 Heritage. The in-tank turbine pump is rated at 70 to 90 PSI and draws an average of 7 amps, while the integrated sender provides fuel level signal support in one assembly. The unit uses a male round connector with four PIN terminals, a 3/8 in. quick-connect outlet, and an external strainer layout. The F1223A is a practical replacement for restoring fuel delivery and fuel level reporting when the original assembly is worn or inconsistent.
The Autobest fuel pump and sender assembly line focuses on complete fuel system service parts with quality materials and tested construction. The F1223A part number is also referenced by cross numbers such as Carter P74854S and Delphi HP10222 for the same application. If you are sourcing a fuel pump assembly for a Ford F-150 Heritage, this part number helps narrow the correct fit quickly.
Common Problems It Can Address
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Incorrect fuel gauge readings from a failing sender
- Loss of pump output from worn internal components
- Fuel system issues tied to a damaged tank-mounted assembly
Installation Notes and Tips
Verify connector style, outlet size, and tank configuration before installation. This assembly uses a male connector and a quick-connect outlet, so matching the existing fuel line and electrical connection is important. Confirm the vehicle application and compare the original unit before removal to reduce installation delays.
Quality Assurance
Autobest states that this assembly uses top-quality materials and is tested throughout manufacturing. The F1223A includes a limited lifetime warranty and is supplied as a complete fuel pump assembly for the listed application.
| Year | Make | Model | Drive Type | Liters | Cylinders | Fuel Type | Wheel Base | Notes |
|---|---|---|---|---|---|---|---|---|
| 2004 | Ford | F-150 Heritage | 4WD | 5.4L | V8 | BI-FUEL | 120.2" | Fuel Pump and Sender Assembly |
