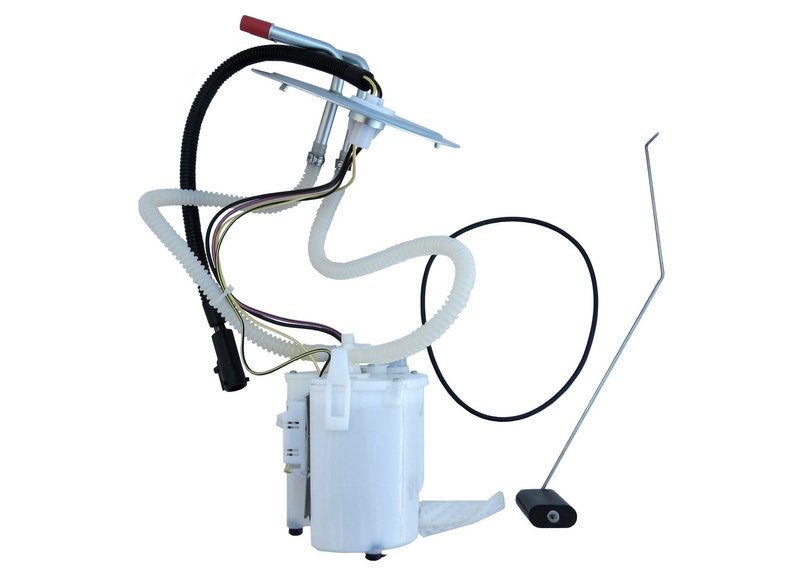

Autobest F1256A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1256A

The Autobest Fuel Pump Module Assembly F1256A is designed specifically for Ford F-250, F-250 Super Duty, and F-350 Super Duty models. This in-tank fuel pump module ensures reliable fuel delivery with a performance-grade design tailored to meet the demands of these heavy-duty trucks.

• Average current draw of 7.5 amps for efficient operation
• Fuel flow rating of 34 gallons per hour (GPH)
• Includes fuel sending unit and NBR gasket for proper sealing
• Constructed with durable POM housing material
• Features both internal and external strainers for fuel filtration
• Compatible with quick connect 3/8 inch outlet and 0.433 inch strainer inlet
• Designed for in-tank installation with a round, male connector
• Maximum pump pressure of 100 PSI and minimum of 80 PSI

About the Autobest Fuel Pump Module Assembly Line

The Autobest Fuel Pump Module Assembly product line focuses on delivering performance-grade fuel delivery components. This line integrates essential parts such as the fuel pump and sending unit into a single module, simplifying installation and ensuring compatibility with specific vehicle models. The F1256A model exemplifies this approach by combining reliable fuel flow and pressure control with durable materials and precise fitment for Ford Super Duty trucks.

Detailed Product Description

The F1256A fuel pump module assembly is engineered for in-tank installation, providing consistent fuel pressure between 80 and 100 PSI to support engine performance in Ford F-250 and F-350 Super Duty trucks. Its 7.5 amp average current draw balances power consumption and efficiency, while the 34 GPH flow rating meets the fuel demands of heavy-duty applications. The module includes a fuel sending unit for accurate fuel level readings and a NBR gasket to ensure a secure seal within the fuel tank. The housing is made from POM, a durable polymer that withstands harsh fuel environments. Both internal and external strainers help protect the fuel system from contaminants, and the quick connect outlet simplifies hose attachment during installation.

Common Applications and Issues Addressed

• Restores proper fuel delivery in Ford F-250 and F-350 Super Duty trucks
• Resolves fuel pressure inconsistencies causing engine performance issues
• Replaces faulty fuel sending units affecting fuel gauge accuracy
• Addresses fuel pump failures leading to engine stalling or no-start conditions
• Eliminates fuel contamination problems with integrated strainers

Installation Notes and Tips

The F1256A module is designed for direct replacement in compatible Ford Super Duty models. It features a single male round connector and quick connect outlet for straightforward electrical and fuel line connections. No mounting hardware is included, so retain original components during removal. The included NBR gasket should be inspected and replaced to ensure a proper seal. No special installation warnings are noted, but standard safety precautions when working with fuel systems should be followed.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet performance-grade standards and is available to order with consistent quality. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure reliable operation in Ford F-250, F-250 Super Duty, and F-350 Super Duty trucks.
