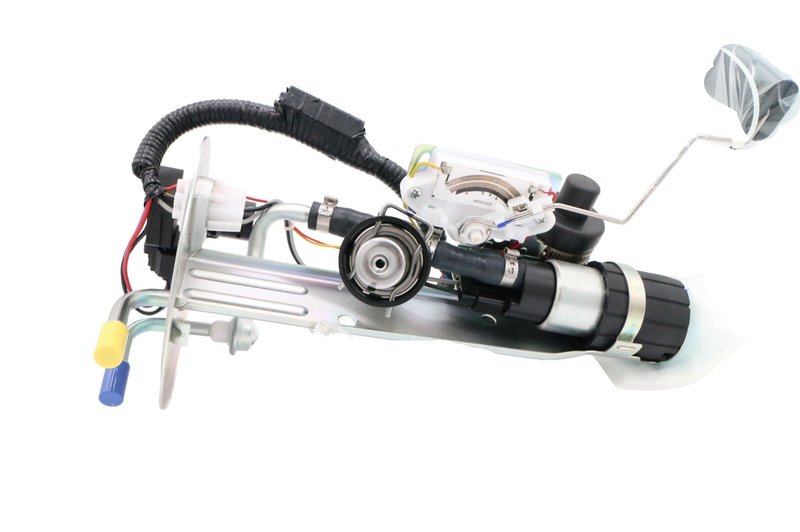

Autobest F1271A Fuel Pump and Sender Assembly

Overview of Autobest Fuel Pump and Sender Assembly F1271A

The Autobest Fuel Pump and Sender Assembly F1271A is designed for reliable fuel delivery in Ford Ranger and Mazda B3000 vehicles. This in-tank fuel pump assembly combines a fuel pump and sending unit to maintain consistent fuel flow and accurate fuel level readings.

• Average current draw: 7.5 amps for efficient power consumption
• Average flow rating: 42 gallons per hour (GPH) to support engine demands
• Maximum pump pressure: 59.45 PSI, minimum pressure: 56.55 PSI for stable fuel delivery
• Includes fuel sending unit and NBR gasket for proper sealing
• Connector configuration: two connectors with male and female genders, rectangle and round shapes
• External strainer design for improved filtration
• Inlet size: 0.311 inches; outlet size: 0.374 inches with hose bead outlet type
• Performance grade type suitable for demanding applications
• Country of origin: China

About the Fuel Pump and Sender Assembly Product Line

The Autobest Fuel Pump and Sender Assembly product line integrates both the fuel pump and fuel sending unit into a single assembly. This design simplifies replacement and ensures compatibility between components, providing consistent fuel pressure and accurate fuel level data. The F1271A model is part of this line, engineered to meet performance requirements for specific Ford and Mazda trucks.

Detailed Product Description

The F1271A fuel pump assembly is an in-tank unit engineered to deliver a steady fuel flow of 42 GPH while maintaining pump pressures between 56.55 and 59.45 PSI. Its average current draw of 7.5 amps balances power efficiency with performance. The assembly includes a fuel sending unit for precise fuel level monitoring and an NBR gasket to ensure a secure seal within the fuel tank. The external strainer helps protect the pump from debris, extending its service life. Connectors are designed with both male and female ends in rectangle and round shapes, facilitating proper electrical connections. This assembly is compatible with Ford Ranger and Mazda B3000 models, making it a suitable replacement part for these vehicles.

Common Applications and Issues Addressed

• Restores proper fuel pressure and flow in Ford Ranger and Mazda B3000 trucks
• Resolves inaccurate fuel gauge readings by replacing the fuel sending unit
• Eliminates engine hesitation or stalling caused by failing fuel pumps
• Addresses fuel delivery interruptions due to worn or damaged pump components
• Prevents fuel leaks with included NBR gasket for a secure tank seal

Installation Notes and Tips

This fuel pump and sender assembly is designed for in-tank installation with no special installation warnings. Ensure the fuel tank is properly drained and depressurized before removal. Verify connector compatibility with the vehicle’s wiring harness, noting the two connectors with male and female ends. Replace the gasket during installation to maintain a proper seal. No mounting hardware is included, so retain original components if needed.

Quality Assurance and Availability

The Autobest F1271A fuel pump and sender assembly is performance grade and currently available to order. It is manufactured to meet OEM specifications for Ford Ranger and Mazda B3000 models. The product includes a fuel sending unit and gasket to ensure reliable operation. Warranty details should be confirmed with the distributor or manufacturer.
