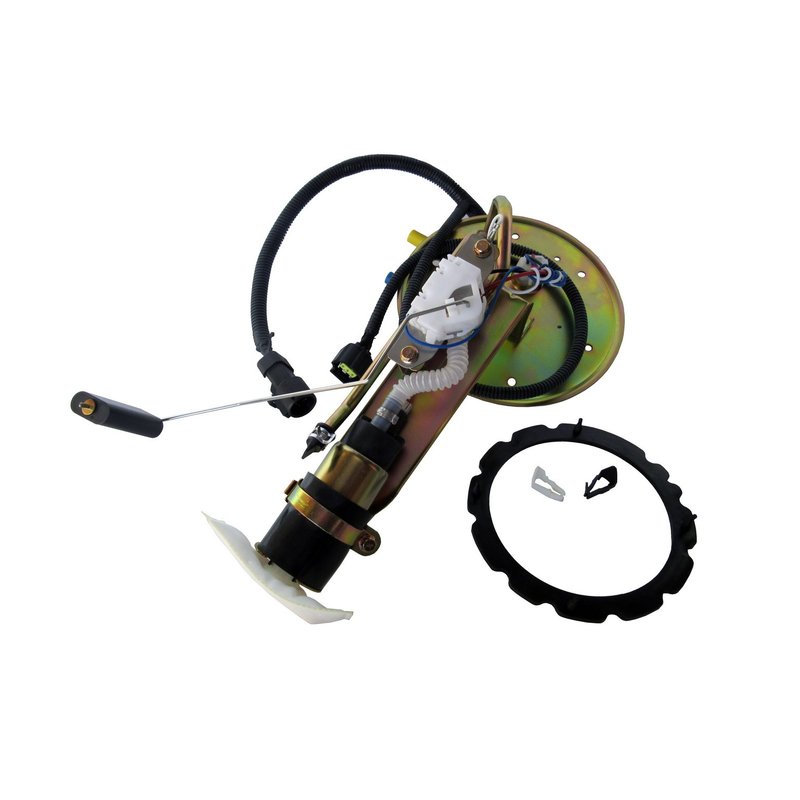

Autobest F1283A Fuel Pump and Sender Assembly

Reliable Fuel Pump and Sender Assembly for Ford, Lincoln, and Mercury

The Autobest F1283A fuel pump and sender assembly is designed specifically for in-tank installation on select Ford, Lincoln, and Mercury vehicles. Engineered to meet the fuel delivery needs of models like the Crown Victoria, Grand Marquis, and Town Car, this assembly ensures consistent fuel flow and accurate fuel level readings.

• Average current draw of 7 amps for efficient operation
• Fuel flow rating of 30.5 gallons per hour (GPH)
• Includes fuel sending unit and FKM gasket for secure sealing
• Internal strainer inlet type with 0.433-inch inlet size
• Quick connect 3/8-inch outlet for easy installation
• Compatible with female connectors, two total with rectangular and round shapes
• Maximum pump pressure of 108.8 PSI and minimum pressure of 79.8 PSI
• Designed for in-tank mounting with no installation warnings

Technical Details and Specifications

The Autobest F1283A fuel pump and sender assembly operates with an average current draw of 7 amps, delivering a steady fuel flow rated at 30.5 GPH. It features an internal strainer inlet sized at 0.433 inches to filter fuel before it reaches the pump, helping to maintain system cleanliness. The assembly includes a fuel sending unit for accurate fuel level measurement and an FKM gasket to ensure a reliable seal within the fuel tank. The outlet is a quick connect type with a 3/8-inch diameter, compatible with female connectors featuring both rectangular and round shapes. This assembly is designed for in-tank installation and is compatible with negative ground systems. It maintains fuel pressure between 79.8 and 108.8 PSI, suitable for regular grade fuel systems.

Compatible Vehicles and Applications

This fuel pump and sender assembly is compatible with the following vehicles:

• Ford Crown Victoria
• Lincoln Town Car
• Mercury Grand Marquis

Use the Autobest F1283A to replace worn or failing fuel pumps and sending units in these models, ensuring proper fuel delivery and accurate fuel gauge readings.

Common Issues Addressed by This Fuel Pump Assembly

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty sending unit
• Low fuel pressure affecting engine performance
• Fuel pump noise or overheating from inefficient operation
• Leaks or poor sealing within the fuel tank assembly

Installation Notes and Tips

The Autobest F1283A is designed for straightforward in-tank installation with no special warnings. Ensure the fuel tank is properly drained and depressurized before beginning installation. The included FKM gasket should be installed carefully to prevent leaks. Verify connector compatibility—this assembly uses two female connectors with rectangular and round shapes. No mounting hardware is included, so retain original components or source replacements as needed.

Quality Assurance and Warranty

Manufactured in China, the Autobest F1283A meets industry standards for fuel pump assemblies. It is available to order and backed by Autobest's quality control processes. While specific warranty details are not provided, Autobest products typically include limited warranties covering defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
