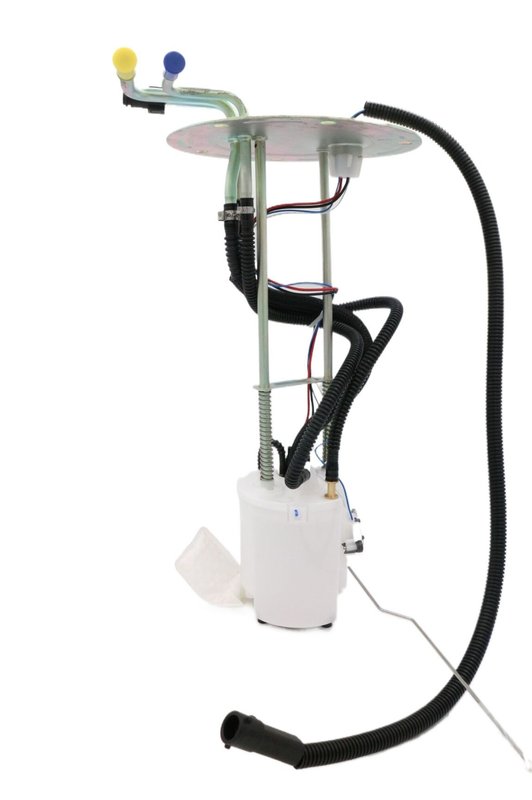

Autobest F1293A Fuel Pump Module Assembly - Rear

Fuel Pump Module Assembly Overview

Autobest F1293A is a fuel pump module assembly for rear-mounted applications on select Ford vans. It combines the pump module, fuel sending unit, gasket or seal, and strainer support for a direct replacement approach in the fuel tank.

Key Features

• In-tank turbine pump design with 12V operation and 8A average current draw.
• Delivers up to 34 GPH with a minimum pump pressure rating of 79.75 PSI.
• Includes a fuel sending unit, gasket or seal, and strainer.
• Male round connector with 4 PIN terminals for the electrical connection.
• Built with POM housing and NBR seal material for fuel system service.
• Limited Lifetime Warranty.

Detailed Description

This Autobest fuel pump module assembly is engineered for fuel delivery service where a complete in-tank replacement is needed. The F1293A uses a turbine-style pump, external and internal strainer support, and a fuel sending unit to restore fuel supply and tank level reporting in one assembly. Autobest states that the unit is made with quality materials and tested throughout manufacturing for durability and reliability, with improved ethanol tolerance for modern fuel systems. This part cross-references Airtex Fuel Pumps E2282M and Bosch 67164 for the same application.

Compatible With Ford E-150 Econoline, rear; Ford E-150 Econoline Club Wagon, rear; Ford E-250 Econoline, rear; Ford E-350 Econoline, rear; Ford E-350 Econoline Club Wagon, rear; and Ford Econoline Super Duty, rear. Use F1293A when replacing a rear fuel pump module assembly on these Ford E-Series applications.

Common Issues It May Solve

• Hard starting caused by weak fuel delivery.
• Inaccurate fuel level readings from a worn sending unit.
• Fuel starvation from a failing in-tank pump.
• Pressure loss in the fuel system under load.
• Service needs tied to a leaking or deteriorated tank seal.

Installation Notes and Tips

Confirm the vehicle uses a rear in-tank fuel pump module assembly before ordering. Verify connector style, terminal count, inlet and outlet sizing, and fuel system configuration against the original unit. The product listing does not state that mounting hardware or a wire harness is included, so plan to reuse or source those items separately if needed.

Quality Assurance

Autobest tests this fuel pump module assembly at multiple points during manufacturing and backs it with a Limited Lifetime Warranty. Part number F1293A is built for fuel system service where durability, ethanol tolerance, and consistent operation matter.
