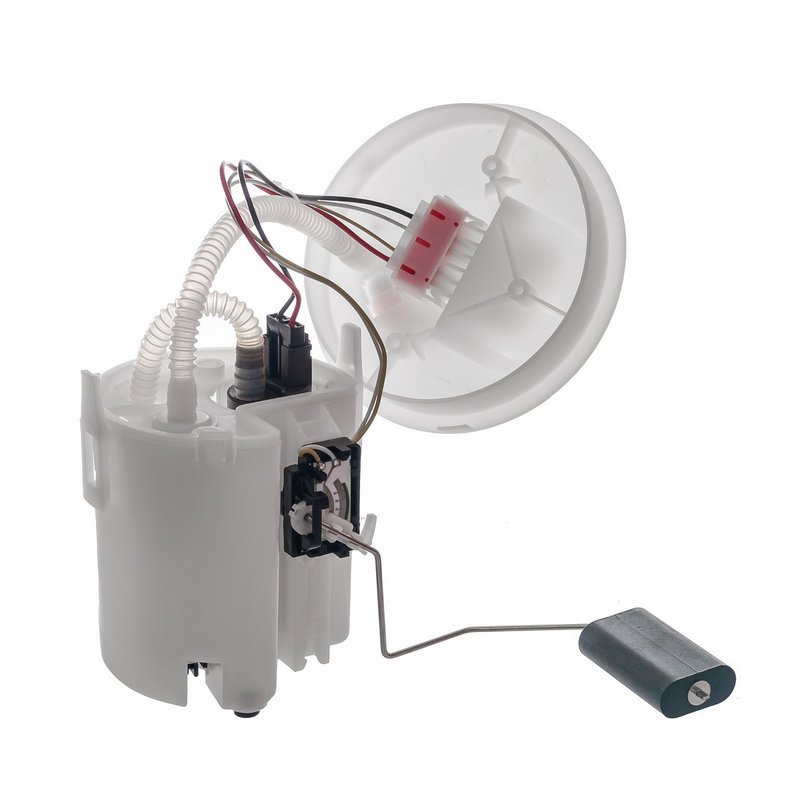

Autobest F1337A Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Focus

The Autobest F1337A fuel pump module assembly is designed specifically for Ford Focus models, providing consistent fuel delivery and performance. Engineered for in-tank installation, this module ensures efficient fuel flow and accurate fuel level readings.

• Average current draw of 9 amps for efficient power consumption
• Fuel flow rating of 48 gallons per hour (GPH) to meet engine demands
• Includes fuel sending unit and NBR gasket for precise fuel level monitoring and sealing
• Constructed with durable POM housing material for long-lasting operation
• Compatible with Ford Focus vehicles requiring an in-tank fuel pump module
• Features both internal and external strainers for effective fuel filtration
• Quick connect outlet with 5/16 inch size and male rectangular connector
• Maximum pump pressure of 100 PSI and minimum of 80 PSI for stable fuel delivery

Technical Details and Specifications

The Autobest F1337A fuel pump module assembly is built with performance-grade components to ensure reliable operation in Ford Focus vehicles. The module operates with an average current draw of 9 amps and delivers a fuel flow rate of 48 GPH, suitable for maintaining optimal engine performance. It features a male rectangular connector with one outlet and one inlet, designed for quick connect fittings with a 5/16 inch outlet size. The fuel pump module includes a fuel sending unit for accurate fuel level measurement and a NBR gasket to provide a secure seal within the fuel tank. The housing is made from POM material, known for its durability and resistance to fuel corrosion. Both internal and external strainers are incorporated to protect the fuel system from contaminants. This in-tank fuel pump module maintains fuel pressure between 80 and 100 PSI, ensuring consistent fuel delivery under various driving conditions.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Ford Focus models requiring an in-tank fuel pump replacement. It is designed to address common fuel system issues such as:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty sending units
• Fuel leaks or poor sealing from worn gaskets
• Reduced fuel pressure affecting engine performance
• Fuel contamination leading to clogged strainers and pump damage

Installation Notes and Tips

The Autobest F1337A fuel pump module assembly is designed for straightforward installation without special warnings. It is an in-tank unit, so proper safety precautions should be taken when accessing the fuel tank. The included NBR gasket should be installed to ensure a proper seal and prevent leaks. Verify connector orientation and secure the male rectangular connector firmly. No mounting hardware is included, so retain original components if applicable. Ensure the fuel system is depressurized before removal and installation to avoid fuel spillage.

Quality Assurance and Warranty

Manufactured to meet performance-grade standards, the Autobest F1337A fuel pump module assembly undergoes quality control to ensure reliable operation in Ford Focus vehicles. The product is available to order and includes a fuel sending unit and gasket for comprehensive replacement. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
