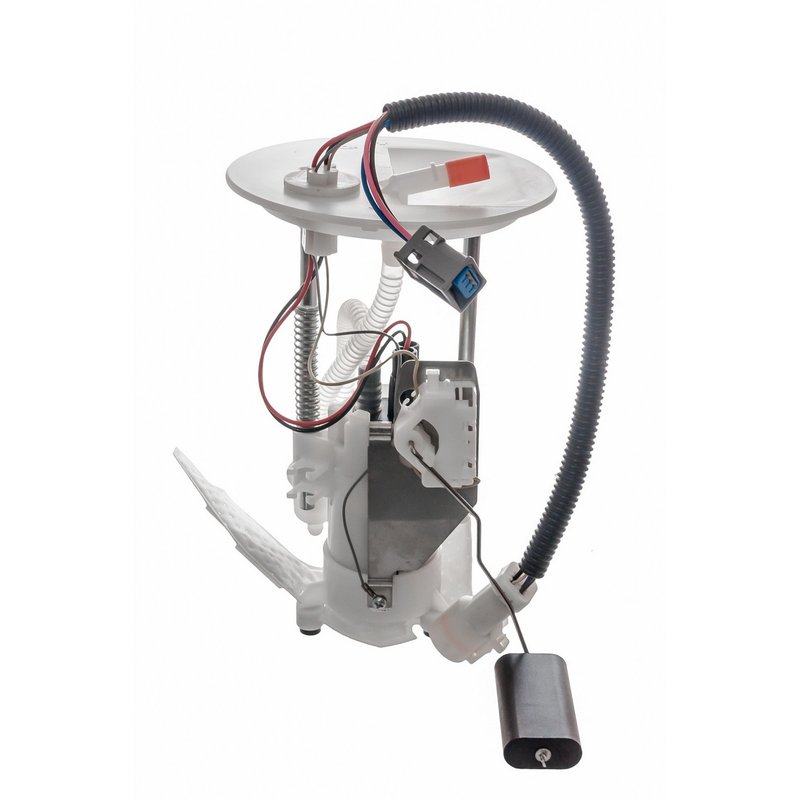

Autobest F1365A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1365A

The Autobest Fuel Pump Module Assembly F1365A is designed specifically for Lincoln Aviator models, providing reliable in-tank fuel delivery. Engineered to meet regular grade specifications, this module ensures consistent fuel flow and pressure for optimal engine performance.

• Average current draw of 11 amps for efficient power consumption
• Fuel flow rating of 53 gallons per hour (GPH) to support engine demands
• Includes fuel sending unit and FKM gasket for secure sealing
• Features two female connectors with rectangle and round shapes for proper fitment
• In-tank design with internal strainer and 0.433 inch inlet size
• Maximum pump pressure of 108.8 PSI and minimum pressure of 79.8 PSI
• Quick connect outlet with 3/8 inch size for easy installation

Technical Details and Specifications

The Autobest F1365A fuel pump module assembly is manufactured in China and designed for in-tank installation on Lincoln Aviator vehicles. It operates with an average current draw of 11 amps and delivers a fuel flow rate of 53 GPH, supporting the fuel system's requirements. The module includes a fuel sending unit but does not come with a fuel filter or tank pressure sensor. The gasket included is made from FKM material, ensuring a durable and reliable seal within the fuel tank. The assembly features two female connectors with a combination of rectangle and round shapes, facilitating proper electrical connections. The internal strainer protects the pump from debris, and the quick connect outlet simplifies the fuel line attachment process.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Lincoln Aviator models requiring part number F1365A. It is intended for use in fuel delivery systems where an in-tank pump module with these specifications is needed.

• Resolves fuel delivery issues such as inconsistent fuel pressure
• Addresses fuel gauge inaccuracies by including the fuel sending unit
• Replaces faulty or worn-out fuel pump modules in Lincoln Aviator vehicles
• Helps restore engine performance affected by fuel supply problems

Installation Notes and Tips

Installation of the Autobest F1365A fuel pump module assembly requires removal of the fuel tank for access. No special mounting hardware is included, so retain original components for reinstallation. The module features a quick connect outlet and two female connectors, so ensure proper alignment during connection. No specific installation warnings are noted, but standard safety precautions when working with fuel systems should be followed.

Quality Assurance and Warranty

The Autobest fuel pump module assembly F1365A is available to order and meets regular grade standards for fuel delivery components. It includes a fuel sending unit and FKM gasket to maintain system integrity. While specific warranty details are not provided, Autobest products typically adhere to industry quality standards to ensure reliable operation in compatible Lincoln Aviator vehicles.
