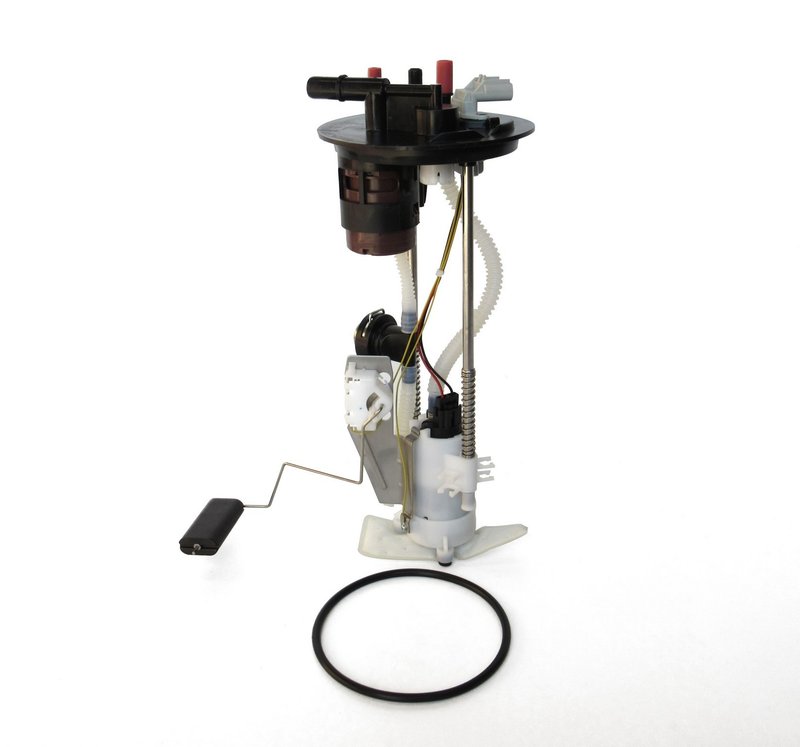

Autobest F1367A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1367A

The Autobest Fuel Pump Module Assembly F1367A is designed specifically for Ford Ranger models, providing reliable in-tank fuel delivery. Engineered to meet regular grade specifications, this module ensures consistent fuel flow and pressure for optimal engine performance.

• Average current draw: 7 Amps
• Average flow rating: 38.3 gallons per hour (GPH)
• Includes fuel sending unit and FKM gasket/seal
• In-tank installation with internal strainer and 0.433 inch inlet size
• Maximum pump pressure: 52.8 PSI; Minimum pump pressure: 48.7 PSI
• Single female rectangular connector and quick connect outlet (3/8 inch)
• Compatible with Ford Ranger fuel systems

Detailed Product Description

This Fuel Pump Module Assembly from Autobest is part of the Fuel Pump Module Assembly product line, which focuses on integrated fuel delivery solutions combining pump, sending unit, and sealing components. The F1367A module is designed for in-tank installation, featuring an internal strainer to protect the fuel system from contaminants. It operates within a pressure range of 48.7 to 52.8 PSI, delivering a steady flow rate of 38.3 GPH while drawing an average current of 7 amps. The module includes a fuel sending unit for accurate fuel level readings and an FKM gasket to ensure a secure seal. The single female rectangular connector and quick connect outlet simplify electrical and fuel line connections, making it suitable for Ford Ranger vehicles requiring precise fuel management.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Ranger models
• Restores proper fuel pressure and flow to improve engine performance
• Resolves inaccurate fuel level readings due to faulty sending units
• Prevents fuel leaks with included FKM gasket/seal
• Addresses fuel delivery interruptions caused by clogged or damaged strainers

Installation Notes and Tips

The F1367A Fuel Pump Module Assembly is designed for in-tank installation and includes the necessary gasket for sealing. No mounting hardware is included, so ensure existing hardware is in good condition or replaced as needed. The module features a single female rectangular connector and a quick connect outlet for straightforward electrical and fuel line connections. No special installation warnings are noted, but proper handling and safety precautions when working with fuel systems are recommended.

Quality Assurance and Warranty

Manufactured in China, the Autobest Fuel Pump Module Assembly F1367A is available to order and meets regular grade standards for fuel delivery components. The inclusion of a fuel sending unit and FKM gasket reflects attention to component integration and sealing quality. Warranty details are not specified but typically align with industry standards for fuel pump modules.
