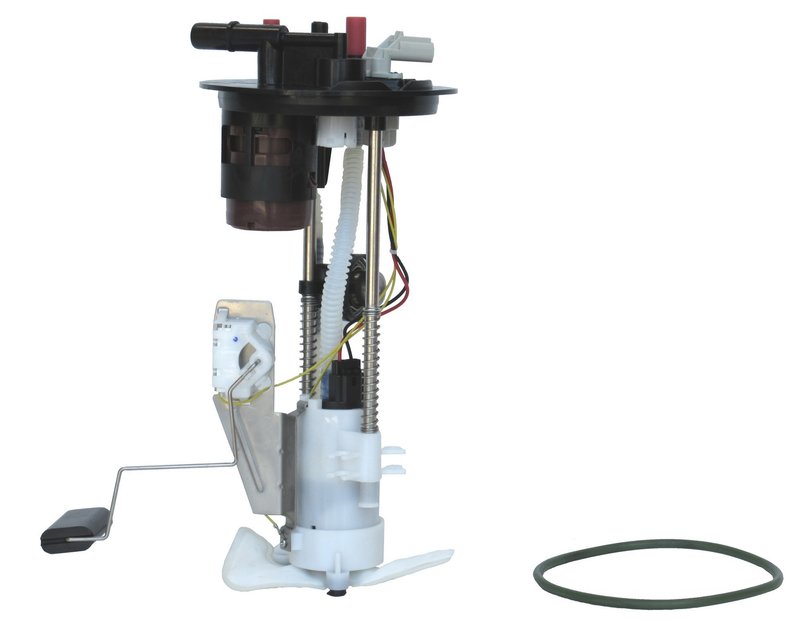

Autobest F1368A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1368A

The Autobest Fuel Pump Module Assembly F1368A is designed for reliable fuel delivery in select Ford and Mazda trucks. Engineered to meet the specific requirements of models like the Ford Ranger and Mazda B-series trucks, this in-tank fuel pump module ensures consistent performance and compatibility.

• Average current draw: 6 Amps for efficient power consumption
• Average flow rating: 30.4 gallons per hour (GPH)
• Includes fuel sending unit and FKM gasket for secure sealing
• Female rectangular connector with one connection point
• Internal strainer inlet type with 0.433 inch inlet size
• Maximum pump pressure: 68.2 PSI; minimum pump pressure: 62.3 PSI
• Quick connect outlet with 3/8 inch outlet size
• Designed for in-tank installation, compatible with Ford Ranger and Mazda B2300, B3000, B4000 models

About the Autobest Fuel Pump Module Assembly Line

The Autobest Fuel Pump Module Assembly product line focuses on delivering integrated fuel pump solutions that combine the pump, module, and fuel sending unit into a single assembly. This approach simplifies installation and ensures precise fitment and function for specific vehicle applications. The F1368A model exemplifies this line by providing a complete in-tank fuel delivery system tailored for Ford and Mazda trucks.

Detailed Product Description

The F1368A fuel pump module assembly operates with an average current draw of 6 amps, balancing power efficiency with performance. It delivers fuel at an average flow rate of 30.4 GPH, maintaining consistent pressure between 62.3 and 68.2 PSI to support engine demands. The module features a female rectangular connector with a single connection point, facilitating straightforward electrical integration. Its internal strainer inlet and quick connect outlet ensure clean fuel flow and ease of connection. The included fuel sending unit provides accurate fuel level readings, while the FKM gasket offers durable sealing to prevent leaks. This assembly is designed for in-tank installation, making it suitable for Ford Ranger and Mazda B-series trucks including B2300, B3000, and B4000.

Common Applications and Problem Resolution

• Replacement for failing or noisy fuel pumps in Ford Ranger and Mazda B-series trucks
• Restores proper fuel pressure and flow to improve engine performance
• Resolves inaccurate fuel level readings by including a fuel sending unit
• Eliminates fuel leaks with the included FKM gasket
• Addresses fuel delivery interruptions caused by clogged or damaged internal strainers

Installation Notes and Tips

The Autobest F1368A is designed for direct in-tank installation with no special mounting hardware included. Ensure the fuel tank is properly drained and depressurized before removal. The female rectangular connector and quick connect outlet simplify electrical and fuel line connections. No specific installation warnings are noted, but following manufacturer guidelines for fuel system service is recommended to ensure safety and proper fitment.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet regular grade standards and is available to order with assured compatibility for specified Ford and Mazda models. The product includes a durable FKM gasket for sealing integrity. Warranty details should be confirmed with the point of purchase or manufacturer documentation to verify coverage terms.
