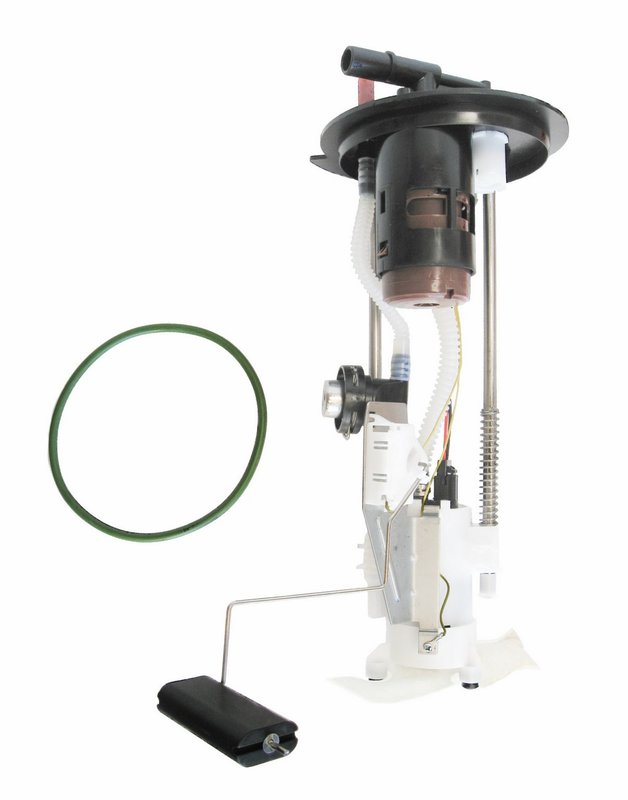

Autobest F1374A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1374A

The Autobest Fuel Pump Module Assembly F1374A is designed for reliable fuel delivery in select Ford and Mazda trucks. Engineered as an in-tank fuel pump module, it supports models including the Ford Ranger and Mazda B-series trucks, ensuring consistent fuel flow and pressure.

• Average current draw: 7 Amps for efficient power consumption
• Average flow rating: 38.3 gallons per hour (GPH)
• Includes fuel sending unit and FKM gasket for secure sealing
• Internal strainer inlet type with 0.433 inch inlet size
• Quick connect outlet with 3/8 inch size and one female rectangular connector
• Maximum pump pressure: 68.2 PSI; minimum pump pressure: 62.3 PSI
• Compatible with Ford B2300, B3000, B4000, Ranger and Mazda B2300, B3000, B4000 models

Technical Details and Specifications

This fuel pump module assembly operates within a pressure range of 62.3 to 68.2 PSI, providing stable fuel delivery for optimal engine performance. The unit features an internal strainer inlet to prevent debris from entering the fuel system, and the included fuel sending unit allows accurate fuel level readings. The FKM gasket material ensures a durable and chemical-resistant seal within the fuel tank. The module is designed with a single female rectangular connector and a quick connect outlet for straightforward electrical and fuel line connections.

Compatible Vehicles and Applications

The Autobest F1374A fuel pump module assembly is compatible with the following vehicles:

• Ford B2300, B3000, B4000
• Ford Ranger
• Mazda B2300, B3000, B4000

This part is ideal for replacing worn or failing fuel pump modules in these models, restoring proper fuel pressure and flow.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sending unit
• Reduced fuel pressure leading to poor engine performance
• Fuel leaks caused by degraded seals or gaskets
• Fuel pump noise or overheating from inefficient operation

Installation Notes and Tips

The Autobest F1374A is an in-tank fuel pump module assembly designed for direct replacement. No special installation warnings are noted, but it is recommended to relieve fuel system pressure before removal. Ensure the FKM gasket is properly seated to prevent leaks. The single female rectangular connector and quick connect outlet simplify electrical and fuel line connections. Mounting hardware is not included and may need to be reused from the original assembly.

Quality Assurance and Warranty

Manufactured in China, the Autobest F1374A fuel pump module assembly meets regular grade standards for fuel delivery components. It includes a fuel sending unit and FKM gasket to maintain system integrity. The product is available to order and backed by Autobest's quality control processes. Warranty details should be confirmed at the point of purchase.
