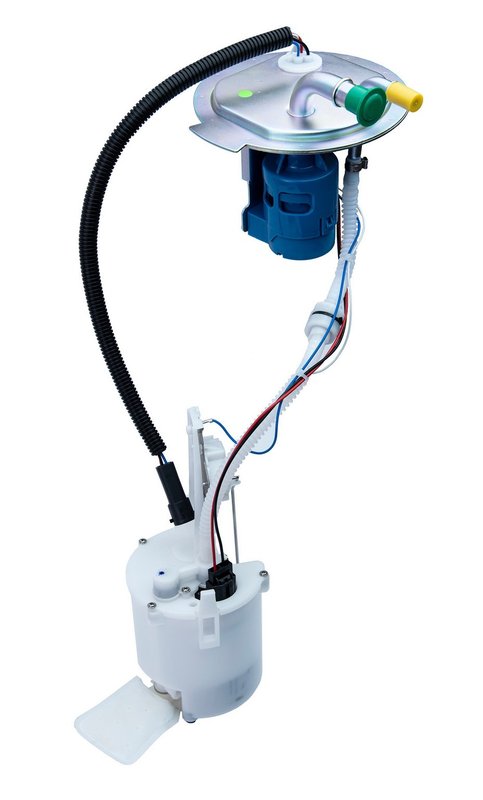

Autobest F1472A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1472A

The Autobest Fuel Pump Module Assembly F1472A is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This in-tank fuel pump module delivers consistent fuel flow and pressure to support engine performance and reliability.

• Average current draw of 9 amps for efficient power consumption
• Fuel flow rating of 48 gallons per hour (GPH) to meet performance demands
• Includes fuel sending unit and NBR gasket for accurate fuel level readings and secure sealing
• Constructed with durable POM housing material for long-lasting operation
• Compatible with external and internal strainers for effective fuel filtration
• Maximum pump pressure of 95 PSI and minimum of 85 PSI for stable fuel delivery
• Single male round connector with quick connect outlet for straightforward installation
• Designed as an in-tank assembly with a 0.433 inch strainer inlet and 3/8 inch quick connect outlet

Detailed Product Description

The Autobest F1472A fuel pump module assembly is engineered to provide reliable fuel delivery for Ford F-250 Super Duty and F-350 Super Duty trucks. Featuring a performance-grade design, this module operates with an average current draw of 9 amps and delivers a steady fuel flow of 48 GPH. The pump maintains fuel pressure between 85 and 95 PSI, ensuring consistent engine operation under various driving conditions.

This module includes a fuel sending unit for precise fuel level monitoring and a NBR gasket to prevent leaks and maintain a secure seal within the fuel tank. The housing is made from POM, a durable polymer that withstands the harsh environment inside the fuel tank. Both internal and external strainers are incorporated to protect the fuel system from contaminants.

Applications and Problem Solving

• Replaces faulty or worn fuel pump modules in Ford F-250 Super Duty and F-350 Super Duty trucks
• Resolves issues with inconsistent fuel pressure or flow affecting engine performance
• Addresses inaccurate fuel level readings due to a malfunctioning sending unit
• Eliminates fuel leaks by providing a reliable NBR gasket seal
• Improves fuel system reliability by filtering contaminants with integrated strainers

Installation Notes and Tips

The Autobest F1472A is designed as an in-tank fuel pump module assembly compatible with Ford F-250 Super Duty and F-350 Super Duty models. It features a single male round connector and a quick connect outlet for ease of connection. No mounting hardware is included, so ensure existing hardware is in good condition or replaced as needed. Installation should be performed by a qualified technician familiar with fuel system components to maintain safety and proper function.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet performance-grade standards and is available to order. It includes a fuel sending unit and a NBR gasket to ensure durability and proper sealing. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to support reliable operation in Ford F-250 Super Duty and F-350 Super Duty vehicles.
