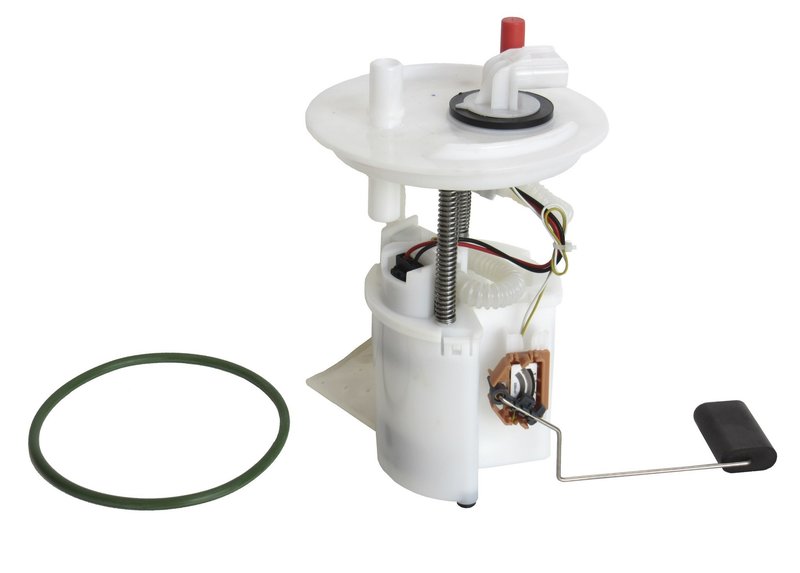

Autobest F1478A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1478A

The Autobest Fuel Pump Module Assembly F1478A is designed specifically for Ford Five Hundred and Mercury Montego models. This in-tank fuel pump module ensures consistent fuel delivery with a performance-grade design tailored to meet the demands of these vehicles.

• Average current draw of 9 amps for efficient power consumption
• Fuel flow rating of 42 gallons per hour (GPH) to maintain optimal engine performance
• Includes fuel sending unit and NBR gasket for reliable sealing
• Constructed with durable POM housing material for long-lasting use
• Compatible with Ford Five Hundred and Mercury Montego models
• Features both internal and external strainers for enhanced fuel filtration
• Quick connect outlet with 3/8 inch size for easy installation
• Maximum pump pressure of 100 PSI and minimum of 80 PSI for stable fuel delivery

Technical Details and Specifications

The Autobest F1478A fuel pump module assembly operates within a pressure range of 80 to 100 PSI, ensuring steady fuel supply under various driving conditions. It draws an average current of 9 amps and delivers fuel at a rate of 42 GPH, suitable for maintaining engine efficiency in Ford Five Hundred and Mercury Montego vehicles. The module includes a male rectangular connector with one connection point, simplifying electrical integration. The fuel pump is housed in a POM material casing, known for its chemical resistance and durability. Both internal and external strainers are incorporated to protect the fuel system from contaminants, although a separate fuel filter is not included. The assembly comes with a NBR gasket to ensure a secure seal within the fuel tank.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford Five Hundred
• Mercury Montego

It is designed for in-tank installation and is suitable for addressing common fuel delivery issues such as inconsistent fuel pressure, engine stalling, and poor acceleration.

Common Issues Addressed by This Fuel Pump Module

• Intermittent engine stalling due to fuel starvation
• Low fuel pressure causing poor engine performance
• Fuel sending unit failure affecting fuel gauge accuracy
• Fuel pump noise or failure impacting drivability
• Contaminant intrusion leading to clogged fuel lines

Installation Notes and Tips

The Autobest F1478A fuel pump module assembly is designed for straightforward in-tank installation with no special warnings. It includes the fuel sending unit and gasket but does not come with mounting hardware, so reusing existing hardware or sourcing separately may be necessary. The quick connect outlet and single male rectangular connector simplify electrical and fuel line connections. Ensure the fuel tank is clean before installation to prevent contamination. Proper sealing with the included NBR gasket is essential to avoid leaks.

Quality Assurance and Warranty

Manufactured in China, the Autobest F1478A meets performance-grade standards for fuel pump modules. The product is available to order and backed by Autobest's quality control processes. While specific warranty details are not provided, Autobest typically offers coverage against manufacturing defects. Buyers should verify warranty terms at the time of purchase.
