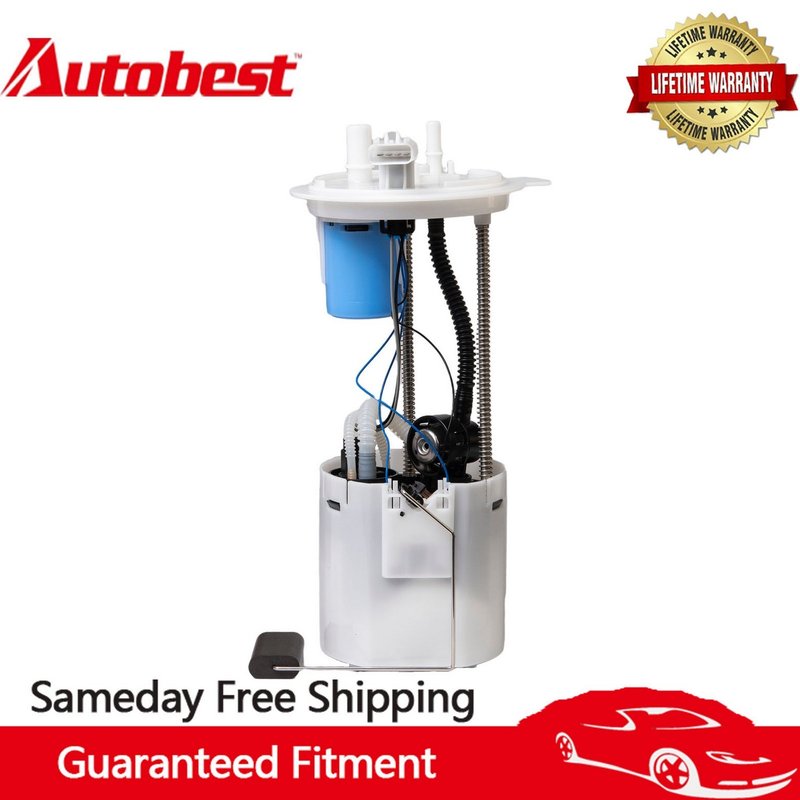

Autobest F1538A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1538A

The Autobest Fuel Pump Module Assembly F1538A is designed specifically for Ford E-150, E-250, and E-350 Super Duty models. This in-tank fuel pump module ensures reliable fuel delivery with integrated components for efficient operation.

• Average current draw: 13 Amps
• Average flow rating: 50.2 gallons per hour (GPH)
• Includes fuel filter and fuel sending unit
• Connector: 1 male rectangular connector
• Fuel pump pressure range: 55 to 65 PSI
• Inlet size: 0.433 inches with internal strainer
• Outlet: single 3/8 inch quick connect
• Gasket included, made of FKM material
• Housing constructed from durable POM material
• Negative ground compatible

About the Autobest Fuel Pump Module Assembly Line

The Fuel Pump Module Assembly line by Autobest integrates multiple fuel delivery components into a single unit, simplifying installation and maintenance. This assembly includes the fuel pump, fuel filter, sending unit, and gasket, designed to meet the specifications required for Ford E-Series vans. The modular design supports consistent fuel flow and pressure, contributing to stable engine performance.

Detailed Product Description

The Autobest F1538A fuel pump module assembly is an in-tank unit engineered to provide steady fuel flow and pressure for Ford E-150, E-250, and E-350 Super Duty vehicles. With an average flow rating of 50.2 GPH and operating pressure between 55 and 65 PSI, it supports the fuel demands of these models effectively. The module features a single male rectangular connector and a quick connect outlet for straightforward electrical and fuel line connections. The included fuel filter and sending unit ensure clean fuel delivery and accurate fuel level readings. The gasket, made from FKM material, provides a reliable seal to prevent leaks. The housing is constructed from POM, a durable plastic that withstands fuel exposure and heat. This assembly operates on a negative ground system and includes an internal strainer to protect the pump from debris.

Common Applications and Problem Resolution

• Restores proper fuel delivery in Ford E-150, E-250, and E-350 Super Duty vans
• Replaces failing or noisy fuel pumps causing engine hesitation or stalling
• Addresses inaccurate fuel level readings by replacing the sending unit
• Eliminates fuel leaks with included FKM gasket
• Improves fuel system reliability by integrating filter and pump in one assembly

Installation Notes and Tips

This fuel pump module assembly is designed for in-tank installation with no special mounting hardware included. Ensure the fuel tank is properly drained and cleaned before installation. The single male rectangular connector and quick connect outlet simplify electrical and fuel line connections. Verify compatibility with Ford E-150, E-250, and E-350 Super Duty models before installation. No specific installation warnings are noted, but standard safety precautions when working with fuel systems should be followed.

Quality Assurance and Warranty

The Autobest Fuel Pump Module Assembly F1538A is manufactured to meet OEM specifications and is available to order with quality assurance. It includes all necessary components such as the fuel filter, sending unit, and gasket to ensure a complete replacement. Warranty details should be confirmed with the distributor or retailer, as they may vary.
