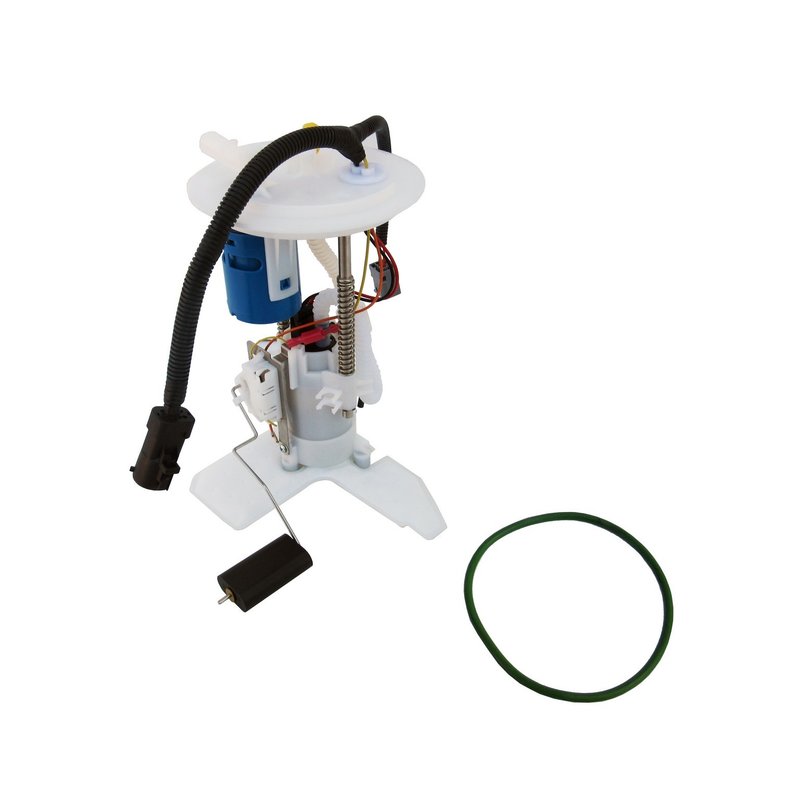

Autobest F1564A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F1564A

The Autobest Fuel Pump Module Assembly F1564A is designed for reliable fuel delivery in Ford and Mercury vehicles, specifically compatible with Explorer, Explorer Sport Trac, and Mountaineer models. This in-tank fuel pump module ensures consistent fuel flow and pressure to maintain engine performance.

• Average current draw: 11.5 amps
• Average flow rating: 51.5 gallons per hour (GPH)
• Includes fuel sending unit and FKM gasket
• Connector type: Female with two connectors (rectangle and round shapes)
• Maximum pump pressure: 108.8 PSI; minimum pump pressure: 79.8 PSI
• Inlet size: 0.433 inches with internal strainer
• Outlet size: 3/8 inch quick connect
• In-tank installation type

About the Fuel Pump Module Assembly Product Line

The Autobest Fuel Pump Module Assembly line focuses on integrated fuel delivery solutions that combine the pump and sending unit into a single module. This design simplifies installation and replacement while maintaining precise fuel flow and pressure control. The F1564A model is part of this line, offering compatibility with select Ford and Mercury vehicles and engineered to meet regular grade performance standards.

Detailed Product Description

The F1564A fuel pump module assembly operates with an average current draw of 11.5 amps and delivers a flow rate of 51.5 GPH, suitable for maintaining optimal fuel supply in Ford Explorer, Explorer Sport Trac, and Mercury Mountaineer vehicles. It features a female connector with two connection points, combining rectangular and round shapes for secure electrical connections. The module includes a fuel sending unit for accurate fuel level readings and an FKM gasket to ensure a proper seal within the fuel tank. The pump operates within a pressure range of 79.8 to 108.8 PSI, supporting consistent engine performance. Its internal strainer inlet and quick connect outlet facilitate efficient fuel filtration and connection. This in-tank assembly is designed for straightforward replacement without additional mounting hardware.

Common Applications and Issues Addressed

• Restores proper fuel pressure and flow in Ford Explorer and Mercury Mountaineer
• Resolves fuel level sending unit malfunctions
• Eliminates fuel delivery interruptions caused by faulty pumps
• Prevents engine stalling or hesitation due to inconsistent fuel supply
• Replaces worn or leaking fuel pump modules to maintain fuel system integrity

Installation Notes and Tips

The Autobest F1564A fuel pump module assembly is designed for in-tank installation with no special mounting hardware included. Ensure the fuel tank is properly drained and depressurized before removal. The included FKM gasket should be inspected and replaced during installation to prevent leaks. Connectors are female with two connection points, so verify compatibility with the vehicle’s wiring harness. No specific installation warnings are noted, but following manufacturer service guidelines is recommended.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet regular grade standards and is available to order. It includes a fuel sending unit and a high-quality FKM gasket for sealing. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure reliable performance in compatible Ford and Mercury vehicles.
