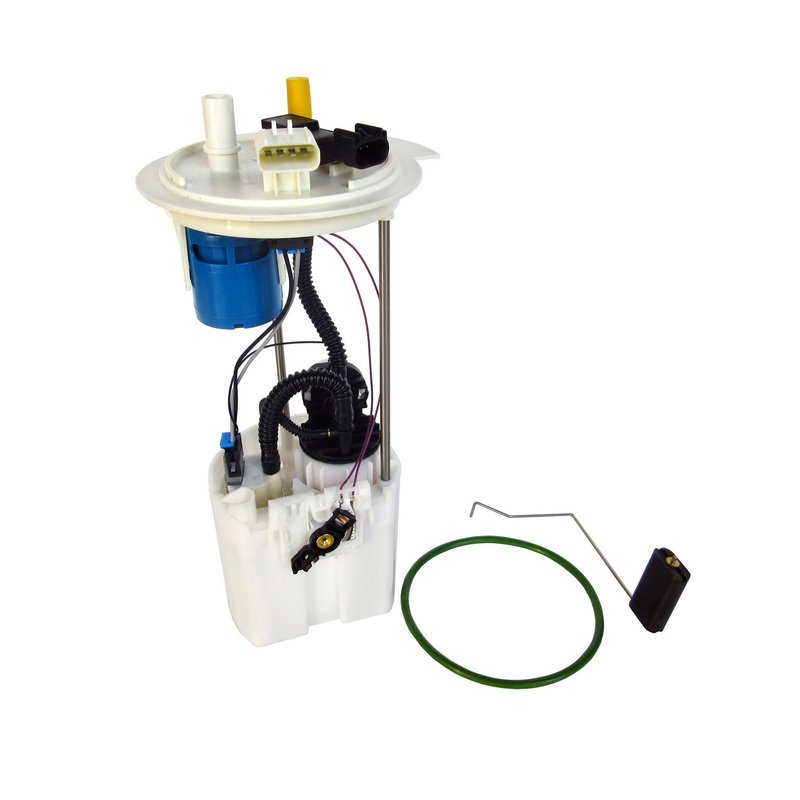

Autobest F1592A Fuel Pump Module Assembly - Front

Fuel Pump Module Assembly for Ford E-Series

The Autobest F1592A fuel pump module assembly is built for direct replacement in select Ford E-150, E-250, and E-350 Super Duty applications. It includes the components needed for a complete installation and is engineered with ethanol-tolerant materials for modern fuel systems.

As part of Autobest’s Fuel Pump Module Assembly line, this unit focuses on complete tank-side fuel delivery service with the pump, sending unit, fuel filter, tank pressure sensor, gasket/seal, and related module components in one assembly.

Key Features

• Part number F1592A fuel pump module assembly
• In-tank turbine pump design with 12V operation
• Average current draw: 13A
• Average flow rating: 60.8 GPH
• Operating pressure range: 58 to 63.8 PSI
• Includes fuel filter, fuel sending unit, fuel tank pressure sensor, strainer, and gasket/seal
• Female connector with 1 connector, rectangle shape
• 3/8 in. quick-connect outlet and 0.433 in. inlet
• FKM seal material and POM housing material
• Negative ground, 4-pin male terminal configuration
• Limited lifetime warranty

Detailed Description

Autobest F1592A is a complete fuel pump module assembly for Ford E-Series vans and chassis applications that require an in-tank replacement unit. It is built with top-grade components and tested throughout the manufacturing process to support consistent fuel delivery, proper tank pressure sensing, and accurate fuel level reporting where equipped. This part cross-references Delphi FG1478 for the same application.

Compatible With 2011-2016 Ford E-350 Super Duty, center tank configurations with or without auxiliary fuel port, including listed 2-tube-port variants; 2011-2014 Ford E-150 and E-250 configurations shown in the fitment data; and 2017-2019 Ford E-350 Super Duty, front position, with 2 tube ports. Use F1592A when replacing a worn module on Ford E-150, Ford E-250, or Ford E-350 Super Duty fuel systems that match the listed tank and port configurations.

What This Part Helps Address

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent pump output
• Fuel pressure loss in the tank module assembly
• Incorrect fuel level readings from a failing sending unit
• Fuel system warning concerns tied to the tank pressure sensor

Installation Notes and Tips

Verify tank configuration, port count, and sensor requirements before installation. This module uses a female connector, 4-pin male terminals, and a quick-connect outlet, so connector and line match-up should be confirmed against the vehicle’s original setup. The assembly is supplied without mounting hardware and without a wire harness.

For fitment-based searches, this part is commonly referenced for Ford E-150 fuel pump module assembly replacement, Ford E-250 in-tank fuel pump service, and Ford E-350 Super Duty fuel pump module replacement on the listed model years and tank configurations.

Quality Assurance

Autobest states that only top-quality materials are used and that each pump is tested during manufacturing. The F1592A is supplied with a 12 month unlimited mileage warranty and is built with ethanol-tolerant materials for today’s fuel systems.
