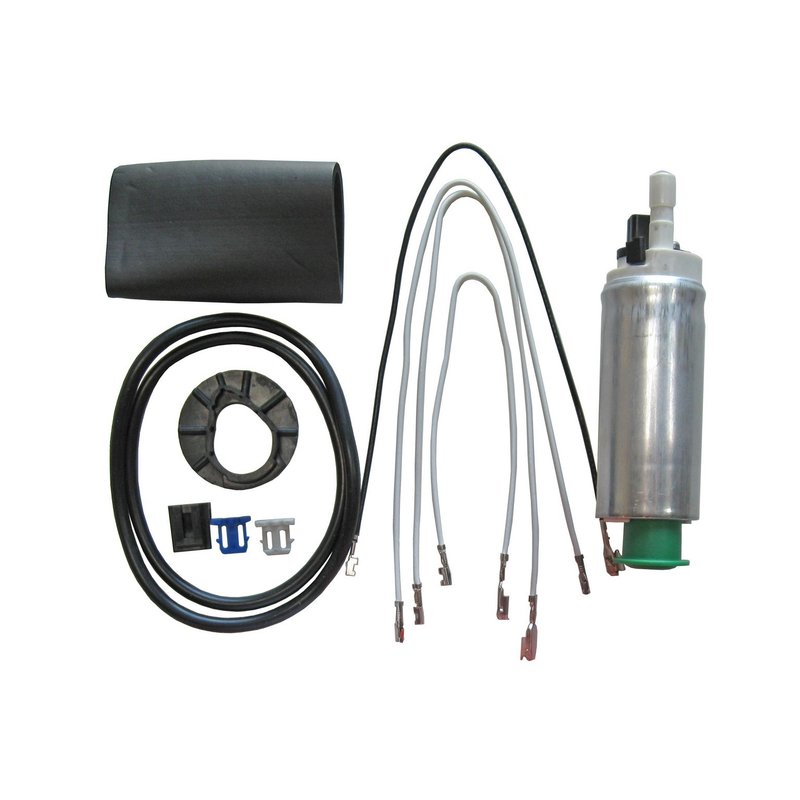

Autobest F2223 Electric Fuel Pump

Overview of the Autobest F2223 Electric Fuel Pump

The Autobest F2223 electric fuel pump is designed for reliable fuel delivery in a range of GM vehicles including Buick, Cadillac, Chevrolet, GMC, Oldsmobile, and Pontiac models. This in-tank turbine pump offers consistent flow and pressure to support engine performance in compatible vehicles.

• Average flow rating of 125 gallons per hour (GPH)
• Average current draw of 4 amps for efficient operation
• Maximum pump pressure of 123.25 PSI and minimum pressure of 79.8 PSI
• Male rectangular connector with one connector and one outlet
• External strainer with a 0.748-inch inlet size and 0.31-inch male quick connect outlet
• Designed as an in-tank turbine pump without a regulator or gasket included
• Compatible with multiple GM models such as Chevrolet C2500, Buick Century, Cadillac DeVille, and Pontiac Grand Am

Technical Details and Specifications

The Autobest F2223 is a performance-grade electric fuel pump engineered for in-tank installation. It features a turbine pump type that ensures steady fuel flow and pressure, supporting engine demands under various driving conditions. The pump’s external strainer helps protect the fuel system by filtering contaminants before fuel enters the pump. With a single male rectangular connector and a male quick connect outlet, installation is straightforward on compatible GM vehicles. The pump operates at an average current draw of 4 amps, balancing power consumption and performance.

Compatible Vehicles and Applications

This electric fuel pump is compatible with a wide range of GM vehicles, including but not limited to:

• Buick Century, Skylark, and Regal
• Cadillac DeVille, Eldorado, and Seville
• Chevrolet C2500, C3500, Lumina, and Cavalier
• GMC K2500, K3500, and P3500
• Oldsmobile Cutlass Calais and Firenza
• Pontiac Grand Am, Sunbird, and Skyhawk

Use the Autobest F2223 to replace failing or underperforming fuel pumps in these models to restore proper fuel delivery and engine operation.

Common Issues Addressed by the Autobest F2223

• Fuel delivery interruptions causing engine hesitation or stalling
• Low fuel pressure affecting engine performance and fuel efficiency
• Electrical issues related to fuel pump current draw
• Fuel pump noise or failure due to worn internal components
• Contaminated fuel causing clogging or pump damage

Installation Notes and Tips

The Autobest F2223 is designed for in-tank installation and does not include a gasket or seal, so ensure the existing seal is inspected or replaced during installation. The pump’s male rectangular connector and male quick connect outlet simplify wiring and fuel line connections. No special installation warnings are noted, but it is recommended to follow vehicle-specific service manuals for safe and proper installation procedures.

Quality Assurance and Warranty

Manufactured in China, the Autobest F2223 meets performance-grade standards for electric fuel pumps. It is available to order and backed by Autobest’s quality control processes. Please consult the product packaging or supplier for specific warranty details related to this part number.
