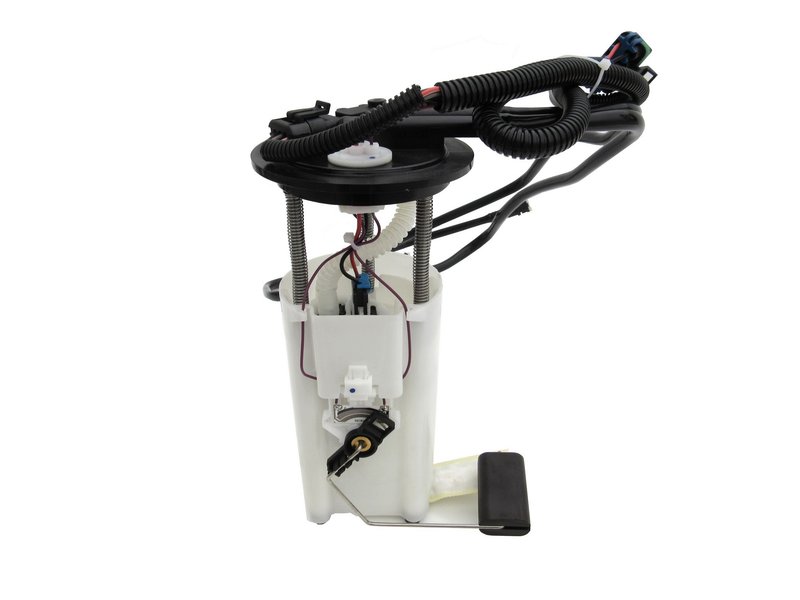

Autobest F2501A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2501A

The Autobest Fuel Pump Module Assembly F2501A is designed for reliable fuel delivery in select Chevrolet, Pontiac, and Saturn vehicles. This in-tank fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance for models like the Chevrolet Cobalt, Pontiac G4, Ion, and Saturn Pursuit.

• Average current draw: 7 Amps
• Average flow rating: 33 gallons per hour (GPH)
• Includes fuel sending unit and fuel tank pressure sensor
• Connector: 1 female rectangular quick connect
• Inlet size: 5/16 inch, outlet size: 3/8 inch, both quick connect
• Housing material: POM (polyoxymethylene) for durability
• Includes NBR gasket/seal for secure installation
• Maximum pump pressure: 145 PSI; minimum pump pressure: 87 PSI
• Grade type: Regular, designed for standard fuel systems

About the Fuel Pump Module Assembly Product Line

The Autobest Fuel Pump Module Assembly product line focuses on integrated fuel delivery solutions that combine the pump, sending unit, and pressure sensor into a single module. This design simplifies installation and ensures compatibility with factory fuel systems. The F2501A model exemplifies this approach by including essential components like the fuel sending unit and tank pressure sensor, providing a comprehensive replacement part for compatible vehicles.

Detailed Product Description

The F2501A fuel pump module assembly is engineered to maintain consistent fuel flow and pressure within the specified range of 87 to 145 PSI. Its average flow rating of 33 GPH supports efficient fuel delivery for the Chevrolet Cobalt, Pontiac G4, Ion, and Saturn Pursuit. The module features a female rectangular connector with a single quick connect inlet and outlet, facilitating straightforward electrical and fuel line connections. Constructed with a durable POM housing and equipped with an NBR gasket, this module is designed for in-tank installation, ensuring a secure and leak-resistant fit.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet Cobalt, Pontiac G4, Ion, and Saturn Pursuit
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Addresses faulty fuel sending unit readings affecting fuel gauge accuracy
• Fixes issues related to fuel tank pressure sensor malfunctions impacting engine performance
• Eliminates fuel leaks by providing a new gasket/seal for proper sealing

Installation Notes and Tips

• Designed for in-tank installation; ensure proper safety precautions when accessing the fuel tank
• No mounting hardware included; reuse existing hardware or source separately as needed
• Connector is female rectangular type with one connection point; verify compatibility before installation
• Quick connect inlet and outlet fittings simplify fuel line attachment
• Installation warnings are not specified, but follow manufacturer guidelines and safety protocols

Quality Assurance and Warranty

The Autobest Fuel Pump Module Assembly F2501A is manufactured to meet regular grade standards with quality materials such as POM housing and NBR seals. It is available to order and includes a fuel sending unit and tank pressure sensor for comprehensive functionality. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
