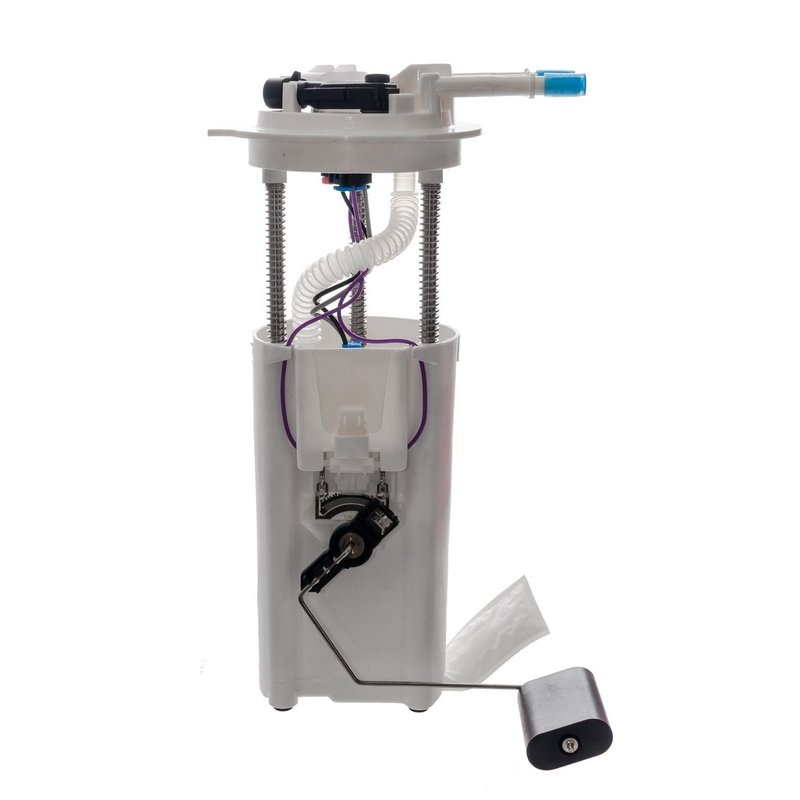

Autobest F2509A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2509A

The Autobest Fuel Pump Module Assembly F2509A is designed specifically for Pontiac Montana vehicles, providing reliable in-tank fuel delivery. Engineered to meet regular grade standards, this module integrates essential components to maintain optimal fuel system performance.

• Average current draw of 11 amps for efficient power consumption
• Fuel flow rating of 42.2 gallons per hour (GPH)
• Includes fuel sending unit and fuel tank pressure sensor
• Equipped with a male rectangular connector, single connector quantity
• Inlet and outlet quick connect fittings sized 5/16 inch and 3/8 inch respectively
• Includes NBR gasket/seal for secure installation
• Constructed with durable POM housing material
• Designed for in-tank installation with pressure range between 87 and 145 PSI

Technical Details and Specifications

The F2509A fuel pump module assembly from Autobest is manufactured in China and built to fit Pontiac Montana models. It features a single male rectangular connector for straightforward electrical connection. The module operates with an average current draw of 11 amps and delivers a fuel flow rate of 42.2 GPH, suitable for maintaining consistent fuel pressure between 87 and 145 PSI. The housing is made from POM material, ensuring durability within the fuel tank environment. This assembly includes a fuel sending unit and a fuel tank pressure sensor, providing accurate fuel level readings and pressure monitoring. The included NBR gasket ensures a proper seal to prevent leaks during operation.

Compatible Applications and Common Issues Addressed

This fuel pump module assembly is compatible with Pontiac Montana vehicles requiring replacement of the in-tank fuel pump system. It is designed to address several common fuel delivery problems, including:

• Intermittent or complete fuel pump failure causing engine stalling or no start conditions
• Inaccurate fuel level readings due to faulty sending units
• Fuel pressure irregularities affecting engine performance
• Leaks caused by worn or damaged seals and gaskets
• Electrical connection issues related to connector corrosion or damage

Installation Notes and Tips

The Autobest F2509A fuel pump module assembly is designed for direct in-tank installation with quick connect inlet and outlet fittings for ease of replacement. No special mounting hardware is included, so retain original components if possible. The module does not require a negative ground connection. Installation should be performed with care to avoid damage to the fuel tank and associated components. Ensure all electrical connections are secure and the NBR gasket is properly seated to prevent leaks. No specific installation warnings are noted, but following manufacturer guidelines for fuel system service is recommended.

Quality Assurance and Warranty Information

Autobest provides this fuel pump module assembly with a life cycle status code indicating it is available to order and supported. The product meets regular grade standards and is manufactured with quality materials such as POM housing and NBR seals. While specific warranty details are not provided, Autobest products typically come with coverage against manufacturing defects. Buyers should verify warranty terms at the time of purchase.
