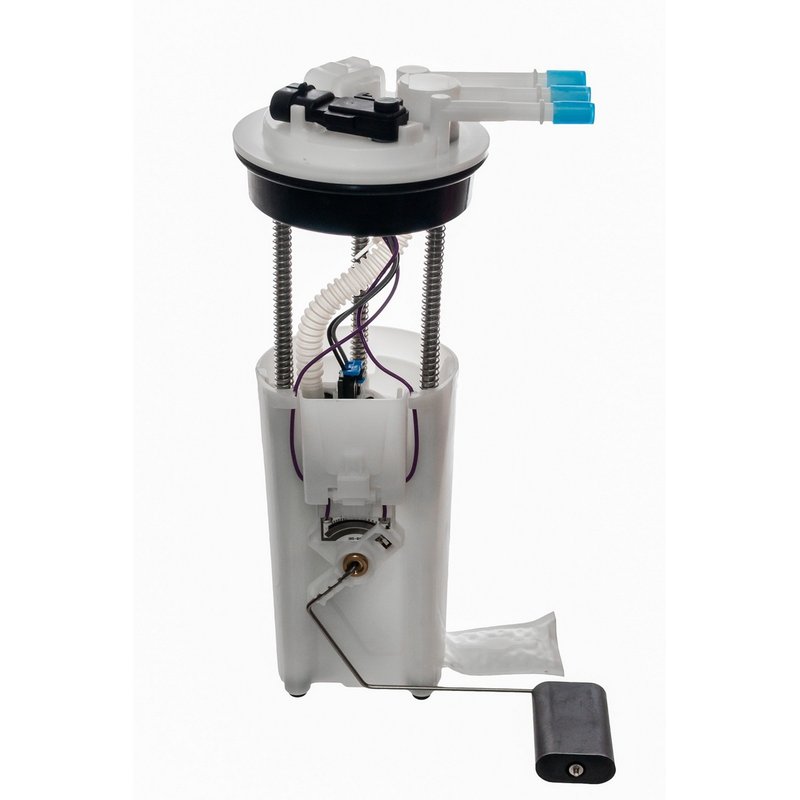

Autobest F2520A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2520A

The Autobest Fuel Pump Module Assembly F2520A is designed specifically for Buick Grand Prix and Pontiac Regal models. This in-tank fuel pump module ensures reliable fuel delivery with integrated components to maintain optimal engine performance.

• Average current draw: 8.5 amps for efficient power consumption
• Average flow rating: 41 gallons per hour (GPH) to meet fuel demand
• Includes fuel sending unit and fuel tank pressure sensor for accurate fuel level and pressure monitoring
• Equipped with a male rectangular connector, single connector quantity
• Inlet and outlet quick connect fittings sized 5/16 inch and 3/8 inch respectively
• Gasket included made from NBR material for secure sealing
• Housing constructed from durable POM material
• Designed for regular grade fuel pump applications
• Maximum pump pressure of 130.5 PSI and minimum of 87 PSI

About the Autobest Fuel Pump Module Assembly Line

The Autobest Fuel Pump Module Assembly product line focuses on delivering integrated fuel pump solutions that combine the pump, sending unit, and pressure sensor into a single module. This design simplifies installation and ensures compatibility with specific vehicle models, such as the Buick Grand Prix and Pontiac Regal. The F2520A model exemplifies this approach by providing a complete in-tank assembly engineered for consistent fuel delivery and accurate fuel system monitoring.

Detailed Product Description

The F2520A fuel pump module assembly is an in-tank unit manufactured in China, featuring a robust POM housing and NBR gasket material to withstand typical operating conditions. It operates with an average current draw of 8.5 amps and delivers fuel at a flow rate of 41 GPH, suitable for the fuel requirements of Buick Grand Prix and Pontiac Regal vehicles. The module includes a fuel sending unit and a fuel tank pressure sensor, enabling precise fuel level and pressure readings. The quick connect inlet and outlet fittings facilitate straightforward connection to the fuel lines, while the single male rectangular connector ensures proper electrical interfacing.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Buick Grand Prix and Pontiac Regal
• Restores accurate fuel level readings when sending unit malfunctions
• Resolves fuel pressure inconsistencies caused by faulty pressure sensors
• Eliminates fuel leaks by providing a new NBR gasket seal
• Improves engine performance by maintaining proper fuel flow and pressure

Installation Notes and Tips

The Autobest F2520A fuel pump module assembly is designed for direct replacement in compatible Buick Grand Prix and Pontiac Regal models. No special installation warnings are noted, but it is recommended to relieve fuel system pressure before removal. Ensure all electrical and fuel line connections are secure, especially the quick connect fittings and the male rectangular connector. The included gasket should be properly seated to prevent leaks. Mounting hardware is not included and may need to be reused from the original assembly.

Quality Assurance and Warranty

This fuel pump module assembly is available to order and meets regular grade standards for fuel delivery components. The product includes a gasket made from NBR material and a durable POM housing to ensure longevity under normal operating conditions. While specific warranty details are not provided, Autobest products typically adhere to industry quality standards for replacement fuel system parts.
