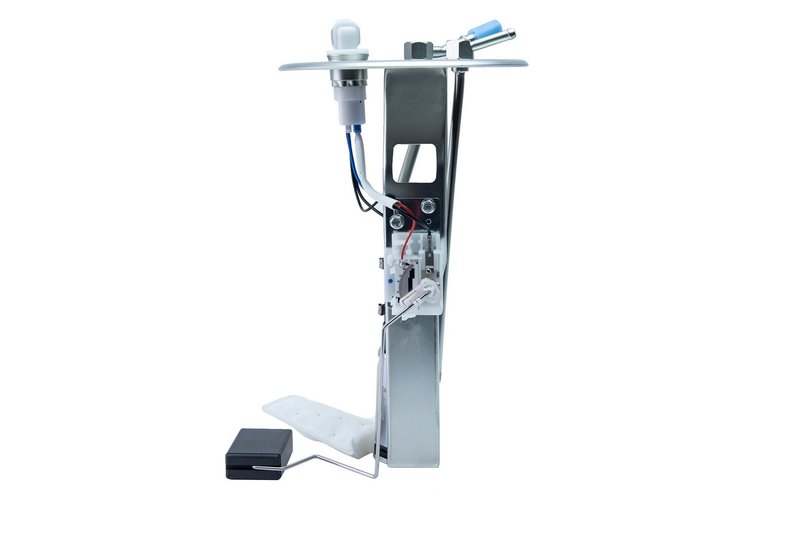

Autobest F2531A Fuel Pump and Sender Assembly

Reliable Fuel Pump and Sender Assembly for Chevrolet and Suzuki Vehicles

The Autobest F2531A fuel pump and sender assembly is designed to provide consistent fuel delivery for Chevrolet Grand Vitara, Suzuki Grand Vitara, and Suzuki Tracker models. Engineered for in-tank installation, this assembly ensures efficient fuel flow and accurate fuel level readings.

• Average current draw of 6 amps for efficient power consumption
• Fuel flow rating of 26.4 gallons per hour (GPH) to meet engine demands
• Includes fuel sending unit and NBR gasket for proper sealing
• Inlet strainer type with 0.433-inch inlet size to filter debris
• Single male rectangular connector for secure electrical connection
• Maximum pump pressure of 90 PSI and minimum of 80 PSI for stable fuel delivery
• Outlet hose barb fitting with 0.37-inch outlet size for easy hose attachment
• Compatible with Chevrolet Grand Vitara and Suzuki Grand Vitara and Tracker models

Product Features and Specifications

The Autobest F2531A is an in-tank fuel pump and sender assembly that combines fuel delivery and fuel level sensing in one unit. It operates with an average current draw of 6 amps and delivers a steady flow rate of 26.4 GPH, suitable for regular grade fuel systems. The assembly includes a fuel sending unit for accurate fuel gauge readings and a NBR gasket to ensure a tight seal within the fuel tank. The pump features a strainer inlet to prevent contaminants from entering the fuel system and a hose barb outlet for secure fuel line connection. The electrical connector is a single male rectangular type, simplifying installation and ensuring reliable connectivity. This unit is designed to maintain fuel pressure between 80 and 90 PSI, supporting consistent engine performance.

Compatible Vehicles and Applications

This fuel pump and sender assembly is compatible with the following vehicles:

• Chevrolet Grand Vitara
• Suzuki Grand Vitara
• Suzuki Tracker

It is ideal for replacing worn or failing fuel pumps in these models, restoring proper fuel delivery and fuel level accuracy.

Common Issues Addressed by the F2531A Fuel Pump

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty sending unit
• Low fuel pressure resulting in poor engine performance or hesitation
• Fuel pump noise or failure from worn internal components
• Fuel contamination due to damaged or missing inlet strainer

Installation Notes and Tips

The Autobest F2531A is designed for in-tank installation and includes a NBR gasket for proper sealing. No mounting hardware is included, so ensure existing hardware is in good condition or replaced as needed. The single male rectangular connector simplifies wiring connections. No special installation warnings are noted, but it is recommended to follow vehicle-specific service manuals for safe fuel system handling and installation procedures.

Quality Assurance and Warranty

Manufactured by Autobest, this fuel pump and sender assembly meets regular grade standards and is available to order. The product is made in China and includes a gasket or seal to ensure proper installation. While specific warranty details are not provided, Autobest products typically come with manufacturer-backed quality assurance. Verify warranty terms with the supplier or manufacturer prior to installation.
