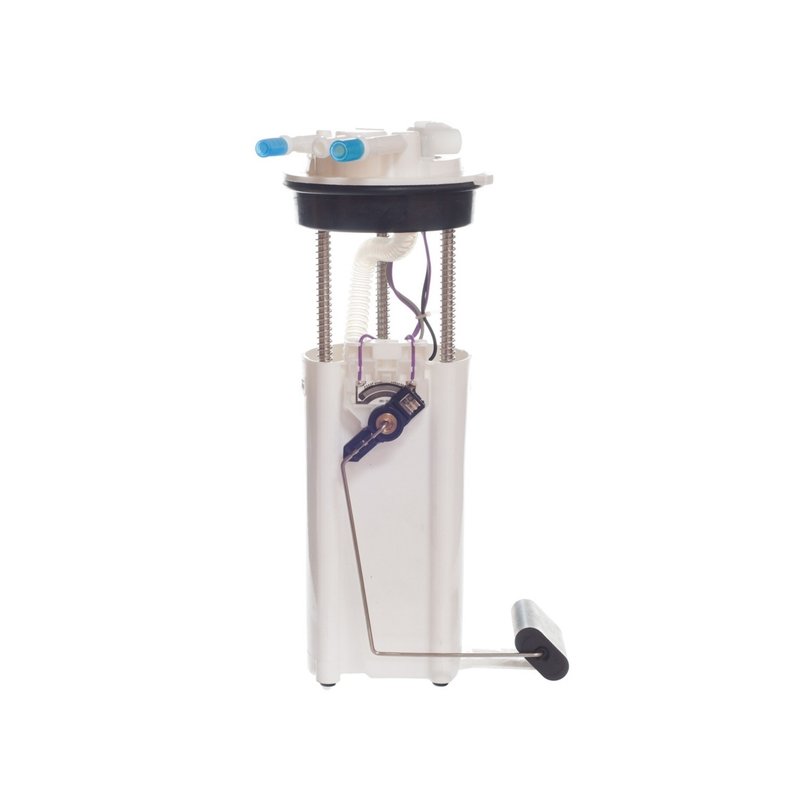

Autobest F2545A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2545A

The Autobest Fuel Pump Module Assembly F2545A is designed for reliable fuel delivery in select GM vehicles. Engineered to meet performance standards, this in-tank fuel pump module is compatible with Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon models.

• Average current draw of 7.5 amps for efficient operation
• Fuel flow rating of 38 gallons per hour (GPH)
• Includes fuel sending unit and NBR gasket for proper sealing
• Constructed with durable POM housing material
• Features both internal and external strainers for fuel filtration
• Maximum pump pressure of 130 PSI and minimum of 70 PSI
• Single male rectangular connector with quick connect outlet
• Designed as an in-tank assembly for direct installation

About the Autobest Fuel Pump Module Assembly Product Line

The Autobest Fuel Pump Module Assembly line focuses on performance-grade fuel delivery components tailored for specific vehicle applications. This product line integrates essential elements such as the fuel pump, sending unit, and sealing components into a single module, ensuring compatibility and streamlined installation. The F2545A model exemplifies this approach by combining reliable flow rates and pressure specifications suitable for Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon vehicles.

Detailed Product Description

The F2545A fuel pump module assembly operates with an average current draw of 7.5 amps and delivers a consistent fuel flow of 38 GPH, supporting optimal engine performance. Its POM housing material offers durability within the fuel tank environment. The module includes both internal and external strainers to protect the fuel system from contaminants, although it does not include a fuel filter. The assembly comes with a fuel sending unit and an NBR gasket to ensure proper sealing and accurate fuel level readings. The single male rectangular connector and quick connect outlet simplify electrical and fuel line connections. Designed for in-tank installation, this module maintains fuel pressure between 70 and 130 PSI, meeting the demands of the specified GM models.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Addresses inaccurate fuel level readings due to faulty sending units
• Eliminates fuel delivery interruptions from clogged or damaged strainers
• Restores proper fuel system operation after tank component wear or damage

Installation Notes and Tips

This fuel pump module assembly is designed for direct in-tank installation with no special warnings. Ensure the fuel tank is properly drained and depressurized before removal. Verify connector orientation and secure the NBR gasket to prevent leaks. Since mounting hardware is not included, reuse existing components or source compatible hardware as needed. Confirm electrical connections match the male rectangular connector and that the quick connect outlet is properly seated for secure fuel line attachment.

Quality Assurance and Warranty

The Autobest Fuel Pump Module Assembly F2545A is manufactured to meet performance-grade standards and is available to order with consistent quality control. It includes essential components such as the fuel sending unit and gasket to ensure reliable operation. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
