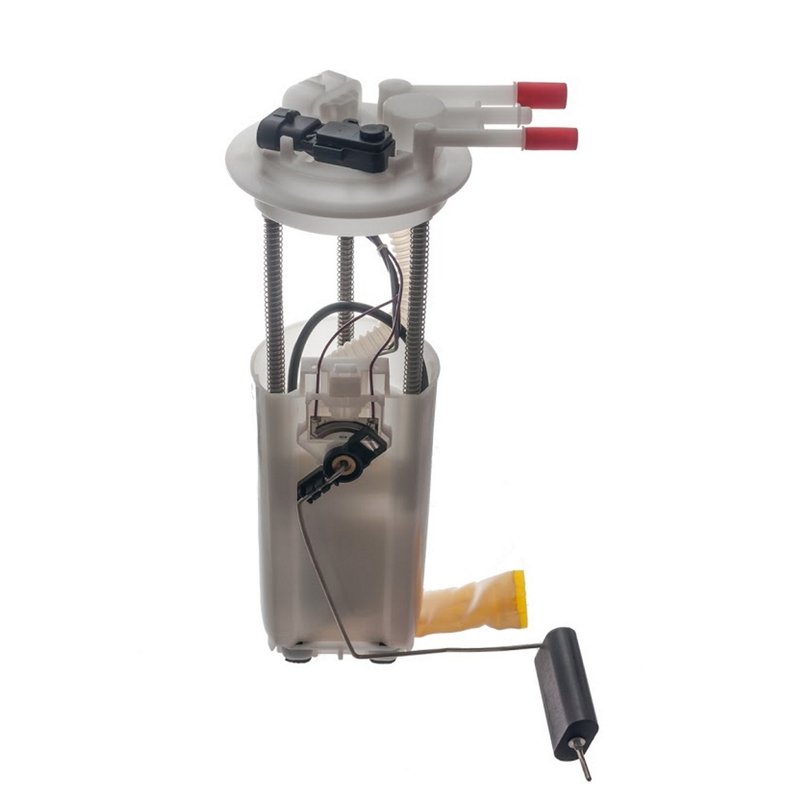

Autobest F2547A Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Buick and Pontiac Models

The Autobest F2547A fuel pump module assembly is designed to provide consistent fuel delivery for select Buick and Pontiac vehicles. Engineered for in-tank installation, this module supports efficient fuel flow and pressure to maintain optimal engine performance.

• Average current draw of 9 amps for efficient power consumption
• Fuel flow rating of 41 gallons per hour (GPH) to meet engine demands
• Includes fuel sending unit and fuel tank pressure sensor for accurate fuel level and pressure monitoring
• Equipped with a male rectangular connector and one quick connect outlet (3/8 inch)
• Constructed with durable POM housing and NBR gasket for reliable sealing
• Designed for in-tank installation with a strainer inlet size of 0.362 inches
• Compatible with Buick Bonneville, Pontiac Park Avenue, and Pontiac Riviera models

Technical Details and Specifications

The Autobest F2547A fuel pump module assembly operates within a pressure range of 87 to 116 PSI, ensuring stable fuel delivery under varying engine loads. Its average flow rating of 41 GPH supports the fuel requirements of regular grade engines. The module features a single male rectangular connector and a quick connect outlet for straightforward electrical and fuel line connections. The included fuel sending unit and fuel tank pressure sensor provide integrated monitoring capabilities, eliminating the need for separate components. The housing is made from POM material, known for its strength and chemical resistance, while the NBR gasket ensures a secure seal to prevent leaks.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Buick Bonneville
• Pontiac Park Avenue
• Pontiac Riviera

It is designed to replace the original in-tank fuel pump module, restoring proper fuel delivery and sensor functionality.

Common Issues Addressed by the Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sending unit
• Fuel pressure irregularities causing engine performance issues
• Fuel leaks from worn or damaged seals
• Electrical connector corrosion or failure

Installation Notes and Tips

The Autobest F2547A is an in-tank fuel pump module assembly designed for direct replacement. No special installation warnings are noted, but it is recommended to follow vehicle-specific service manuals for safe removal and installation. Ensure all electrical connections are secure and the NBR gasket is properly seated to prevent leaks. Since mounting hardware is not included, reuse existing hardware or source compatible fasteners as needed.

Quality Assurance and Warranty

Manufactured in China, the Autobest F2547A fuel pump module assembly meets regular grade standards for durability and performance. The product is available to order and includes a gasket and fuel tank pressure sensor for comprehensive functionality. Warranty details should be confirmed with the distributor or retailer, as they may vary.
