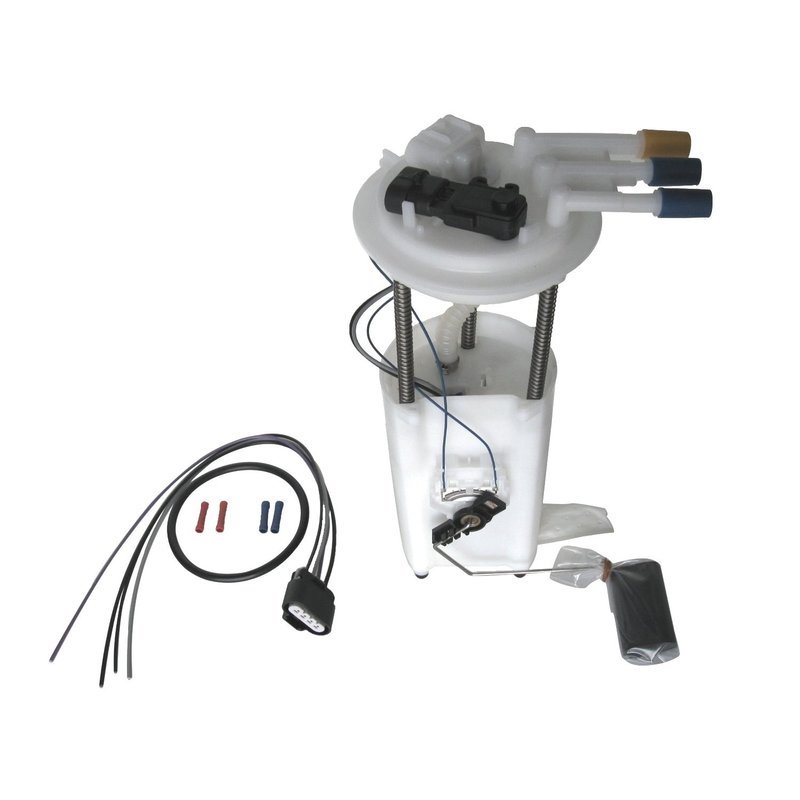

Autobest F2548A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2548A

The Autobest Fuel Pump Module Assembly F2548A is designed for reliable fuel delivery in select Buick, Oldsmobile, and Pontiac vehicles. This in-tank fuel pump module supports consistent fuel pressure and flow, ensuring optimal engine performance for models like the Bonneville, Century, Grand Prix, Intrigue, and Regal.

• Average current draw: 7 Amps
• Average flow rating: 33 gallons per hour (GPH)
• Includes fuel sending unit and fuel tank pressure sensor
• Connector: 1 male rectangular quick connect
• Inlet size: 5/16 inch, outlet size: 3/8 inch, both quick connect
• Gasket/seal included, made of NBR material
• Housing material: POM (polyoxymethylene)
• Maximum pump pressure: 145 PSI, minimum pump pressure: 87 PSI
• Grade type: Regular, in-tank installation

Detailed Product Description

The Autobest Fuel Pump Module Assembly F2548A is engineered to meet the fuel delivery requirements of specific GM vehicles, including Buick Bonneville, Oldsmobile Intrigue, and Pontiac Grand Prix. This module integrates a fuel pump, sending unit, and fuel tank pressure sensor into a single assembly, simplifying replacement and ensuring compatibility. The pump operates with an average current draw of 7 amps and delivers a steady flow rate of 33 GPH, maintaining fuel pressure between 87 and 145 PSI. The module features a durable POM housing and includes a NBR gasket to ensure a secure seal within the fuel tank. The connector is a single male rectangular quick connect, designed for straightforward installation without the need for additional mounting hardware.

Fuel Pump Module Assembly Product Line

The Autobest Fuel Pump Module Assembly line focuses on integrated fuel delivery solutions that combine multiple components into one unit. This approach reduces installation complexity and improves reliability by ensuring all parts are designed to work together. The F2548A model exemplifies this by including the fuel sending unit and fuel tank pressure sensor, which are critical for accurate fuel level readings and proper fuel system operation in compatible Buick, Oldsmobile, and Pontiac vehicles.

Common Applications and Issues Addressed

• Restores proper fuel pressure and flow in Buick Bonneville and Pontiac Grand Prix
• Resolves fuel gauge inaccuracies caused by faulty sending units
• Addresses fuel delivery interruptions in Oldsmobile Intrigue and Regal models
• Eliminates engine stalling or hesitation due to inconsistent fuel supply
• Replaces worn or damaged in-tank fuel pump modules to maintain engine performance

Installation Notes and Tips

This fuel pump module assembly is designed for in-tank installation with quick connect inlet and outlet fittings for ease of connection. No mounting hardware is included, so retain original components or source separately if needed. The gasket included is made of NBR material, providing a reliable seal to prevent leaks. Ensure the electrical connector matches the male rectangular design and verify compatibility with your vehicle’s wiring harness. No special installation warnings are noted, but standard safety precautions when working with fuel systems should be followed.

Quality Assurance and Warranty

The Autobest Fuel Pump Module Assembly F2548A is manufactured to meet regular grade standards and is available to order with confidence in its build quality. It includes essential components such as the fuel sending unit and pressure sensor to maintain system integrity. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure dependable operation in compatible Buick, Oldsmobile, and Pontiac vehicles.
