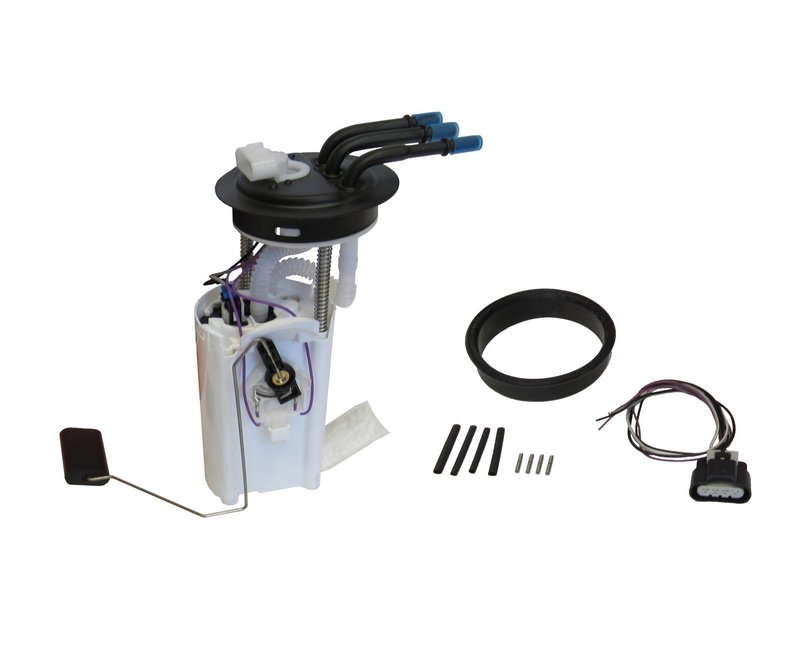

Autobest F2565A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2565A

The Autobest Fuel Pump Module Assembly F2565A is designed for reliable fuel delivery in select Chevrolet and GMC trucks. Engineered for in-tank installation, this module supports models like the Chevrolet Avalanche 2500, Suburban 2500, and GMC Yukon XL 2500, ensuring consistent fuel flow and pressure.

• Average current draw of 8.5 amps for efficient operation
• Fuel flow rating of 41 gallons per hour (GPH)
• Includes fuel sending unit and fuel tank pressure sensor
• Inlet and outlet quick connect fittings (5/16" inlet, 3/8" outlet)
• Constructed with durable POM housing material
• Compatible with negative ground electrical systems
• Maximum pump pressure of 110 PSI and minimum of 90 PSI
• Connector: single male rectangular type
• Designed for in-tank installation with no mounting hardware included

Technical Details and Specifications

The Autobest F2565A fuel pump module assembly is built to meet the fuel delivery demands of heavy-duty Chevrolet Avalanche 2500, Suburban 2500, and GMC Yukon XL 2500 trucks. Its POM housing material offers resistance to fuel corrosion and wear, while the included fuel sending unit and fuel tank pressure sensor provide accurate fuel level and pressure monitoring. The module operates at an average current draw of 8.5 amps and delivers a steady flow rate of 41 GPH, maintaining fuel pressure between 90 and 110 PSI to support engine performance.

The module features a single male rectangular connector and quick connect fittings for both inlet and outlet lines, simplifying installation and ensuring secure connections. This in-tank fuel pump assembly is designed without a fuel filter or gasket included, so additional components may be required depending on your vehicle's setup.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Avalanche 2500
• Chevrolet Suburban 2500
• GMC Yukon XL 2500

Use the Autobest F2565A to address fuel delivery issues in these models, ensuring proper engine operation and fuel system reliability.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sending unit
• Low fuel pressure causing engine performance problems
• Fuel tank pressure sensor malfunctions affecting emissions control
• Electrical connector or wiring issues within the fuel pump module

Installation Notes and Tips

The Autobest F2565A is designed for in-tank installation and includes the pump and module assembly. It does not come with mounting hardware or gaskets, so ensure you have the necessary components before beginning installation. The quick connect inlet and outlet fittings simplify hose connections, but verify compatibility with your vehicle's fuel lines. No special installation warnings are noted, but always follow manufacturer guidelines and safety precautions when working with fuel system components.

Quality Assurance and Warranty

Manufactured in China, the Autobest F2565A fuel pump module assembly meets regular grade standards for fuel system components. It is available to order and backed by Autobest's quality control processes. Warranty details should be confirmed at the point of purchase, as coverage may vary.
