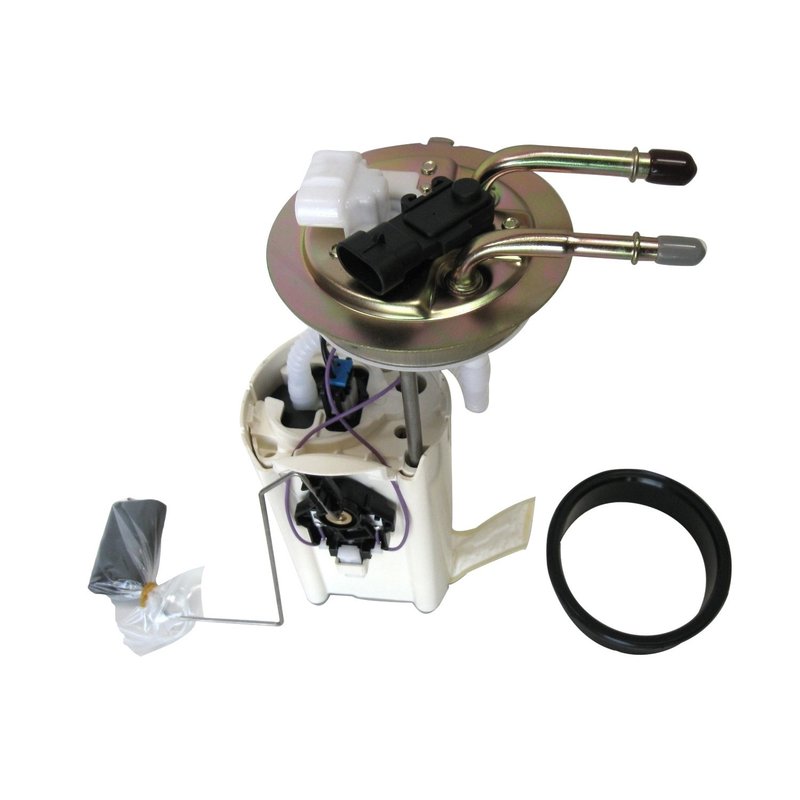

Autobest F2567A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2567A

The Autobest Fuel Pump Module Assembly F2567A is engineered for reliable fuel delivery in select GM vehicles. Designed as an in-tank unit, it integrates essential components to maintain optimal fuel system performance for Cadillac, Chevrolet, and GMC models.

• Average current draw of 8.5 amps for efficient operation
• Fuel flow rating of 210 gallons per hour (GPH)
• Includes fuel sending unit and fuel tank pressure sensor
• Equipped with both internal and external strainers for enhanced filtration
• Compatible with quick connect outlet (3/8 inch) and male rectangular connector
• Constructed with durable POM housing and NBR gasket material
• Designed for in-tank installation with no mounting hardware included
• Performance grade type ensuring consistent fuel pressure between 80 and 109 PSI

Detailed Product Description

The Autobest F2567A fuel pump module assembly is a performance-grade component designed to meet the fuel delivery demands of vehicles such as the Cadillac Escalade ESV, Escalade EXT, Chevrolet Avalanche 1500, Suburban 1500, and GMC Yukon XL 1500. This in-tank fuel pump module features a robust POM housing and includes a fuel sending unit and fuel tank pressure sensor, providing accurate fuel level readings and pressure monitoring. The module supports an average flow rating of 210 GPH and operates at an average current draw of 8.5 amps, ensuring efficient fuel delivery under various driving conditions.

Its design incorporates both internal and external strainers to protect the fuel system from contaminants, while the included NBR gasket ensures a secure seal within the fuel tank. The module’s quick connect outlet and male rectangular connector simplify electrical and fuel line connections, facilitating a straightforward installation process.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following GM vehicles:

• Cadillac Escalade ESV and Escalade EXT
• Chevrolet Avalanche 1500 and Suburban 1500
• GMC Yukon XL 1500

It is designed to replace the original equipment fuel pump module, restoring proper fuel pressure and flow for smooth engine performance.

Common Issues Addressed by the F2567A Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sending unit
• Fuel tank pressure sensor malfunctions affecting engine performance
• Reduced fuel pressure causing engine hesitation or stalling
• Contaminant ingress leading to clogged fuel filters or injectors

Installation Notes and Tips

The Autobest F2567A is designed for in-tank installation and includes the necessary gasket for sealing. No mounting hardware is included, so reusing existing hardware or sourcing compatible fasteners is recommended. The module features a male rectangular connector and a quick connect outlet for fuel lines, which should be securely connected to prevent leaks. Ensure the fuel tank is properly depressurized before removal and installation to avoid fuel spillage. No special installation warnings are noted, but following vehicle-specific service manuals is advised for safe and correct installation.

Quality Assurance and Warranty

Manufactured in China, the Autobest F2567A fuel pump module assembly meets performance-grade standards for durability and reliability. It is available to order and backed by Autobest’s quality control processes. Warranty coverage details should be confirmed at the time of purchase, as they may vary by distributor or retailer.
