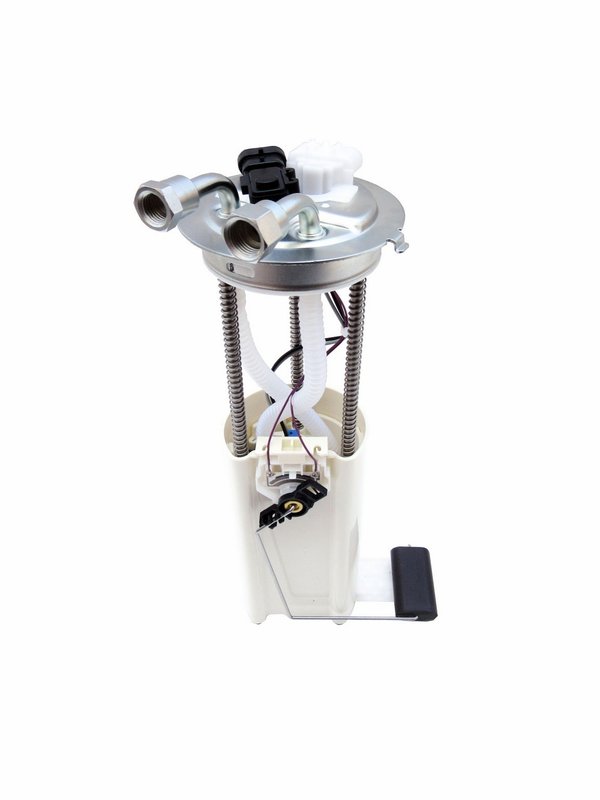

Autobest F2595A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2595A

The Autobest Fuel Pump Module Assembly F2595A is designed for reliable fuel delivery in Chevrolet and GMC vans. Engineered to meet the specific requirements of Express and Savana models, this in-tank fuel pump module ensures consistent performance and compatibility.

• Average current draw of 9 amps for efficient operation
• Fuel flow rating of 42.2 gallons per hour (GPH)
• Includes fuel sending unit and fuel tank pressure sensor
• Equipped with a male rectangular connector for secure electrical connection
• Maximum pump pressure of 100 PSI and minimum of 80 PSI
• Includes NBR gasket/seal for proper sealing
• Constructed with durable POM housing material
• Inlet size of 0.433 inches with strainer type inlet
• Threaded outlet (M16 x 10.5) with one outlet port

Technical Details and Compatibility

The Autobest F2595A fuel pump module assembly is specifically compatible with Chevrolet Express 1500, 2500, 3500 and GMC Savana 1500, 2500, 3500 models. This module is an in-tank design, which helps maintain optimal fuel pressure between 80 and 100 PSI, supporting engine performance and fuel efficiency. The included fuel sending unit and tank pressure sensor provide accurate fuel level readings and pressure monitoring, essential for proper vehicle operation.

Applications and Problem Solving

This fuel pump module assembly is used to replace faulty or worn fuel pumps in compatible Chevrolet and GMC vans. It addresses several common issues:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty sending unit
• Loss of fuel pressure affecting engine performance
• Fuel pump noise or overheating from inefficient operation
• Leaks or poor sealing from damaged gaskets or seals

Installation Notes and Tips

Installation of the Autobest F2595A fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized and battery disconnected before starting. The module features a single male rectangular connector and a threaded outlet for straightforward electrical and fuel line connections. No mounting hardware is included, so reuse existing components or source compatible hardware. The included NBR gasket should be properly seated to prevent leaks.

Quality Assurance and Warranty

Manufactured in China, the Autobest F2595A meets regular grade standards for fuel pump modules. It is available to order and includes a fuel sending unit, pressure sensor, and gasket for a complete replacement solution. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure reliable operation in Chevrolet Express and GMC Savana vans.
