Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

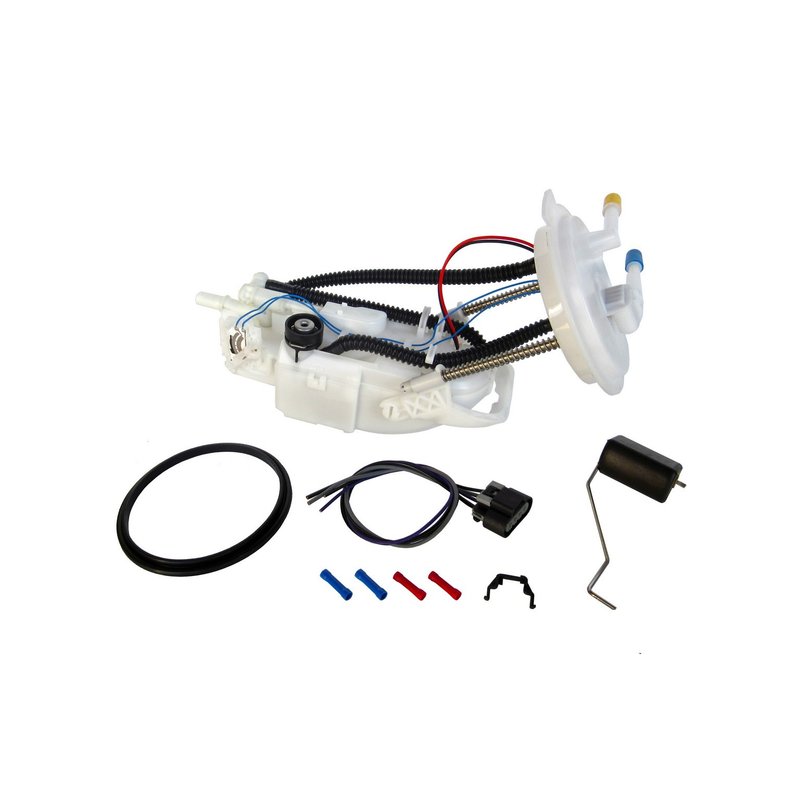

Autobest F2616A Fuel Pump Module Assembly - Right
| Brand | Autobest F2616A |
|---|---|
| Position | Right |
| Average Current Draw(A) | 10 |
| Average Flow Rating(GPH) | 36.6 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Racetrack |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket or Seal Included | Yes |
| Grade Type | Performance |
| Housing Material | Pom |
| In Tank or External | In tank |
| Inlet Size | 0.275 |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 62.35 |
| Minimum Pump Pressure (PSI) | 59.45 |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Outlet Size | 0.374 |
| Outlet Type | Quick connect |
| Package Contents | Pump & module |
| Package Height (in) | 8.46 |
| Package Length (in) | 14.17 |
| Package Width (in) | 11.02 |
| Product Height (in) | 8.01 |
| Product Length (in) | 13.98 |
| Product line | Fuel Pump Module Assembly |
| Fits | Cadillac · 10 vehicles |
Complete module assembly. Includes the pump, filter, sending unit, gasket, and regulator.
Ethanol-tolerant design. Built for modern fuel systems with performance-grade components.
Turbine pump. Delivers steady fuel flow with a quick-connect outlet.
Cross-references Airtex Fuel Pumps E3605M, Delphi FG1938 and Nissens 67509 for the same application. See all 15.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Cadillac SRX
The Autobest F2616A fuel pump module assembly is built for direct replacement service on select Cadillac SRX applications. It includes the components needed for a complete fuel delivery module installation and is engineered with ethanol-tolerant materials for modern fuel systems.
Key Features
- Fuel pump module assembly with in-tank turbine pump design
- Includes fuel filter, fuel sending unit, regulator, strainer, and gasket/seal
- 12V electrical system with male connector, racetrack shape, and 4-pin terminal design
- Average flow rating of 36.6 GPH and average current draw of 10A
- Maximum pump pressure of 62.35 PSI for fuel system service requirements
- Performance-grade construction with POM housing material
- Built with ethanol tolerance for today’s fuel blends
- Limited lifetime warranty from Autobest
Product Details
Autobest Fuel Pump Module Assembly F2616A is a complete in-tank fuel delivery unit for 2004-2007 Cadillac SRX and 2008-2009 Cadillac SRX, right side applications. It is supplied as a fuel pump and module assembly with an internal strainer, quick-connect outlet, and integrated fuel level sending unit for accurate fuel system replacement. This part cross-references Airtex E3605M and Delphi FG1938 for the same application. The F2616A is a practical choice when replacing a worn fuel pump module on Cadillac SRX models that need restored fuel pressure and fuel level signal performance.
Common Problems This Part Can Address
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Fuel gauge readings that no longer track tank level correctly
- Fuel pump noise or reduced pump output
- Fuel system issues related to a failing module, regulator, or strainer
Installation Notes
Verify vehicle year, model, and right-side application before ordering. This module uses a male connector with a racetrack connector shape and a quick-connect outlet. Confirm tank access, connector style, and fuel line routing against the original unit before installation. The assembly is designed for in-tank service and includes the fuel pump module components needed for replacement.
Quality Assurance
Autobest states that only top-grade components are used and that each pump is tested throughout manufacturing. The F2616A is backed by a limited lifetime warranty and is built for ethanol-tolerant fuel system service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Cadillac | SRX | 4.6L | V8 | Right | Fuel Pump Module Assembly |
| 2008 | Cadillac | SRX | 4.6L | V8 | Right | Fuel Pump Module Assembly |
| 2007 | Cadillac | SRX | 4.6L | V8 | N/A | Includes Fuel Pump, Fuel Pressure Regulator, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2007 | Cadillac | SRX | 3.6L | V6 | N/A | Includes Fuel Pump, Fuel Pressure Regulator, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2006 | Cadillac | SRX | 4.6L | V8 | N/A | Includes Fuel Pump, Fuel Pressure Regulator, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2006 | Cadillac | SRX | 3.6L | V6 | N/A | Includes Fuel Pump, Fuel Pressure Regulator, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2005 | Cadillac | SRX | 4.6L | V8 | N/A | Includes Fuel Pump, Fuel Pressure Regulator, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2005 | Cadillac | SRX | 3.6L | V6 | N/A | Includes Fuel Pump, Fuel Pressure Regulator, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2004 | Cadillac | SRX | 4.6L | V8 | N/A | Includes Fuel Pump, Fuel Pressure Regulator, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2004 | Cadillac | SRX | 3.6L | V6 | N/A | Includes Fuel Pump, Fuel Pressure Regulator, Fuel Reservoir, Fuel Strainer and Tank Seal |
| No rows match your filter. | ||||||
