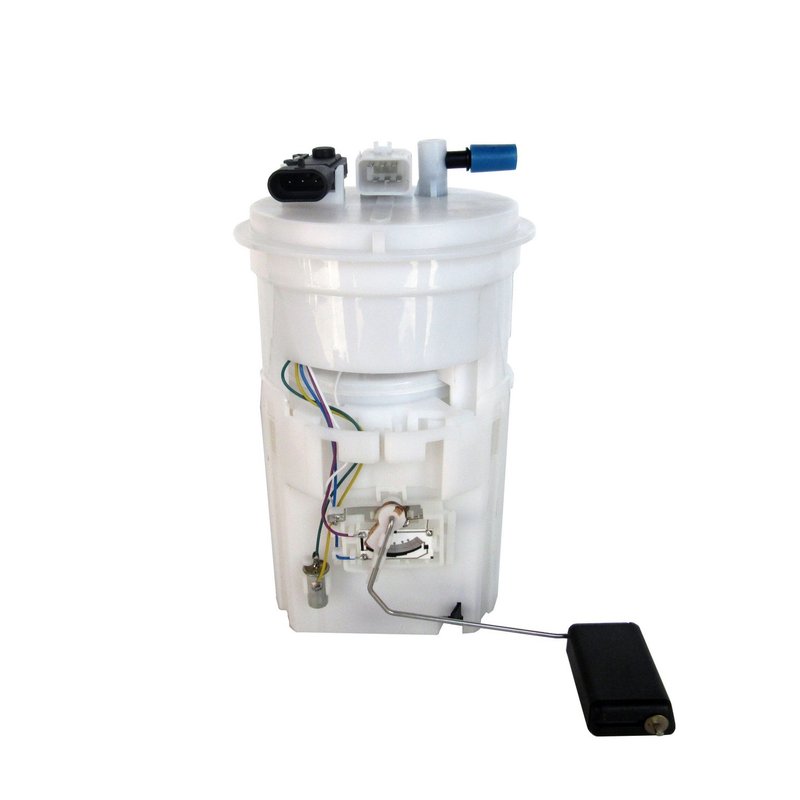

Autobest F2623A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2623A

The Autobest Fuel Pump Module Assembly F2623A is designed specifically for Chevrolet Aveo, Aveo5, Pontiac Wave, and Wave5 models. This in-tank fuel pump module ensures reliable fuel delivery with integrated components to maintain optimal engine performance.

• Average current draw of 6.8 amps for efficient power consumption
• Fuel flow rating of 30.4 gallons per hour (GPH)
• Includes fuel filter, fuel sending unit, and fuel tank pressure sensor
• Male rectangular connector with one connection point
• Internal strainer inlet type with 0.433 inch inlet size
• Maximum pump pressure of 56.5 PSI and minimum pressure of 53.6 PSI
• Constructed with POM housing material and FKM gasket material
• Negative ground electrical system compatibility
• Quick connect outlet type with one 5/16 inch outlet

About the Autobest Fuel Pump Module Assembly Line

The Autobest Fuel Pump Module Assembly line offers integrated fuel delivery solutions combining the pump, sending unit, and pressure sensor into a single module. This design simplifies installation and ensures consistent fuel system performance. The F2623A model is part of this line, providing a regular grade type module engineered for compatibility with select Chevrolet and Pontiac vehicles.

Detailed Product Description

The F2623A fuel pump module assembly is an in-tank unit engineered to deliver precise fuel flow and pressure for Chevrolet Aveo and Pontiac Wave series vehicles. Its average flow rating of 30.4 GPH supports steady fuel supply under various driving conditions. The module includes a fuel filter to protect the fuel system from contaminants, a fuel sending unit for accurate fuel level readings, and a fuel tank pressure sensor to monitor system pressure. The pump operates within a pressure range of 53.6 to 56.5 PSI, ensuring consistent fuel delivery. The housing is made from durable POM material, while the gasket uses FKM for reliable sealing. The module features a single male rectangular connector and a quick connect outlet for straightforward electrical and fuel line connections.

Common Applications and Problem Resolution

• Restores proper fuel delivery in Chevrolet Aveo and Pontiac Wave models
• Resolves fuel pressure inconsistencies causing engine performance issues
• Replaces faulty fuel sending units affecting fuel gauge accuracy
• Addresses fuel contamination problems with integrated fuel filter
• Corrects fuel tank pressure sensor failures impacting engine management

Installation Notes and Tips

The Autobest F2623A is designed for in-tank installation with no special mounting hardware included. It features a single male rectangular connector and quick connect outlet for ease of connection. No specific installation warnings are noted, but proper handling of the fuel system and adherence to vehicle manufacturer guidelines are recommended. Ensure the electrical system is negative ground compatible before installation.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet regular grade standards and is available to order. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure reliable operation in compatible Chevrolet and Pontiac vehicles.
