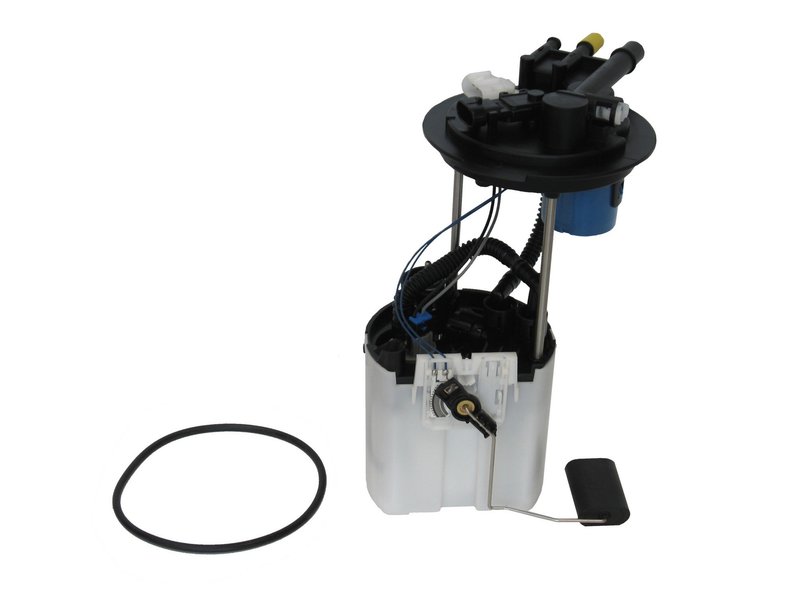

Autobest F2680A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2680A

The Autobest Fuel Pump Module Assembly F2680A is engineered for reliable fuel delivery in select Buick, Chevrolet, and Pontiac vehicles. Designed as an in-tank unit, this module integrates multiple components to ensure consistent fuel flow and pressure for optimal engine performance.

• Average current draw of 7.4 amps for efficient power consumption
• Fuel flow rating of 31.4 gallons per hour (GPH)
• Includes fuel filter, fuel sending unit, and fuel tank pressure sensor
• Connector: single male racetrack design for secure electrical connection
• Maximum pump pressure of 64 PSI and minimum pressure of 59 PSI
• Housing made from durable POM material with NBR gasket for reliable sealing
• Internal strainer inlet type with 0.433 inch inlet size
• Quick connect outlet with 3/8 inch size for easy installation
• Negative ground compatible and designed for performance-grade applications

Detailed Product Description

The Autobest F2680A fuel pump module assembly is a performance-grade replacement part designed specifically for in-tank installation. It features an internal strainer inlet and a quick connect outlet to facilitate efficient fuel flow and filtration. The module includes a fuel filter, sending unit, and tank pressure sensor, providing a comprehensive solution for fuel delivery and monitoring. Constructed with a POM housing and NBR gasket, this assembly offers durability and reliable sealing to prevent leaks. The single male racetrack connector ensures a secure electrical connection, while the pump operates within a pressure range of 59 to 64 PSI, suitable for maintaining consistent fuel pressure in compatible vehicles.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following makes and models:

• Buick Allure
• Chevrolet Impala, Monte Carlo
• Pontiac Grand Prix, LaCrosse

It is designed to replace the original fuel pump module in these vehicles, restoring proper fuel delivery and system functionality.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Erratic fuel gauge readings due to faulty sending unit
• Low fuel pressure causing engine performance issues
• Fuel leaks from worn or damaged seals
• Malfunctioning fuel tank pressure sensor affecting emissions control

Installation Notes and Tips

The Autobest F2680A is designed for direct replacement with no special installation warnings. Ensure the vehicle’s negative ground system is properly connected before installation. The quick connect outlet and single male racetrack connector simplify the electrical and fuel line connections. Although mounting hardware is not included, the module fits into the existing fuel tank mounting points. Verify all seals and gaskets are properly seated to prevent leaks.

Quality Assurance and Warranty

Autobest provides this fuel pump module assembly with a focus on performance and durability. The product is available to order and meets industry standards for fuel delivery components. It includes a gasket made from NBR material to ensure a reliable seal. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
