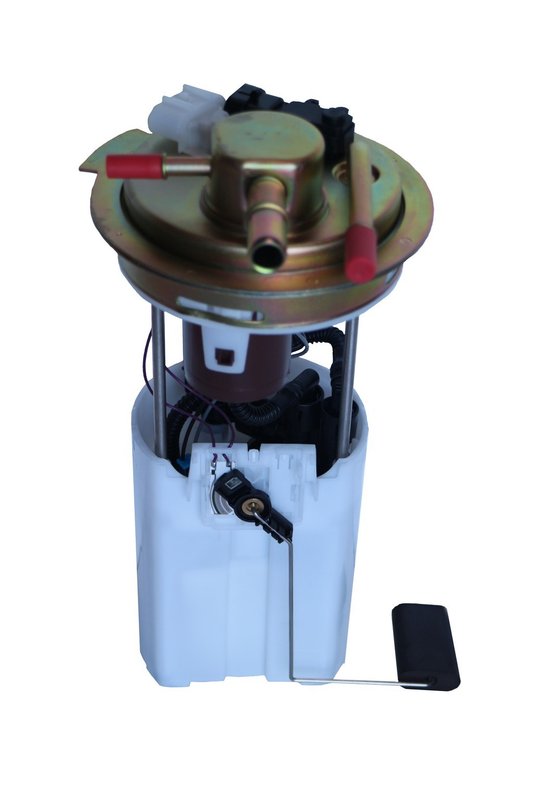

Autobest F2689A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2689A

The Autobest Fuel Pump Module Assembly F2689A is engineered for reliable fuel delivery in Chevrolet Express and GMC Savana vans. Designed as an in-tank unit, this fuel pump module ensures consistent fuel flow and pressure for optimal engine performance.

• Average current draw of 9 amps for efficient power consumption
• Fuel flow rating of 50 gallons per hour (GPH) to meet performance demands
• Includes fuel filter, sending unit, and fuel tank pressure sensor for comprehensive fuel system integration
• Constructed with durable POM housing and NBR gasket for long-lasting sealing
• Compatible with Chevrolet Express 1500, 2500, 3500 and GMC Savana 1500, 2500, 3500 models
• Features a male rectangular connector with one outlet quick connect fitting (3/8 inch)
• Designed for internal strainer inlet type with 0.433 inch inlet size
• Maximum pump pressure of 59.45 PSI and minimum pressure of 56.55 PSI for stable fuel delivery

Detailed Product Description

The Autobest F2689A fuel pump module assembly is a performance-grade component designed to replace the original fuel pump in select Chevrolet Express and GMC Savana vans. This in-tank fuel pump module integrates multiple components including the fuel filter, sending unit, and fuel tank pressure sensor, providing a complete solution for fuel delivery and monitoring. The pump operates at an average current draw of 9 amps and delivers a steady flow rate of 50 GPH, supporting the fuel demands of your vehicle's engine. Its POM housing material offers chemical resistance and durability, while the included NBR gasket ensures a secure seal to prevent leaks. The module features a male rectangular connector and a quick connect outlet for straightforward electrical and fuel line connections. With a maximum pump pressure near 59.45 PSI, it maintains consistent fuel pressure for smooth engine operation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Express 1500, 2500, 3500
• GMC Savana 1500, 2500, 3500

It is designed to address common fuel system issues such as inconsistent fuel pressure, fuel delivery interruptions, and faulty fuel level readings.

Common Issues Addressed by This Fuel Pump Module

• Engine stalling or hesitation due to insufficient fuel flow
• Erratic fuel gauge readings caused by a faulty sending unit
• Fuel leaks from worn or damaged seals and gaskets
• Loss of fuel pressure affecting engine performance
• Fuel pump failure resulting in no-start conditions

Installation Notes and Tips

The Autobest F2689A fuel pump module assembly is designed for direct replacement and requires no special installation warnings. Ensure the fuel tank is properly drained and cleaned before installation. Verify connector orientation and secure all electrical and fuel line connections. Use the included NBR gasket to maintain a proper seal and prevent leaks. Although mounting hardware is not included, the module fits the original mounting points of compatible Chevrolet Express and GMC Savana models.

Quality Assurance and Warranty

Manufactured in China, the Autobest F2689A meets performance-grade standards for fuel pump modules. The product is available to order and includes a fuel filter, sending unit, pressure sensor, and gasket for a comprehensive replacement. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure reliable operation within the specified vehicle applications.
